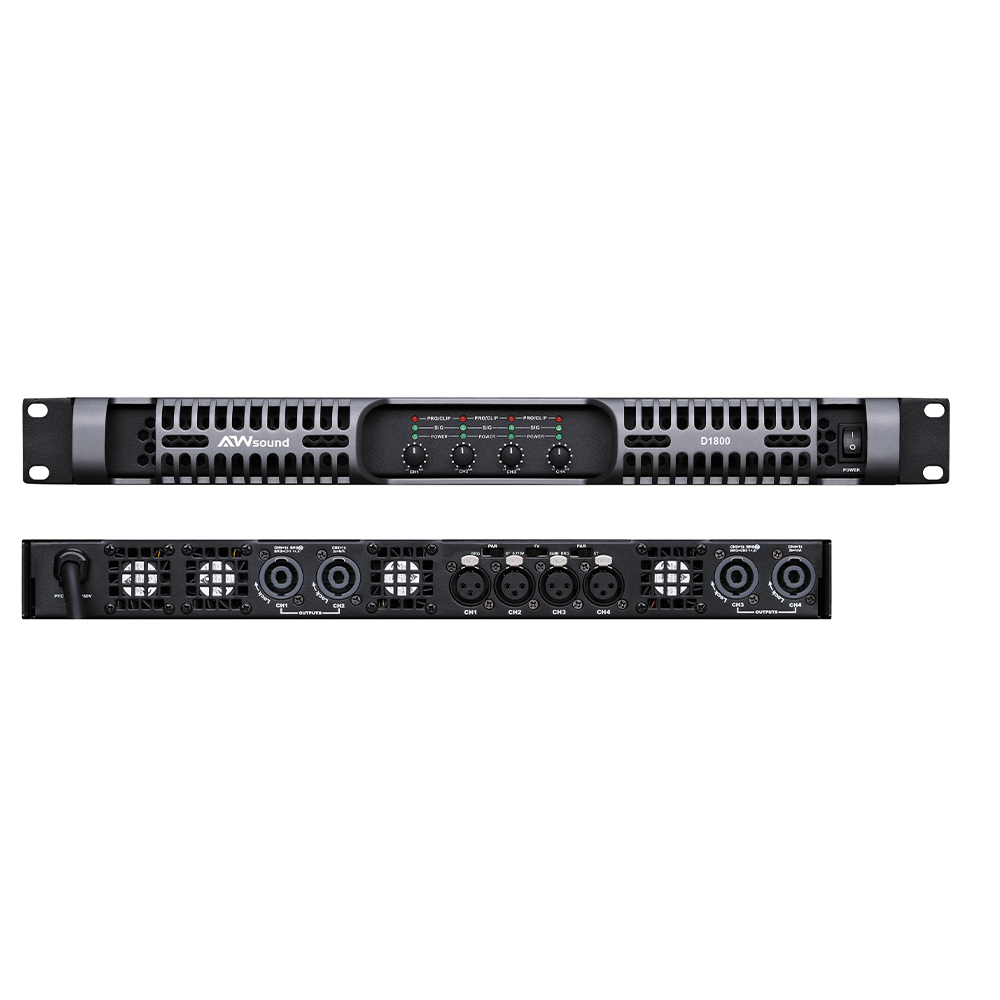

D1800 4 channel class d digital audio DJ power amplifier 32000W

D1800 is a 4 channel, class d digital power amplifier designed for various venues, such as touring, theater, nightclub, stadiums, etc.

D1800 digital audio amplifier output stage adapt high-density Class-D technology enable to design a very powerful amplifier in a very compact and lightweight package. A highly efficient power supply with power factor correction (PFC) technology reduces additional weight and allows universal mains operation. It provides stable power to the speaker regardless of fluctuations in the AC line voltage, eliminating specification limitations one the market and power supplies and related reliability issues.

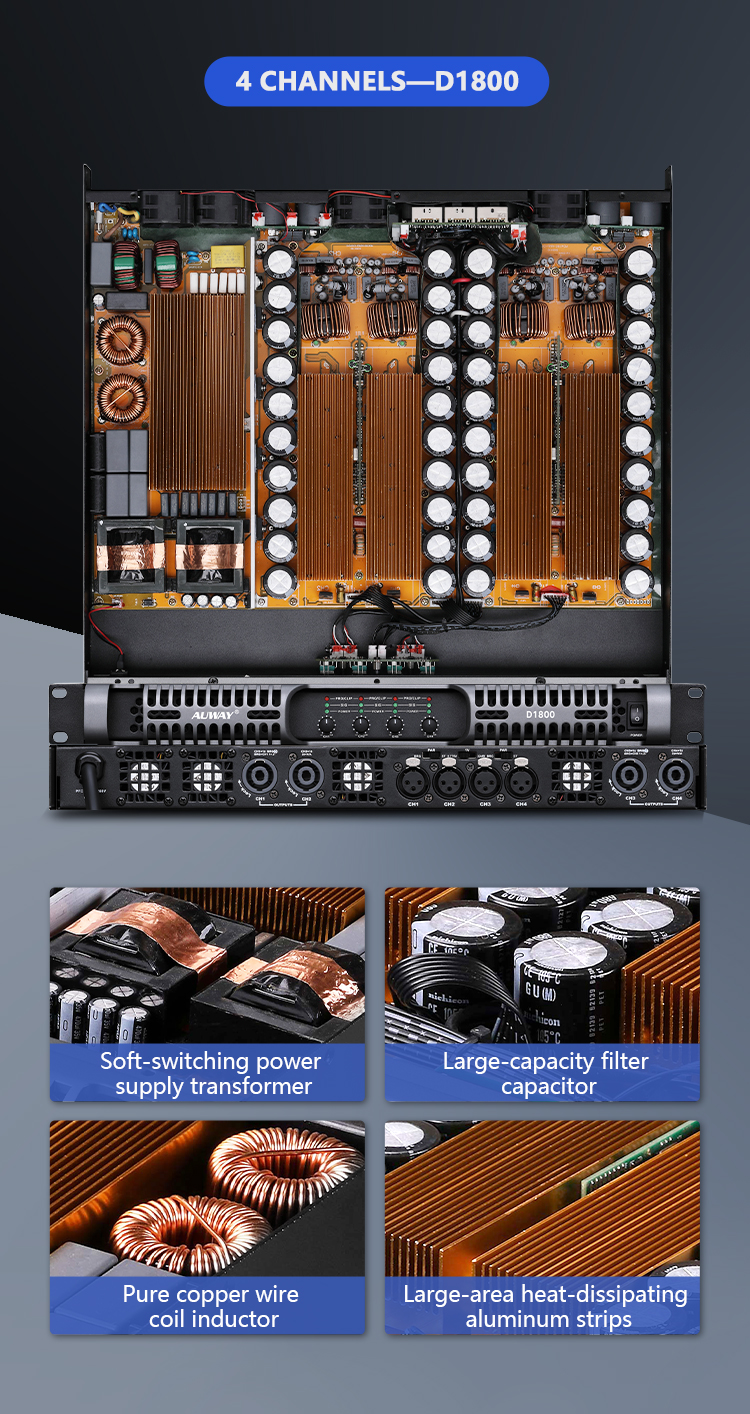

D1800 class d audio power amplifier integrated pure cooper heatsink and high-capacity capacitors, high speed cooling fans and stable power supply provide low heat, and low distortion performance.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • D1800

  • AUWAY

Description

D1800 is a 4 channel, class d digital power amplifier designed for various venues, such as touring, theater, nightclub, stadiums, etc.

D1800 digital audio amplifier output stage adapt high-density Class-D technology enable to design a very powerful amplifier in a very compact and lightweight package. A highly efficient power supply with power factor correction (PFC) technology reduces additional weight and allows universal mains operation. It provides stable power to the speaker regardless of fluctuations in the AC line voltage, eliminating specification limitations one the market and power supplies and related reliability issues.

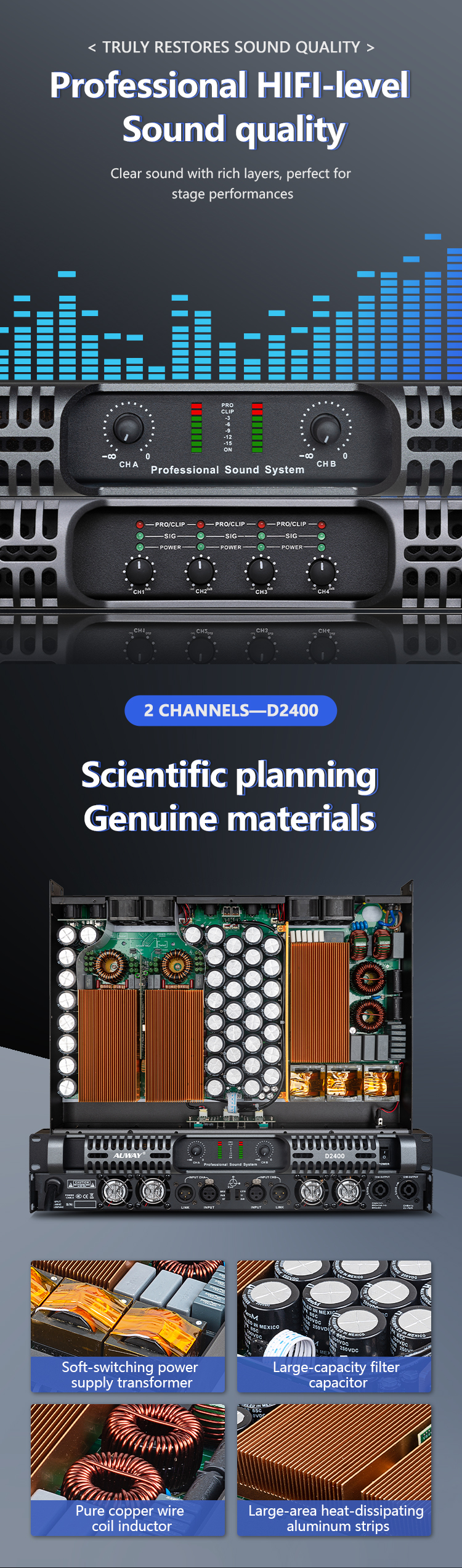

D1800 class d audio power amplifier integrated pure cooper heatsink and high-capacity capacitors, high speed cooling fans and stable power supply provide low heat, and low distortion performance.



Key Features

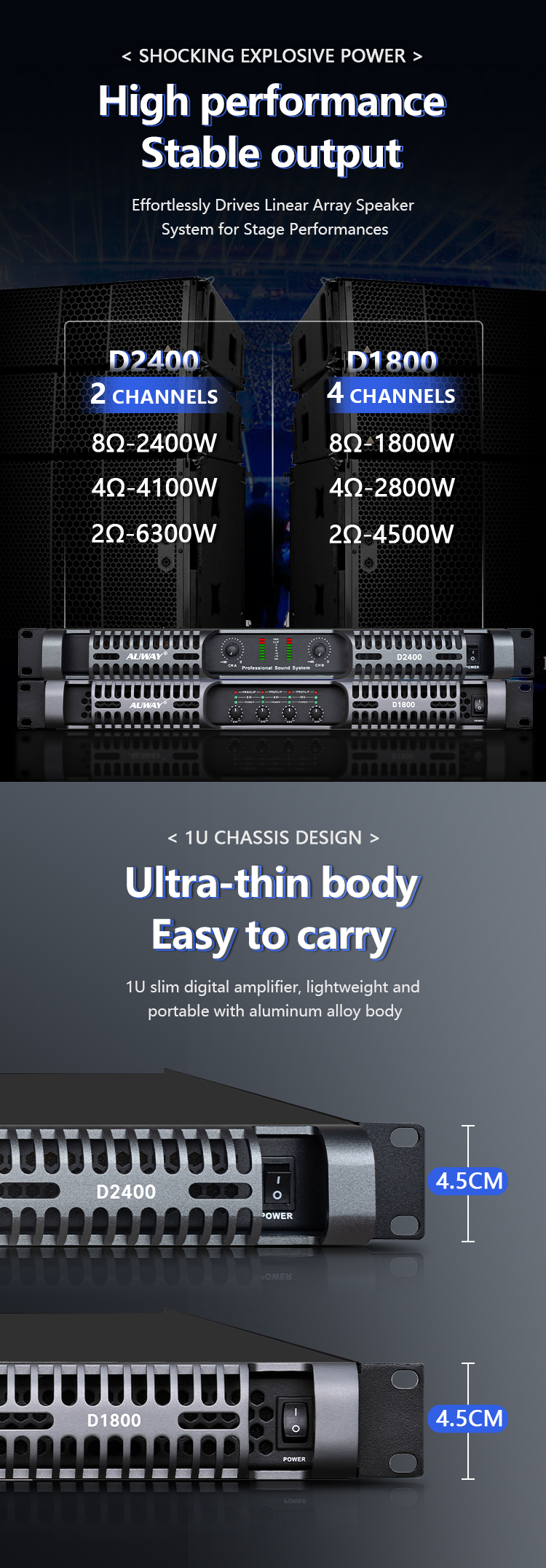

  1. Lightweight and compact class d power amplifier

  2. 1U rack space design

  3. Universal voltage can run from 90V to 265V

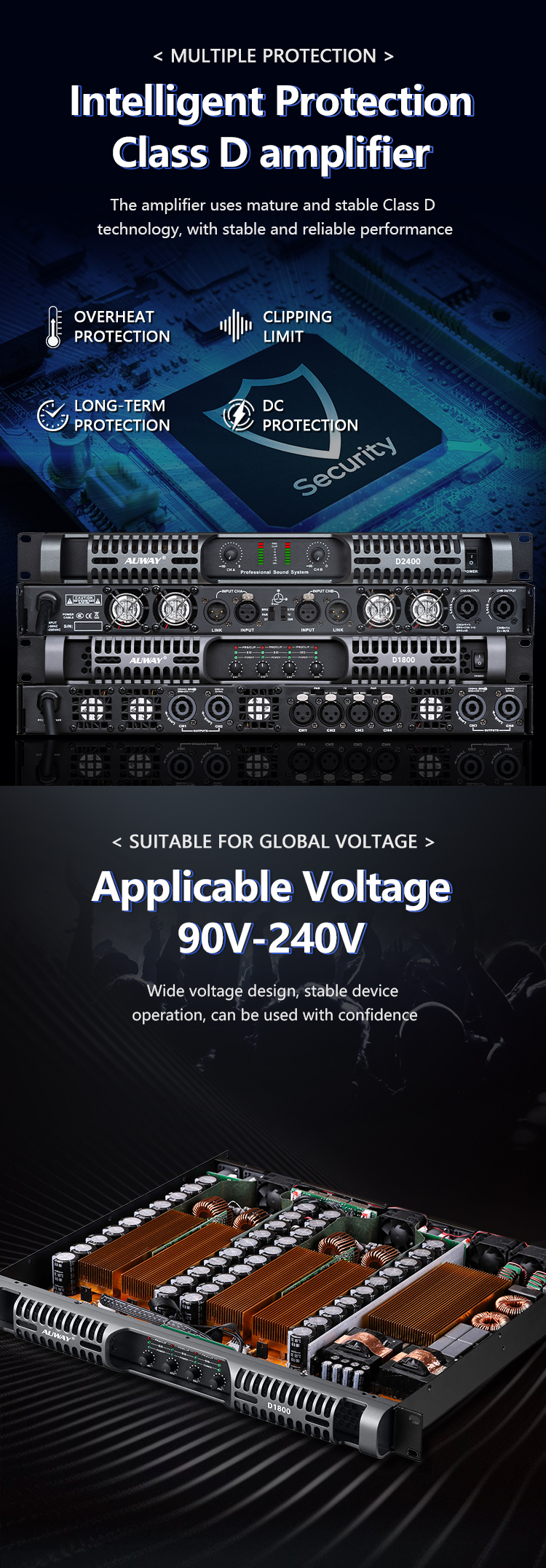

  4. Extensive protection system for reliable performance

  5. Class d subwoofer power amplifier


Specification

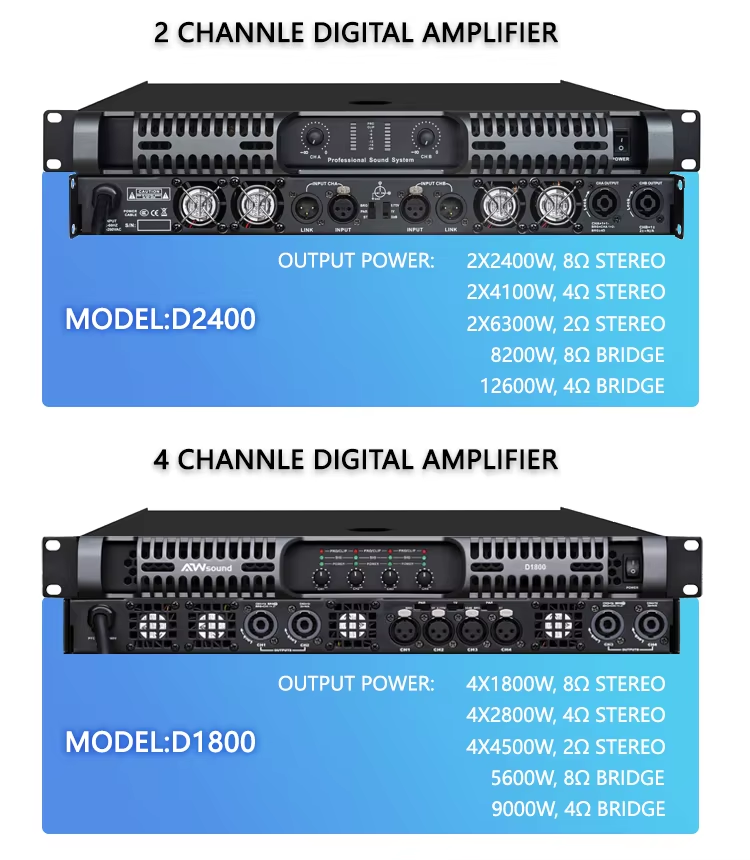

ITEM (Model)

D1800

8Ω Stereo Power

4x1800W

4Ω Stereo Power

4x2800W

2Ω Stereo Power

4x4500W

8Ω Bridge Power

5600W

4Ω Bridge Power

9000W

Channels

4

Output Circuit

Class D

Frequency Response

20Hz-20KHz(+0/-0.5dB)

Input Sensitivity

0.775V / 1.0V / 1.5V

Input Impedance

Balanced: 20K ohms / Unbalanced: 10K ohms

Cross Talk

>80dB

Damping Factor

>400

THD+N

<0.05%20Hz-20KHz

Slew Ratio

40V/ms

Connect

Input:XLR / Output:SPEAKON

Overload Protect

POWER,DC FAULT, Output relay switch

Amplifier Protect

Overheat: Output mute (heat sink temperature>) (auto recovery)

Power AC

220V~240V

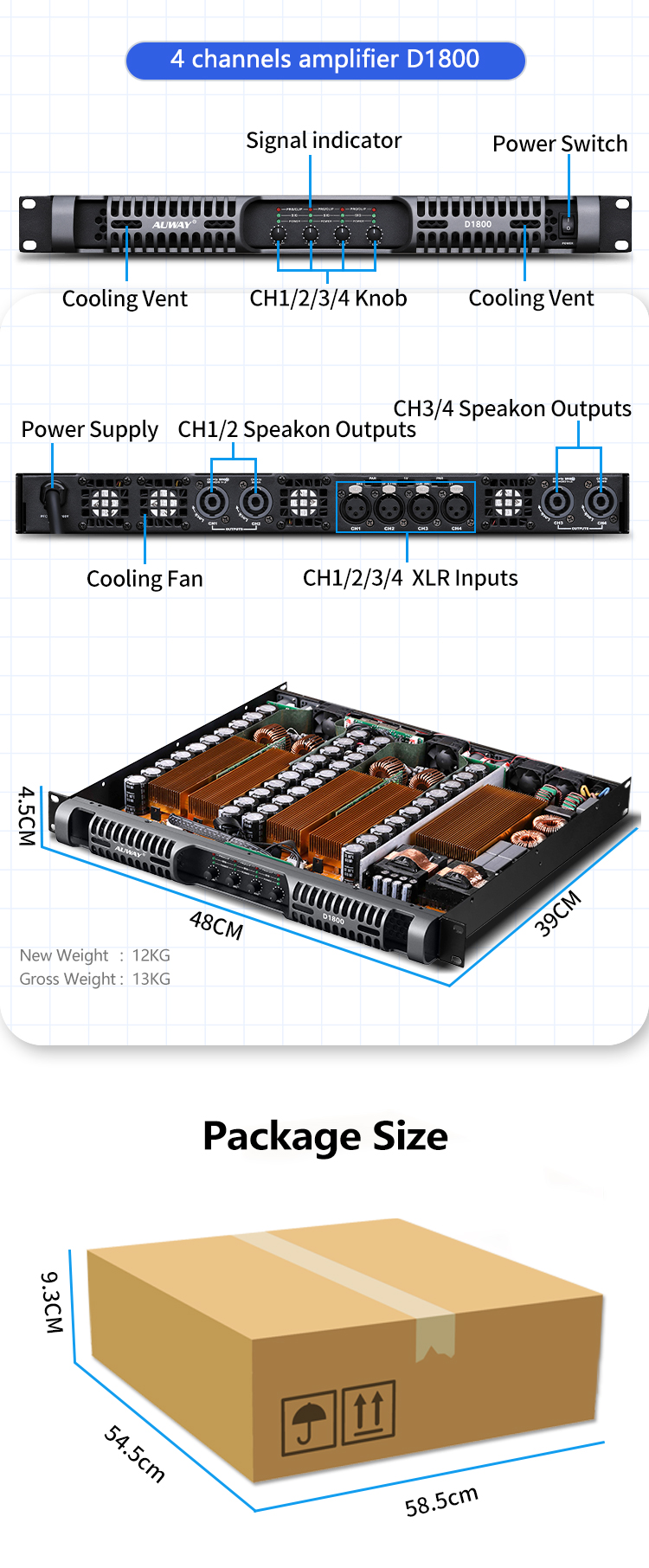

Packing Size

570x440x437MM 5pcs/carton

Net Weight(KG)

12

Gross Weight(KG)

13

class d amplifierclass d power amplifierdigital power amplifier

class d amplifier

class d power amplifier

digital power amplifier
