In the world of modern audio technology, Class D digital power amplifiers have become the preferred choice for both professional and consumer sound systems. Known for their energy efficiency, compact size, and powerful performance, these amplifiers deliver exceptional sound quality while consuming far less power than traditional amplifier designs.
From home theaters and portable speakers to professional sound systems, the Class D digital amplifier is transforming how we experience sound.

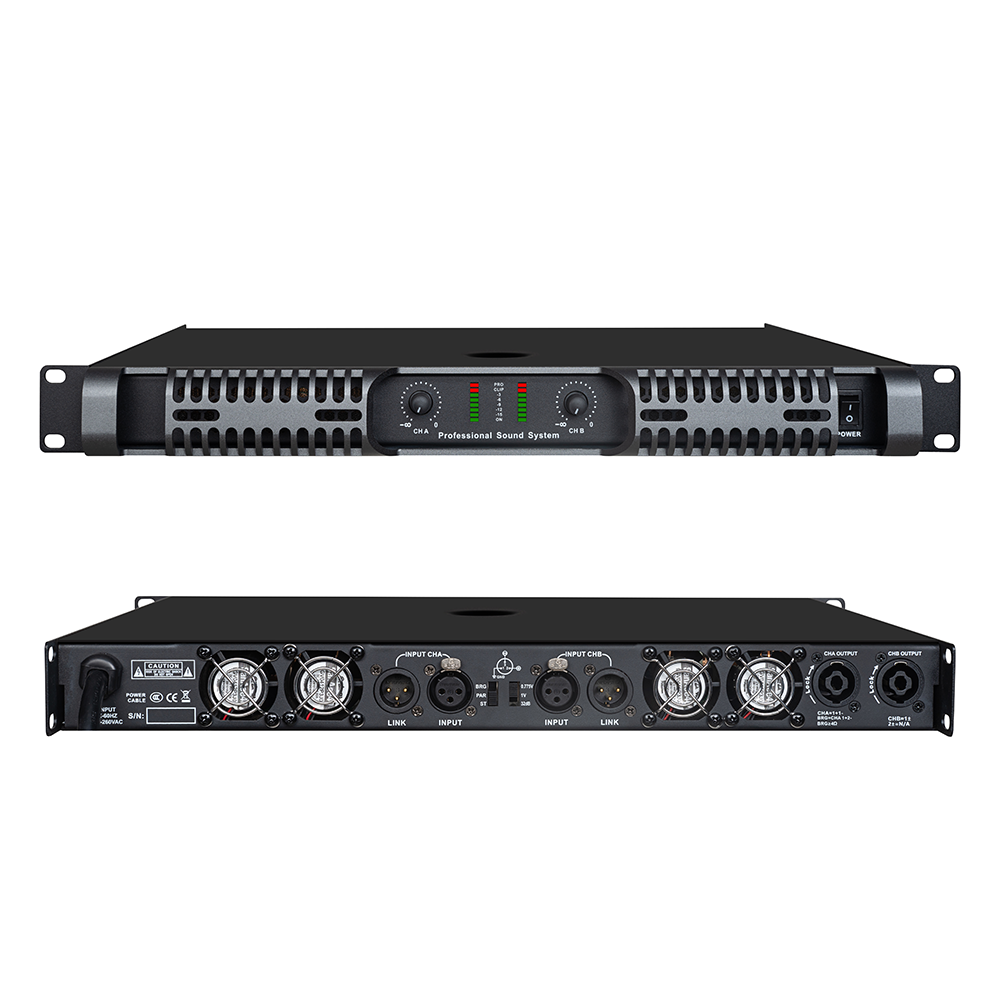

A Class D amplifier, often referred to as a digital power amplifier, is a type of audio amplifier that uses pulse-width modulation (PWM) or switching technology to convert an audio signal into a high-frequency digital waveform.
Unlike traditional Class A or Class AB amplifiers that operate continuously, Class D amplifiers switch transistors on and off rapidly, significantly reducing power loss and heat generation. The result is greater efficiency, often exceeding 90%, with minimal distortion.
The operation of a Class D digital power amplifier can be summarized in four main stages:
Signal Conversion (Input Stage)The analog input audio signal is converted into a pulse-width modulated (PWM) digital signal.
Switching StageHigh-speed transistors (usually MOSFETs) rapidly switch on and off, amplifying the PWM signal.
Filtering StageA low-pass filter removes high-frequency switching components, leaving a clean amplified audio signal.
Output StageThe filtered signal is sent to the speaker, producing high-quality sound with minimal power loss.
This efficient design allows Class D amplifiers to run cooler and deliver higher power in smaller packages — ideal for today’s compact and portable audio systems.
Below is a table comparing Class D amplifiers with other common amplifier classes in terms of efficiency, sound quality, and applications.
| Amplifier Class | Technology | Efficiency (%) | Sound Quality | Heat Generation | Common Applications |
|---|---|---|---|---|---|
| Class A | Linear | 20–30% | Excellent | Very High | Hi-Fi Audio, Studio Monitors |
| Class B | Push-Pull Linear | 50–60% | Moderate | High | Guitar Amps, Basic Audio Systems |
| Class AB | Hybrid Linear | 60–75% | Very Good | Medium | Home Theater, Professional Audio |
| Class D | Digital PWM Switching | 85–95% | Excellent | Low | Subwoofers, Car Audio, Portable Speakers |

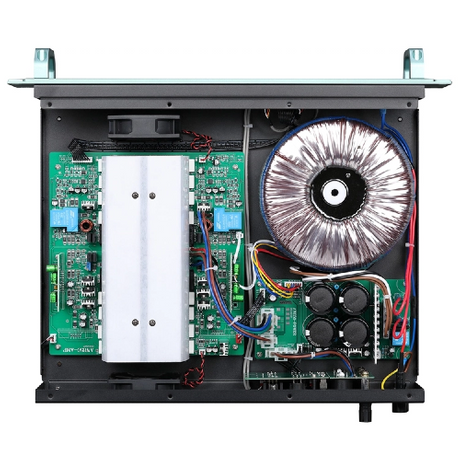

| Class H/G | Multi-Voltage Supply | 75–85% | Very Good | Medium | Professional and Stage Equipment |
High EfficiencyClass D amplifiers operate at over 90% efficiency, converting most electrical power into sound with minimal heat loss.
Compact DesignWith less need for large heat sinks and cooling systems, Class D amps are smaller and lighter, ideal for portable or space-limited setups.
Lower Power ConsumptionPerfect for battery-powered devices, Class D technology minimizes energy use without compromising performance.
Reduced Heat GenerationThe switching mechanism keeps components cooler, improving longevity and reliability.
Excellent Sound QualityModern Class D amplifiers feature advanced feedback circuits and filtering systems that ensure clear, distortion-free sound.
Versatile ApplicationsUsed in car audio systems, home theaters, PA systems, and professional sound reinforcement setups.
| Application | Description |
|---|---|
| Home Audio Systems | Efficient power for subwoofers and multi-channel receivers. |
| Car Audio Systems | Compact size fits in vehicles, providing deep bass and clear highs. |
| Portable Speakers | Battery-friendly design extends playback time. |
| Professional Audio Equipment | Delivers consistent power for live sound and stage performances. |
| Television and Soundbars | Space-saving amplifiers that maintain excellent sound output. |
| Musical Instruments | Compact amps for electric guitars, keyboards, and digital drums. |
Superior Power-to-Size RatioYou get more wattage in a smaller chassis — ideal for mobile setups and compact audio equipment.
Eco-Friendly OperationReduced energy use and less heat emission make these amplifiers environmentally efficient.
Advanced Technology IntegrationMany Class D amplifiers now come with DSP (Digital Signal Processing) for precise tone shaping and sound control.
Cost-Effective Over TimeDespite slightly higher initial costs, energy savings and lower maintenance make them economical in the long run.
Power Output (Wattage)Ensure the amplifier’s RMS output matches your speakers’ requirements.
Total Harmonic Distortion (THD)Look for a THD rating below 0.1% for clean sound reproduction.
Impedance CompatibilityVerify that the amp supports your speaker’s impedance (e.g., 4Ω, 8Ω).
Cooling and Protection FeaturesChoose models with thermal protection, short-circuit prevention, and automatic shut-off.
Input and Output OptionsBalanced and unbalanced inputs (XLR, RCA, TRS) offer flexibility for different systems.
Brand and WarrantyReputable brands like Crown, Yamaha, Behringer, and Topping ensure quality performance and reliability.
GaN (Gallium Nitride) TransistorsThese next-gen components enable faster switching and higher efficiency.
Integrated DSP ControlBuilt-in digital signal processing allows sound customization for professional users.
Multi-Channel ConfigurationsClass D technology now supports 4-channel and 8-channel amplifiers for surround sound systems.
Bluetooth and Wireless IntegrationModern amplifiers include wireless connectivity for smart audio systems.
AI-Based Audio CalibrationAdvanced models use machine learning to automatically adjust sound settings based on room acoustics.
Keep the amplifier well-ventilated to prevent heat buildup.
Avoid overloading the output with mismatched speakers.
Clean the unit regularly to prevent dust accumulation.
Use stable power sources to protect against voltage fluctuations.
Periodically check cables and connections for signal integrity.
The Class D digital power amplifier represents the pinnacle of audio efficiency and performance. With its compact design, low heat output, and exceptional sound clarity, it’s no wonder this technology dominates modern audio applications.
Whether you’re upgrading your home audio setup, building a professional sound system, or developing portable audio devices, a Class D amplifier offers the perfect balance of power, quality, and efficiency.
As digital technology continues to evolve, Class D amplifiers will remain the cornerstone of high-performance, energy-efficient sound amplification — setting new standards for the audio industry.
