The MAX4800 represents the pinnacle of multi-channel amplification technology, delivering 4x800W at 8Ω (4x1200W at 4Ω) in an astonishingly compact 2U rack-mount chassis. This flagship amplifier combines brute power with precision engineering, featuring our signature copper transformer as standard (with aluminum option available) for uncompromised performance in the most demanding audio environments.
| Quantity: | |
|---|---|
MAX4800
AUWAY
Model | MAX4400 | MAX4600 | MAX4800 |
8Ω Stereo | 4x400W | 4x600W | 4x800W |
4Ω Stereo | 4x600W | 4x900W | 4x1200W |
8Ω Bridge | 1200W+1200W | 1800W+1800W | 2400W+2400W |
4Ω Bridge | 1600W+1600W | 2500W+2500W | 3600W+3600W |
Channels | 4 | ||
Output Circuit | Class H | ||
Frequency Response | 20Hz-20KHz（+0/-0.5dB） | ||
Input Sensitivity | 0.7V / 1.0V / 1.5V | ||
Input Impedance | Balanced: 20K ohms / Unbalanced: 10K ohms | ||
Cross Talk | >80dB | ||
Damping Factor | >400 | ||
THD+N | <0.05%20Hz-20KHz | ||
Slew Ratio | 40V/ms | ||
Connect | Input：XLR / Output：SPEAKON | ||
Overload Protect | POWER,DC FAULT, Output relay switch | ||
Power AC | 220V~240V | ||
Size（WxLxH） | 490x520x90MM | ||
Packing Size | 650x585x158MM 1pcs/carton | ||
Gross Weight | 26 KG | 28 KG | 30 KG |
The MAX4800 Professional Power Amplifier is AUWAY’s flagship multi-channel solution, revolutionizing power density with its compact 2U rack-mount design. Engineered for professional environments where space and performance are equally critical, this 4-channel amplifier delivers 4x800W @8Ω (stereo) and 4x1200W @4Ω—a remarkable output for its space-saving form. When configured in bridged mono, it reaches 2400W+2400W @8Ω and 3600W+3600W @4Ω, making it suitable for large-scale sound reinforcement in stadiums, convention centers, and broadcast facilities.
At its core is a military-grade pure copper transformer (with an aluminum option for budget flexibility), which ensures efficient energy transfer and minimal signal interference. The MAX4800 also boasts reference-class audio specs: <0.05% THD+N across 20Hz-20kHz, >80dB inter-channel isolation, and >400 damping factor—critical for applications where precision and power converge, such as broadcast monitoring or post-production dub stages.
The MAX4800’s greatest advantage is its power density. Delivering up to 4x1200W @4Ω in a 2U chassis, it saves valuable rack space in installations like stadium control rooms, mobile broadcast units, or touring rigs—where every inch of rack space is at a premium. This compact design does not sacrifice power, making it a versatile choice for systems that need high output without bulk.
The standard pure copper transformer is a key component of the MAX4800’s performance. Copper’s superior conductivity reduces energy loss and heat generation, resulting in cleaner audio and more consistent power delivery. A PVC anti-magnetic shield surrounds the transformer, preventing interference with other components in the rack—critical for broadcast or post-production environments where signal purity is non-negotiable. For projects with tighter budgets, the optional aluminum transformer maintains core performance specs at a lower cost.
With <0.05% THD+N (20Hz-20kHz) and 20Hz-20kHz (±0.5dB) frequency response, the MAX4800 delivers studio-quality sound reproduction. Its >400 damping factor provides precise control over speakers, ensuring tight bass and accurate transient response—essential for broadcast monitoring, post-production dub stages, or live music where every detail matters.
Large venues like stadiums and arenas require amplifiers that can power multiple speaker zones (main arrays, delay towers, infield speakers) efficiently. The MAX4800’s 4x800W @8Ω output drives these distributed systems without compromising sound quality, while its 2U size fits easily into rack systems in control booths. The amplifier’s mixed impedance support also allows using 8Ω and 4Ω speakers across zones, adding flexibility to venue design.
Broadcast facilities rely on accurate audio monitoring to ensure live feeds and pre-recorded content meet quality standards. The MAX4800’s low distortion (<0.05% THD+N) and high channel isolation (>80dB) eliminate cross-talk and signal degradation, making it ideal for monitoring main broadcast feeds, backup systems, and on-air talent microphones. Its stable power delivery ensures consistent audio quality during long broadcast shifts.
High-end venues demand both performance and discretion, and the MAX4800 delivers. Its 2U design fits discreetly into AV racks, while its clean audio reproduction enhances events like weddings, conferences, and galas. The amplifier’s independent channel control allows AV teams to adjust audio levels for different areas of the ballroom—from the stage to the cocktail lounge—ensuring uniform sound across the space.
The pure copper transformer (standard) offers better conductivity, lower energy loss, and minimal interference—ideal for critical applications like broadcast monitoring or post-production. The aluminum option is a cost-effective alternative that maintains the amplifier’s core specs (power output, THD) but has marginally higher energy loss. Choose copper for applications where audio precision is critical, and aluminum for general use like hotel ballrooms or convention centers.
Yes, the MAX4800 features independent channel processing capability, allowing you to adjust gain, EQ, and protection settings for each of the 4 channels. This flexibility is ideal for multi-zone systems (e.g., convention centers with separate meeting rooms) where each zone requires tailored audio levels or EQ profiles.

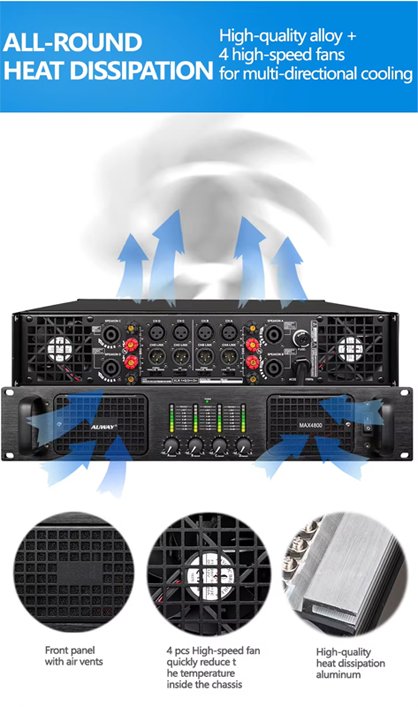

The amplifier is equipped with 4 high-speed fans and a high-quality aluminum heat sink for multi-directional cooling. The front panel includes air vents to facilitate airflow, while the fans adjust speed based on internal temperature—running quietly during low-load use (e.g., background audio) and speeding up during peak performance (e.g., live concerts) to maintain safe temperatures.
Yes, the MAX4800 is global voltage-ready, operating on 220V~240V AC—compatible with electrical systems in most countries. Its rugged military-grade construction also withstands the rigors of touring, including transport vibrations, varying humidity levels, and frequent setup/teardown.
