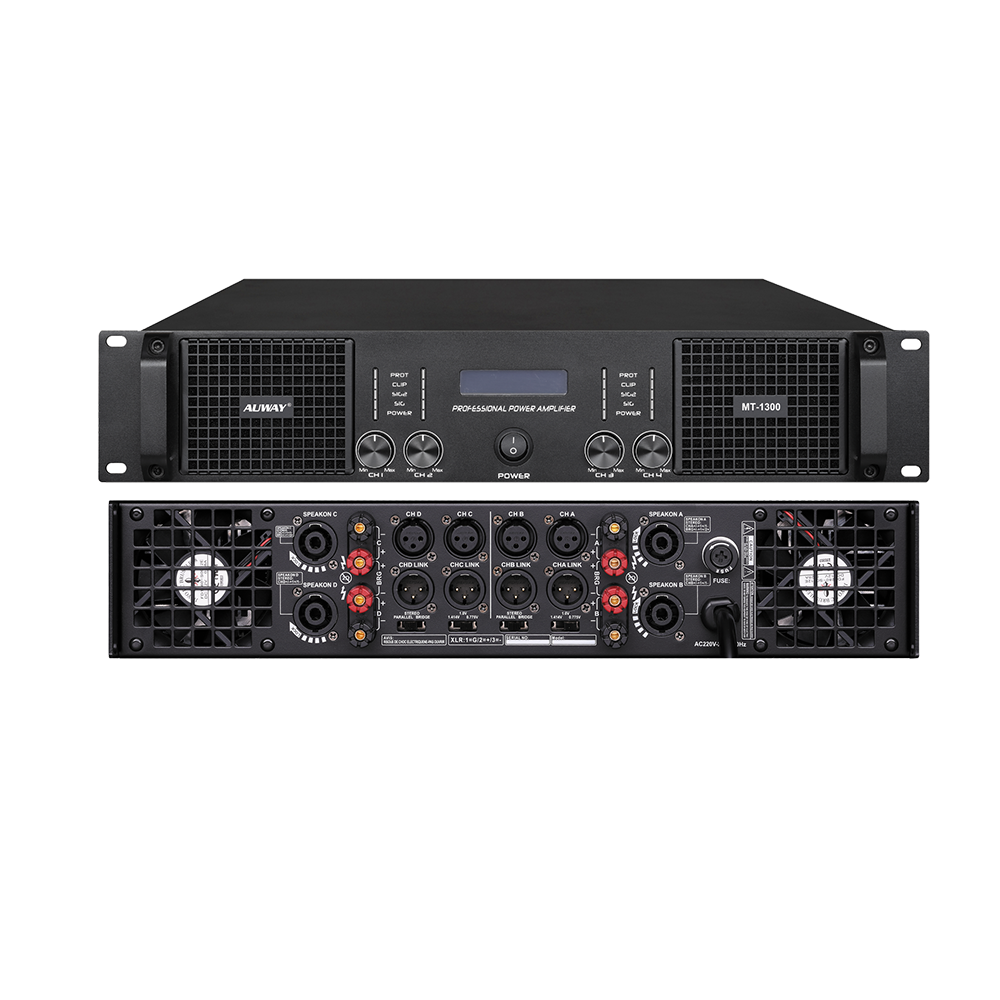

The MT-1300 professional power amplifier delivers 4x1200W at 8Ω through its advanced Class H design, featuring 24 high-capacity capacitors and a pure copper transformer for exceptional performance. This 2U rack-mount amplifier combines massive power output with precise control, making it ideal for demanding sound reinforcement applications.
| Quantity: | |
|---|---|
MT-1300
AUWAY
Model | MT-1300 |
8Ω Stereo | 4x1200W |
4Ω Stereo | 4x1800W |
8Ω Bridge | 3600W |
Channels | 4 |
Output Circuit | Class H |
Frequency Response | 20Hz-20KHz（+0/-0.5dB） |
Input Sensitivity | 0.7V / 1.0V / 1.5V |
Input Impedance | Balanced: 20K ohms / Unbalanced: 10K ohms |
Cross Talk | >80dB |
Damping Factor | >400 |
THD+N | <0.05%20Hz-20KHz |
Slew Ratio | 40V/ms |

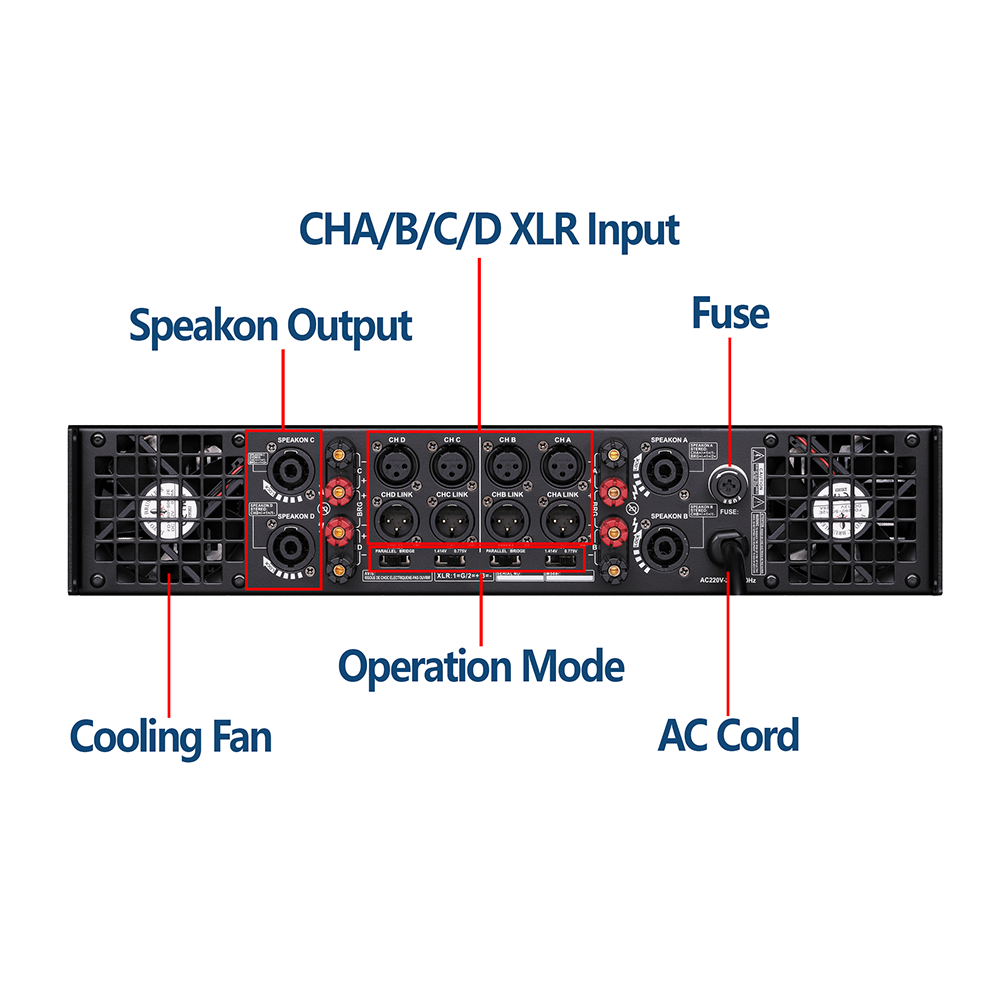

Connect | Input：XLR / Output：SPEAKON |
Overload Protect | POWER,DC FAULT, Output relay switch |
Amplifier Protect | Overheat: Output mute (heat sink temperature >) (auto recovery) |
Power AC | 220V~240V |
Packing Size | 650x585x158MM 1pcs/carton |
Net Weight | 24 KG |
Gross Weight | 27 KG |
The MT-1300 Professional Power Amplifier is a high-density 4-channel solution designed for demanding sound reinforcement applications, combining massive power with precise control. Built on an advanced Class H design, it delivers 4x1200W @8Ω and 4x1800W @4Ω in stereo mode, plus 3600W @8Ω in bridged mono—all within a space-saving 2U rack-mount chassis. Key components include 24 high-capacity audio capacitors (for stable power delivery) and a pure copper toroidal transformer (for clean, low-interference signal transmission). A standout feature is its front-panel display, which provides real-time monitoring of channel levels, temperature, and protection status—empowering users to troubleshoot and optimize performance on the fly. Whether for touring sound, fixed installations, or distributed audio systems, the MT-1300 balances power, reliability, and user-friendliness.
• 4-channel independence: Each channel delivers 1200W @8Ω (or 1800W @4Ω), enabling precise power allocation to multiple speaker zones (e.g., main speakers, monitors, subwoofers) without cross-talk.

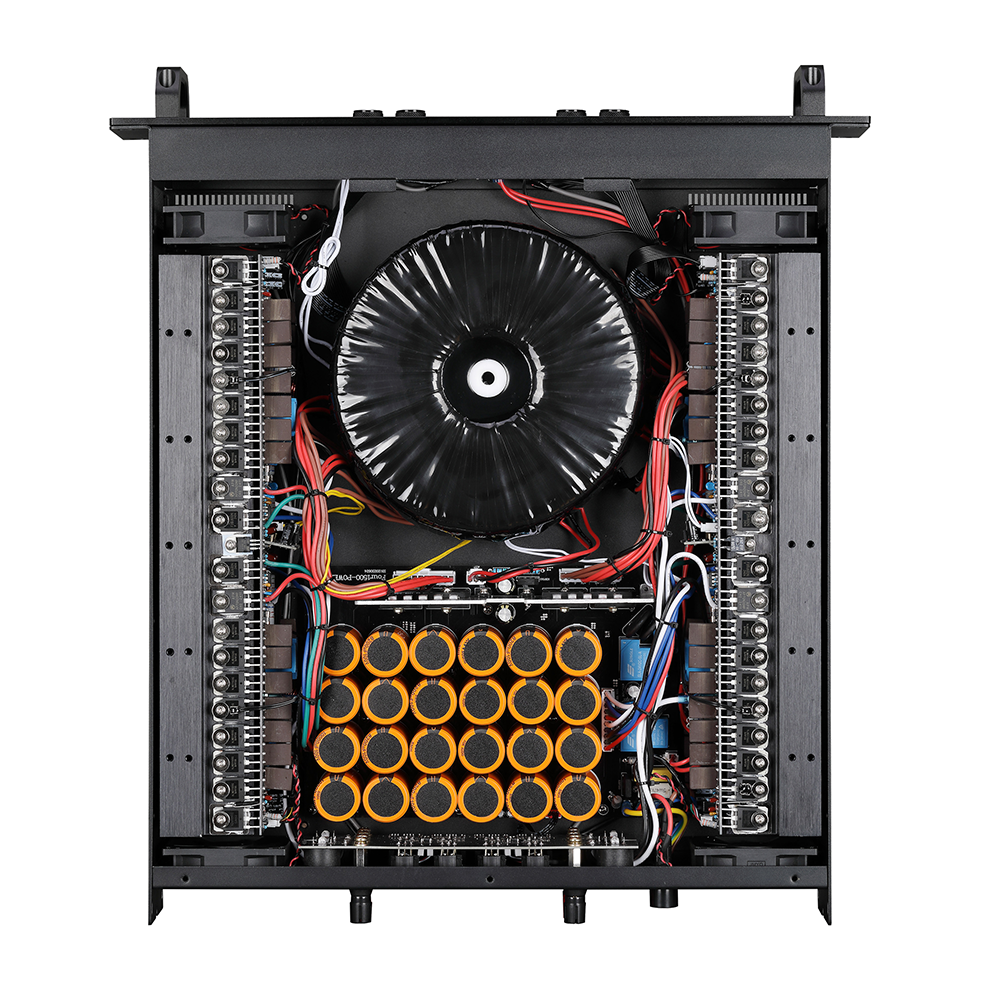

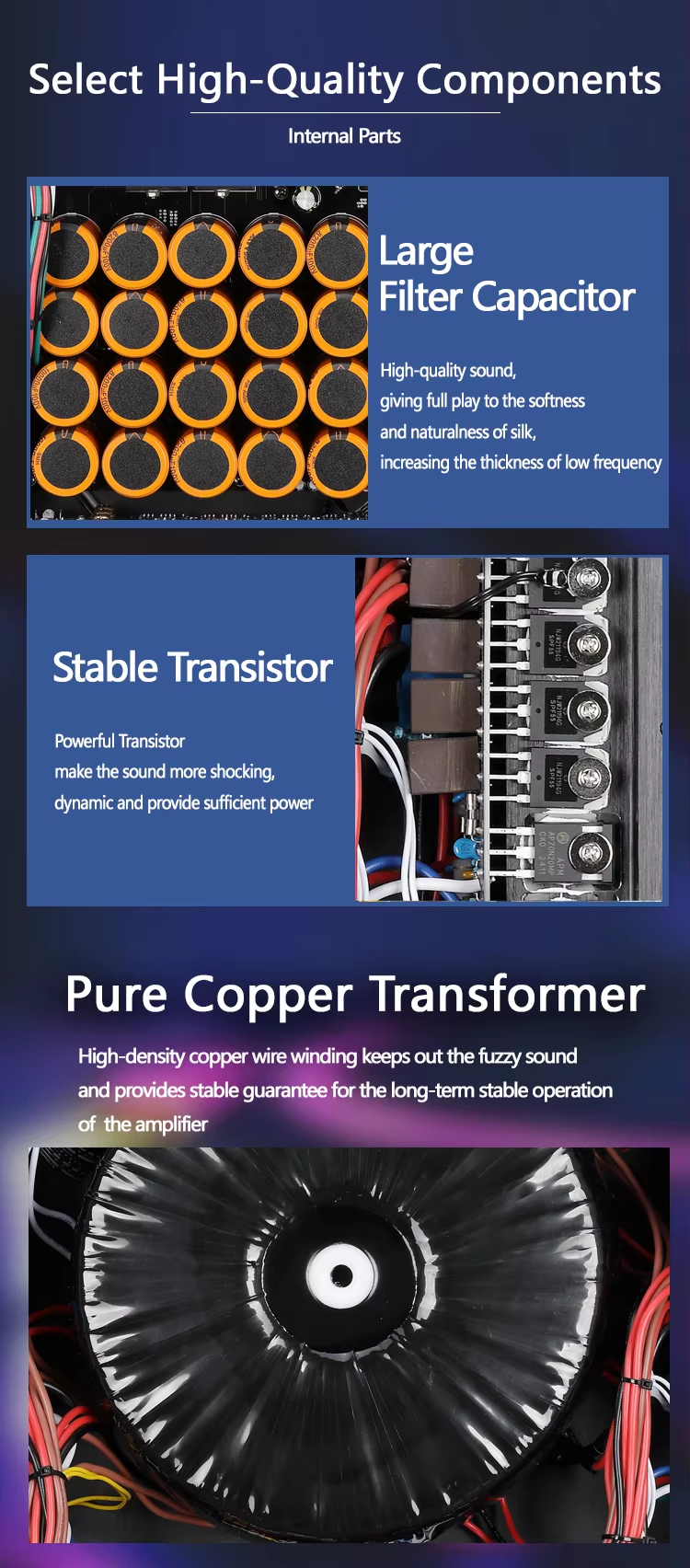

• Pure copper toroidal transformer: Dense copper windings reduce electrical resistance and magnetic interference, delivering cleaner power and lower noise compared to aluminum transformers—critical for high-fidelity audio.
• 24 high-capacity capacitors: Store and release power efficiently, ensuring stable output during audio peaks (e.g., vocal crescendos, drum fills) and preventing voltage drops that cause distortion.
• Front-panel display: Real-time metrics include channel signal levels (to avoid clipping), chassis temperature (to prevent overheating), and protection status (e.g., short circuit alerts, DC fault warnings)—eliminating guesswork during setup and operation.
• Compact 2U form factor: At 490×520×90mm, it saves rack space—critical for touring rigs (where every inch matters) or installations with limited equipment room (e.g., small theater backrooms).
• Easy-to-access controls: Gain knobs and status LEDs (signal, clip, protect) simplify adjustments, even in low-light environments (e.g., concert stage wings).
• Multi-stage protection: Guards against short circuits, DC faults, thermal overload, and power surges—preventing damage to the amplifier and connected speakers (e.g., faulty speaker cables, power spikes).
• Auto-recovery overheat protection: If the heat sink temperature exceeds safe levels, the amplifier mutes outputs temporarily; once cooled, it resumes operation automatically (no manual reset needed).
• Rugged construction: Heavy-duty aluminum chassis withstands transportation shocks (ideal for touring) and corrosion (suitable for long-term installations in humid environments, e.g., coastal hotels).
• Multi-zone stage setups: Powers main speakers (2 channels), monitors (1 channel), and a subwoofer (1 channel) with 4x1200W @8Ω output, eliminating the need for multiple amplifiers and reducing rack weight.
• Mobile DJ rigs: Drives DJ speakers, monitors, and subwoofers, with the front-panel display simplifying level adjustments during performances (e.g., adjusting monitor volume without affecting main sound).
• Band tours (500-1,500 capacity): Supports small-to-medium venues, with 4-channel flexibility adapting to different stage layouts (e.g., adding side-fill speakers for larger rooms).
• Theater multi-zone sound: Distributes power to main speakers, balcony fill speakers, and stage monitors, with >80dB channel separation ensuring isolated sound (e.g., balcony audio doesn’t interfere with stage monitors).
• Convention center meeting halls: Covers multiple rooms or exhibit halls, using independent channels to adjust volume and sound quality for each space (e.g., quiet conference rooms vs. loud product demo areas).
• House of worship audio: Powers sanctuary speakers, youth room audio, and outdoor service zones, with reliable protection ensuring 24/7 operation for weekly services and special events.
• Malls & airports: Drives speakers in multiple zones (e.g., food courts, retail stores, gate areas) with 4-channel operation, simplifying system design and reducing cable clutter.
• Universities & schools: Supports audio in lecture halls, gymnasiums, and auditoriums, with the front-panel display enabling easy maintenance (e.g., identifying a faulty channel in a lecture hall).
• Hotels & resorts: Powers background music in lobbies, restaurants, and pool areas, with low distortion keeping audio pleasant for guests (e.g., jazz in restaurants, soft rock by pools).
A 4-channel design eliminates the need for multiple 2-channel amplifiers, saving 50%+ rack space, reducing cable clutter (fewer power and signal cables), and lowering setup time. For example, a small stage setup that previously required two 2-channel amplifiers (one for main speakers/monitors, one for subwoofers) can now use just the MT-1300. It also enables precise control over individual zones (e.g., adjusting monitor volume without affecting main speakers), improving system flexibility and user experience.
The display provides three key types of real-time data: 1) Channel signal levels (LED bars showing input/output levels, preventing clipping and ensuring balanced audio), 2) Chassis temperature (digital readout in °C, alerting users to potential overheating), and 3) Protection status (error codes for short circuits, DC faults, or overloads). This data lets users troubleshoot issues quickly (e.g., identifying a faulty speaker cable from a short circuit alert) and optimize performance (e.g., reducing gain on a clipping channel), minimizing downtime during events.
Yes, the MT-1300 supports 3600W @8Ω bridged mono mode (combining two channels into one high-power output). Bridged mode is ideal for driving single high-power devices like large subwoofers (18"-21" models, 2000-3000W program), line array modules (for extended venue coverage), or centralized main speakers (in small stadiums). For example, bridging channels 1+2 creates a 3600W @8Ω output for a large subwoofer, while channels 3+4 remain independent for stage monitors—adding versatility to system design.
