The MAX4600 sets new standards in multi-channel amplification, delivering 4x600W at 8Ω (4x900W at 4Ω) through its advanced Class H design with dual transformer options. This 2U rack-mount powerhouse combines exceptional power density with installation flexibility, making it ideal for large-scale distributed systems and critical audio applications.
| Quantity: | |
|---|---|
MAX4600
AUWAY
Model | MAX4400 | MAX4600 | MAX4800 |
8Ω Stereo | 4x400W | 4x600W | 4x800W |
4Ω Stereo | 4x600W | 4x900W | 4x1200W |
8Ω Bridge | 1200W+1200W | 1800W+1800W | 2400W+2400W |
4Ω Bridge | 1600W+1600W | 2500W+2500W | 3600W+3600W |
Channels | 4 | ||
Output Circuit | Class H | ||
Frequency Response | 20Hz-20KHz（+0/-0.5dB） | ||
Input Sensitivity | 0.7V / 1.0V / 1.5V | ||
Input Impedance | Balanced: 20K ohms / Unbalanced: 10K ohms | ||
Cross Talk | >80dB | ||
Damping Factor | >400 | ||
THD+N | <0.05%20Hz-20KHz | ||
Slew Ratio | 40V/ms | ||
Connect | Input：XLR / Output：SPEAKON | ||
Overload Protect | POWER,DC FAULT, Output relay switch | ||
Power AC | 220V~240V | ||
Size（WxLxH） | 490x520x90MM | ||
Packing Size | 650x585x158MM 1pcs/carton | ||
Gross Weight | 26 KG | 28 KG | 30 KG |

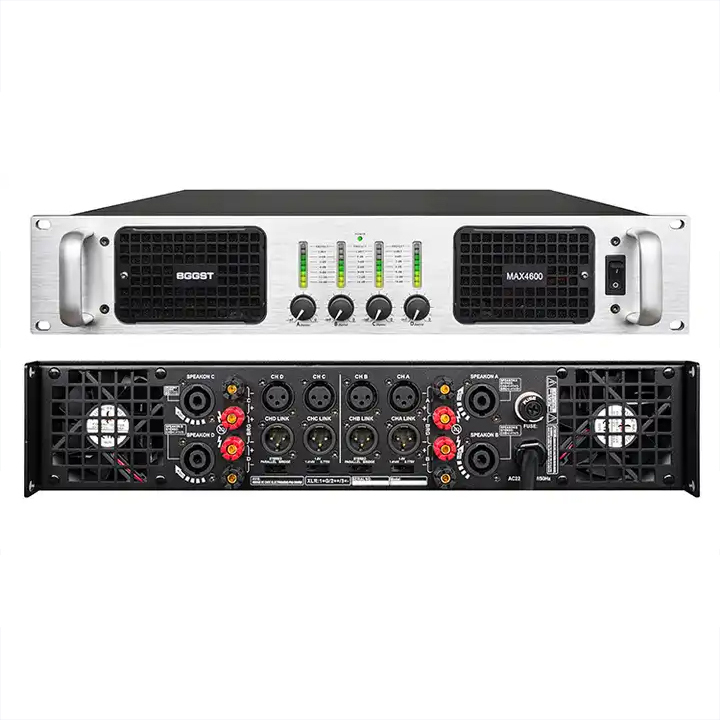

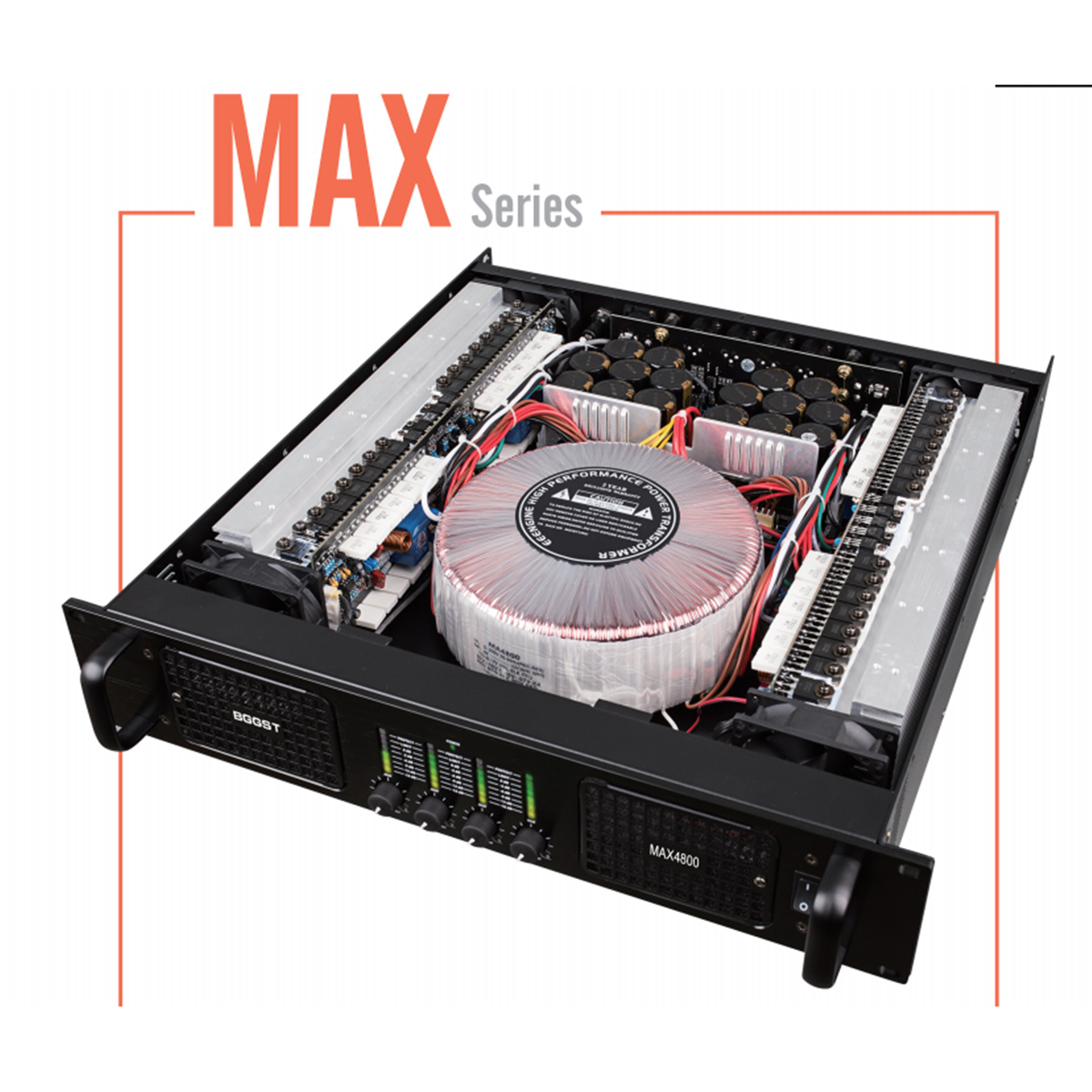

The MAX4600 Professional Power Amplifier is a high-density 4-channel solution from AUWAY’s MAX series, engineered for mid-to-large-scale professional audio systems. Balancing power, versatility, and affordability, this 2U rack-mount amplifier delivers 4x600W @8Ω (stereo) and 4x900W @4Ω, with bridged mono configurations reaching 1800W+1800W @8Ω and 2500W+2500W @4Ω.

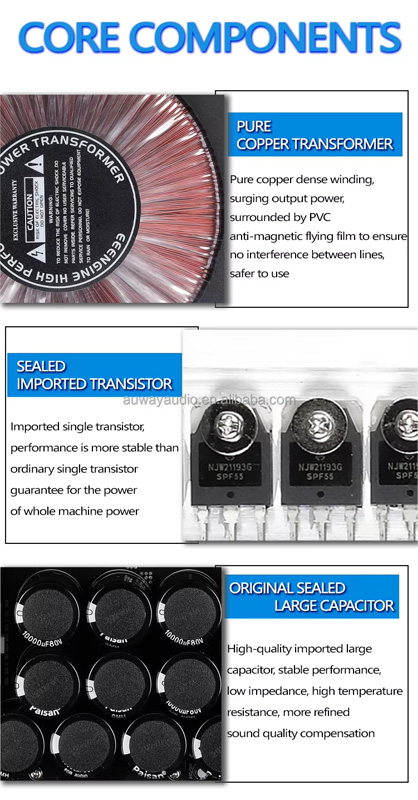

It features a premium copper transformer (standard, with an aluminum option for budget flexibility) for efficient power transfer, along with reference-grade audio specs: <0.05% THD+N (20Hz-20kHz), >80dB channel separation, and >400 damping factor. Designed for both permanent installations and temporary setups, the MAX4600 includes multi-stage protection systems (thermal, DC, short-circuit) and mixed impedance support, making it a flexible choice for diverse professional applications—from megachurches to convention centers.
The MAX4600’s power output—4x600W @8Ω and 4x900W @4Ω—is tailored for mid-to-large venues that don’t require the extreme power of the MAX4800. This makes it a cost-effective option for applications like 500-1,500 seat megachurch sanctuaries, convention center meeting rooms, and theme park sound zones. It delivers enough power to drive multi-zone systems without overspending on unused wattage.

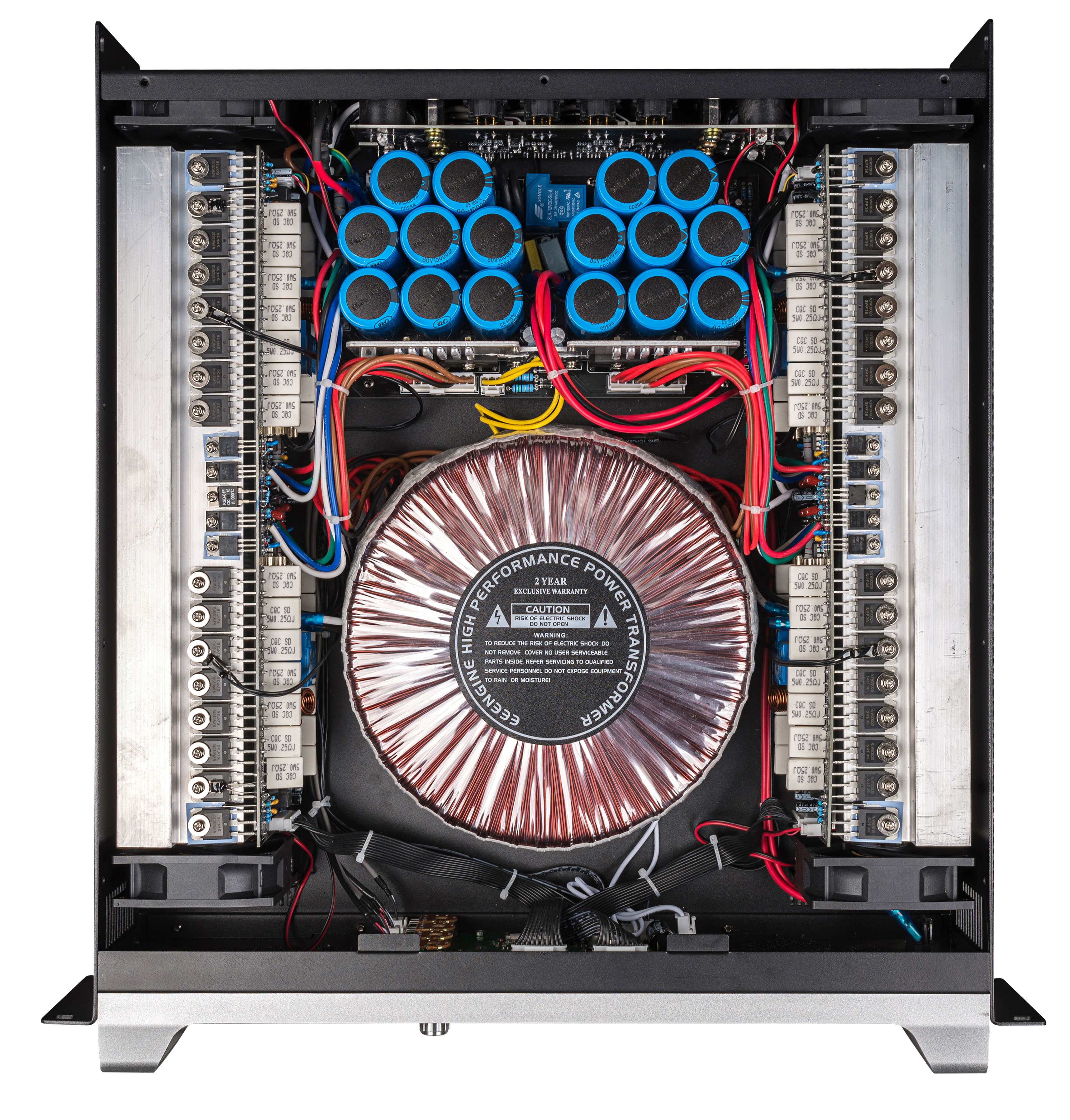

AUWAY offers a copper transformer (standard) and aluminum transformer (optional) for the MAX4600, allowing you to align the amplifier with your project’s budget and performance needs. The copper transformer delivers superior conductivity and minimal interference—ideal for critical applications like broadcast monitoring or post-production. The aluminum option provides reliable performance at a lower cost, making it perfect for general use like theme park sound zones or hotel conference rooms.
The MAX4600 includes a comprehensive protection suite to minimize downtime and extend equipment life. It features thermal monitoring with auto-recovery (prevents overheating during peak use), DC/short-circuit protection (safeguards against wiring errors), power rail supervision (monitors voltage stability), and soft-start circuitry (reduces inrush current to protect components). These features ensure the amplifier can handle the demands of daily professional use—from all-day church services to multi-day conferences.
Megachurches need audio systems that cover both main sanctuaries and overflow spaces (e.g., gyms or fellowship halls), and the MAX4600 excels here. Its 4x600W @8Ω output powers main speakers in the sanctuary and secondary speakers in overflow areas, while the low distortion (<0.05% THD+N) ensures clear delivery of sermons and worship music. The mixed impedance support allows mixing 8Ω main speakers and 4Ω delay speakers across zones.
Convention centers host events in multiple halls and meeting rooms, each requiring independent audio control. The MAX4600’s 4 channels (each with individual gain control) power separate zones, while its 2U size fits into centralized AV racks. The bridged mono 1800W+1800W @8Ω option can also power larger hall speakers, making it versatile for both small meetings (20-50 people) and large conferences (500+ people).
Theme parks use distributed audio to enhance guest experiences in ride queues, themed lands, and dining areas. The MAX4600’s rugged construction withstands constant use, while the >80dB channel separation prevents sound leakage between zones—ensuring guests in a “jungle” themed area don’t hear audio from a nearby “space” ride. The amplifier’s ability to drive mixed impedance speakers allows park engineers to use a variety of speaker types (ceiling, floor, weatherproof) across different areas.
The MAX4600 is ideal for megachurches with sanctuaries seating 500-1,500 people. Its 4x600W @8Ω output can power 2-4 main speakers, 2-4 side fills, and a subwoofer—providing full coverage for mid-sized sanctuaries. For larger sanctuaries (1,500+ seats), pair the MAX4600 with additional units or upgrade to the MAX4800 for higher power.
Yes, the MAX4600 supports mixed impedance operation. You can connect 8Ω speakers to some channels (delivering 600W per channel) and 4Ω speakers to others (delivering 900W per channel) without damaging the amplifier. This flexibility is ideal for systems that use a mix of speaker types—for example, 8Ω ceiling speakers for background audio and 4Ω floor speakers for main sound.
The MAX4600 comes with a 2-year exclusive warranty from AUWAY, covering manufacturing defects and component failures. This warranty is valid for professional use (installations, touring) and includes technical support from AUWAY’s team of audio engineers. To claim the warranty, keep your purchase receipt and register the product on AUWAY’s website within 30 days of installation.

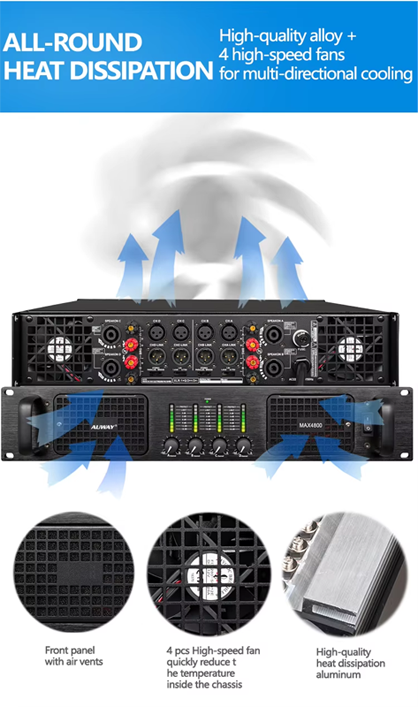

The MAX4600 uses 4 high-speed fans with variable speed control. During low-load use (e.g., background audio in a convention center lobby), the fans run at a low speed, producing minimal noise (under 35dB)—quiet enough for quiet environments like meeting rooms or church sanctuaries. At peak load (e.g., live music during a conference keynote), the fans speed up to maximize cooling, but the noise remains manageable in most professional spaces.
