The MK8008 represents the pinnacle of multi-channel amplification, delivering 3x800W at 8Ω (3x1200W at 4Ω) through its advanced Class H design with pure copper transformer. This 3-channel powerhouse provides unmatched power density for professional installations requiring high-performance, multi-zone amplification in a single rack space.
| Quantity: | |
|---|---|
MK8008
AUWAY
Model | MK6006 | MK8006 | MK8008 |
8Ω Stereo | 3x600W | 2x600W+800W | 3x800W |
4Ω Stereo | 2x900W+900W | 2x900W+1200W | 2x1200W+1200W |
8Ω Bridge | 1800W+900W | 1800W+800W | 2400W+800W |
Channels | 3 | ||
Output Circuit | Class H | ||
Frequency Response | 20Hz-20KHz（+0/-0.5dB） | ||
Input Sensitivity | 0.7V / 1.0V / 1. 5V | ||
Input Impedance | Balanced: 20K ohms ,Unbalanced: 10K ohms | ||
Cross Talk | >80dB | ||
Damping Factor | >400 | ||
THD+N | <0.05% 20Hz-20KHz | ||
Connect | Input：XLR / Output：SPEAKON | ||
Overload Protect | POWER,DC FAULT, Output relay switch | ||
Power AC | 220V~240V | ||
Product Size | 650x585x158MM | ||
Net Weight | 18.5 KG | 20.5 KG | 22.5 KG |
Gross Weight | 22 KG | 24KG | 26KG |
The MK8008 Professional Power Amplifier is AUWAY’s innovative 3-channel solution, designed to fill a gap in professional audio systems that require flexible, high-density amplification. Unlike traditional 2 or 4-channel amplifiers, the MK8008 delivers 3x800W @8Ω (stereo) and 3x1200W @4Ω, with a unique bridged mono configuration of 2400W+800W @8Ω—perfect for setups that need a mix of high-power and standard outputs.
Housed in a compact chassis with a pure copper transformer (for efficient power transfer) and premium components (sealed transistors, large capacitors), it maintains AUWAY’s reference-class audio quality: <0.05% THD+N (20Hz-20kHz), >80dB channel separation, and >400 damping factor. The MK8008 is ideal for applications like cinema surround sound, house of worship main/sub/delay systems, and live sound monitor setups—where 3 zones of audio are needed.
The 3-channel configuration is the MK8008’s defining feature. It’s more versatile than 2-channel amplifiers (which require multiple units for 3-zone systems) and more efficient than 4-channel amplifiers (which waste a channel in 3-zone setups). For example, you can power main speakers (1 channel), side fills (1 channel), and a subwoofer (1 channel)—all with one amplifier—reducing rack space, wiring complexity, and cost. This makes it a favorite among AV engineers for systems with specific 3-zone needs.
Unlike some multi-channel amplifiers that reduce power to secondary channels when under load, the MK8008 delivers 3x800W @8Ω (and 3x1200W @4Ω) consistently across all 3 channels. This ensures uniform sound quality in multi-zone systems—such as cinema surround (left/center/right) or church main/sub/delay—where each channel needs equal power to maintain audio balance. No channel is “secondary,” so every zone gets the same high-quality sound.

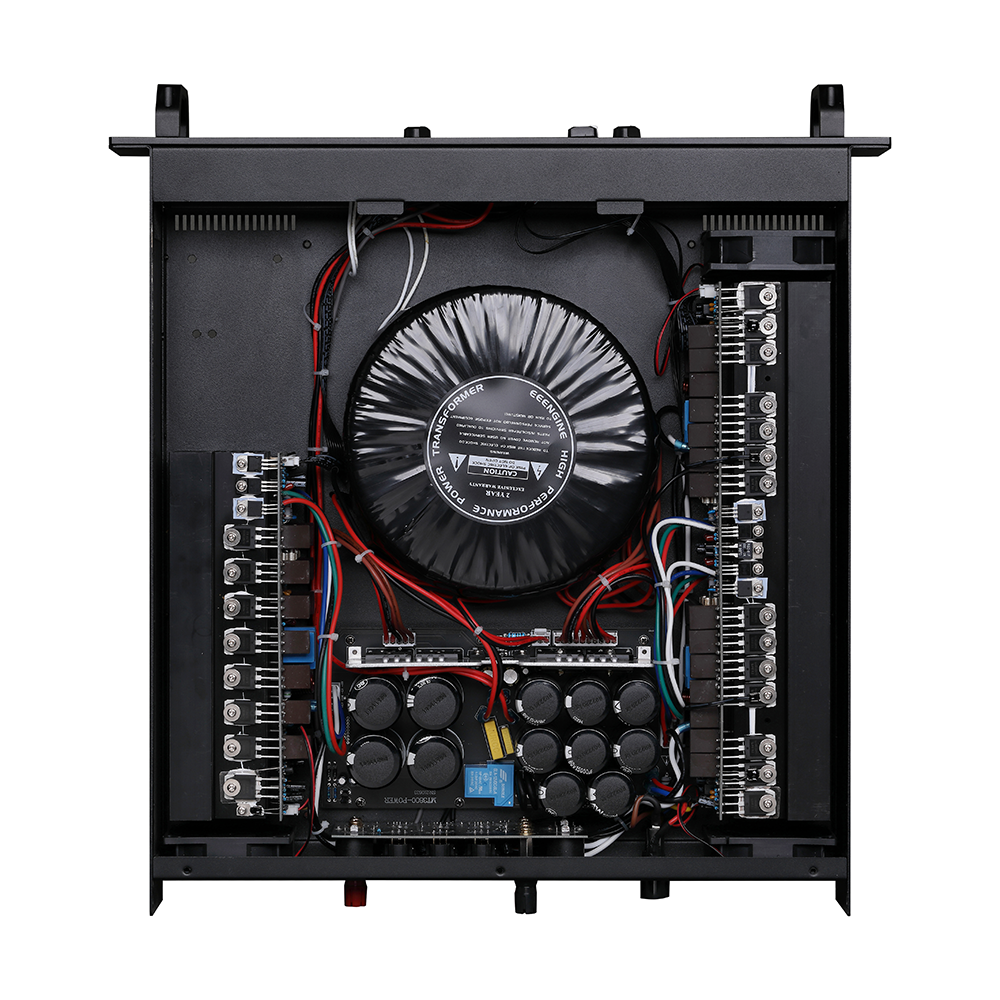

The MK8008 is built to withstand both permanent installations and touring use. Its pure copper transformer (shielded with PVC to prevent interference) and sealed imported transistors handle vibration from touring transport and constant use in installations. The amplifier also includes multi-stage protection (thermal, DC, short-circuit) to handle the rigors of professional environments—from the dust of festival stages to the humidity of cinema projection rooms.
Cinemas require 3+ channels for surround sound (left, center, right) and a subwoofer (LFE), making the MK8008 a perfect fit. Its 3x800W @8Ω output powers left/center/right speakers, while the bridged mono 2400W @8Ω option drives the LFE subwoofer. The low distortion (<0.05% THD+N) ensures accurate reproduction of film soundtracks—from subtle dialogue to explosive action sequences—preserving the director’s audio vision.
Churches often use a 3-zone audio setup: main sanctuary speakers, a subwoofer for low-end reinforcement, and delay speakers for rear seating. The MK8008’s 3 channels power each zone independently, with >80dB channel separation preventing sound leakage between zones. The mixed impedance support allows using 8Ω main speakers and 4Ω delay speakers without issues, making it easy to integrate into existing church audio systems.
Touring bands need monitor systems that let each musician hear their custom mix, and the MK8008’s 3 channels power multiple floor monitors (e.g., lead vocal, guitar, drums). The >400 damping factor provides precise control over monitor speakers, ensuring tight bass and clear highs—critical for musicians to stay in time and tune. The compact design (product dimensions: 650x585x158MM) also fits into small touring racks, saving space for other equipment.
A 3-channel amplifier is more efficient for 3-zone systems. A 4-channel amplifier would leave one channel unused, wasting rack space and money, while a 3-channel unit uses every channel—reducing the number of amplifiers needed and simplifying wiring. For example, a cinema using the MK8008 needs only one amplifier for left/center/right speakers, whereas a 4-channel model would require an extra unit (or leave a channel idle) to power the LFE subwoofer.
The MK8008’s bridged mono mode combines two channels to deliver 2400W @8Ω, while the third channel remains independent (delivering 800W @8Ω). This is ideal for setups that need one high-power channel (e.g., a subwoofer or main PA cabinet) and one standard channel (e.g., side fill speakers). For example, a church could use the bridged channel for a subwoofer and the independent channel for delay speakers—all with one amplifier.
The MK8008 has a net weight of 22.5 KG and a gross weight of 26 KG—lighter than many 4-channel amplifiers (e.g., the PS41500 at 40 KG), making it easy to lift and install in racks. Its compact size fits into standard 19-inch racks, and the front-panel controls (gain knobs, power switch) simplify setup. No specialized tools are needed—just standard rack mounting hardware (included).
Yes, the MK8008’s 20Hz-20kHz (±0.5dB) frequency response and <0.05% THD+N support high-resolution audio (up to 24-bit/192kHz). While it’s designed for professional use, it can also be used in high-end home theaters or small recording studios where accurate reproduction of high-frequency details (e.g., orchestral strings, vocal harmonies) is critical. The pure copper transformer ensures minimal interference, even in home environments with other electronics (e.g., TVs, game consoles).
