Professional Multi-channel Amplifier for Venues​

The PS41000 professional power amplifier delivers 4x1000W at 8Ω (4x1500W at 4Ω) in a compact 3U chassis, featuring 16 high-capacity capacitors and 16 power transistor pairs per channel. Designed for demanding installations and touring systems, this amplifier provides exceptional power density and system flexibility for complex audio applications.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • PS41000

  • AUWAY



Model

PS41000

PS41300

PS41500

8Ω Stereo

4x1000W

4x1300W

4x1500W

4Ω Stereo

4x1500W

4x1950W

4x2250W

8Ω Bridge

2x3000W

2x3900W

2x4500W

Channels

4

Output Circuit

Class H

Frequency Response

20Hz-20KHz(+0/-1dB)

Input Sensitivity

0.775V / 1.0V / 1.4V

Input Impedance

>20K />10K

Cross Talk

>-60dB

Damping Factor

>400

THD+N

<0.05%

Connect

Input:XLR / Output:SPEAKON

Overload Protect

POWER,DC FAULT, output relay switch

Amplifier Protect

Overheat: Output mute (heat sink temperature>) (auto recovery)

Power AC

220V~240V

Size(WxLxH)

480x463x130MM

483x560x130MM

Product Size

605x580x198MM

660x580x198MM

660x580x198MM

Net Weight

33 KG

39 KG

40 KG

Gross Weight

37.5 KG

44 KG

44.5 KG



PS41000 Power Amplifier Multi-Channel Flexible Deployment

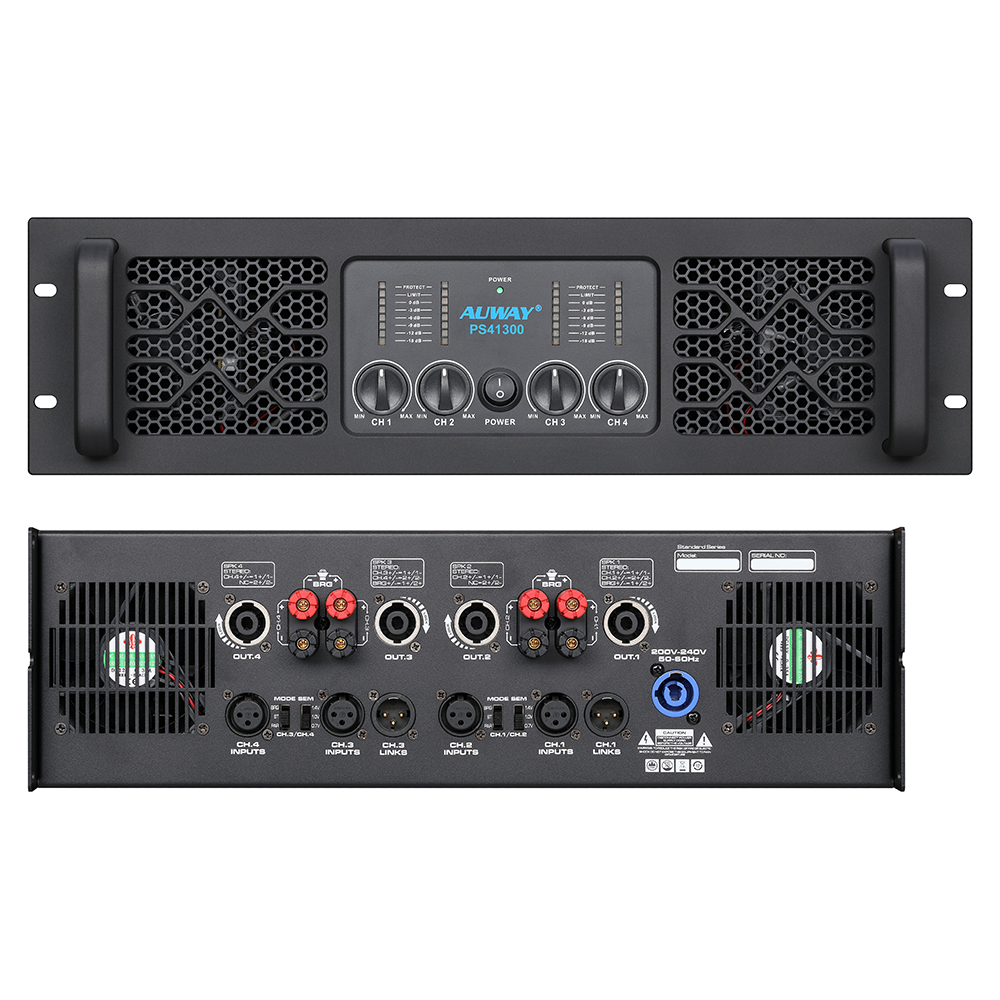

Auway Professional Multi-Channel Power Amplifier is engineered for complex audio systems requiring precise signal distribution and consistent performance. This modular-designed amplifier integrates advanced Class H circuitry to deliver high efficiency (up to 85%) while maintaining ultra-low distortion (<0.02% @ 1kHz). Its compact 3U rack-mount chassis houses 4-8 independent channels, each with dedicated signal processing, making it ideal for multi-zone audio setups. The sleek aluminum front panel features LED status indicators for each channel, providing at-a-glance monitoring of power, signal, and protection modes.


PS41000 Power Amplifier | Class H Circuitry & Independent Channel Processing


Power & Sound Optimization

Class H topology reduces heat generation by 40% compared to traditional Class AB designs, enabling continuous operation in high-temperature environments.

Each channel delivers 200W @ 8Ω / 350W @ 4Ω with a frequency response of 20Hz-20kHz (±0.5dB) and signal-to-noise ratio exceeding 103dB.

Built-in IIR/FIR filters allow precise tuning of crossover points and phase alignment for seamless speaker integration.


Professional multi-channel amplifier


PS41000 Power Amplifier Daisy-Chain Support


XLR balanced inputs and Speakon/terminal block outputs support both professional and consumer audio equipment.

Comprehensive protection system includes short-circuit, over-temperature, DC offset, and overload safeguards with automatic recovery.

Daisy-chain capability enables expansion up to 32 channels via RS485 control interface, suitable for large-scale multi-zone projects.


Application Scenarios


Multi-room commercial audio (hotels, shopping malls, museums)

Theatrical productions and live performances requiring zone-specific audio

Conference centers with distributed microphones and playback systems

Broadcast studios for simultaneous program distribution


FAQ


Q: Can channels be reconfigured for different speaker loads?

A: Yes, each channel supports 2Ω-16Ω loads and can be independently set to stereo, parallel, or bridge-mono modes via the rear-panel DIP switches.


Q: Is remote monitoring available?

A: Absolutely. The amplifier supports web-based monitoring through Ethernet connection, displaying real-time voltage, current, and temperature data.


Q: What’s the warranty period?

A: 3-year manufacturer warranty covering parts and labor, with optional 2-year extension for commercial applications.
