K-4.1000 Professional 4-Channel Power Amplifier - 4x1000W @8Ω Class H Touring Amplifier

Ultra-Dense 4-Channel Powerhouse with Premium Sound Quality

The K-4.1000 redefines power density with its advanced Class H technology, delivering 4x1000W at 8Ω (4x1400W @4Ω) in an incredibly compact 2U rack-mount chassis. Designed for touring professionals and demanding installations, this amplifier combines exceptional audio fidelity with massive power output, making it ideal for distributed sound systems, monitor applications, and multi-zone installations where space efficiency is critical.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • K-4.1000

  • AUWAY

Description

Ultra-Dense 4-Channel Powerhouse with Premium Sound Quality

The K-4.1000 redefines power density with its advanced Class H technology, delivering 4x1000W at 8Ω (4x1400W @4Ω) in an incredibly compact 2U rack-mount chassis. Designed for touring professionals and demanding installations, this amplifier combines exceptional audio fidelity with massive power output, making it ideal for distributed sound systems, monitor applications, and multi-zone installations where space efficiency is critical.



Key Technological Advantages

Advanced Class H Efficiency

· Class H topology for superior efficiency and sound quality

· 16 high-capacity audio capacitors for instantaneous power delivery

· Pure copper toroidal transformer for clean, stable power

· 40V/μs slew rate for impeccable transient response

Reference-Grade Audio Performance

· <0.05% THD across full bandwidth (20Hz-20kHz)

· 20Hz-20kHz (±0.5dB) flat frequency response

· >80dB channel separation for pristine imaging

· >400 damping factor for tight, controlled bass

Professional Power Specifications

· Stereo Mode: 4x1000W @8Ω / 4x1400W @4Ω

· Bridge Mono Mode: 2x2800W @8Ω

· Multi-voltage operation: 220-240V AC

· Ultra-compact 2U design (483mm wide)



Engineered for Professional Reliability

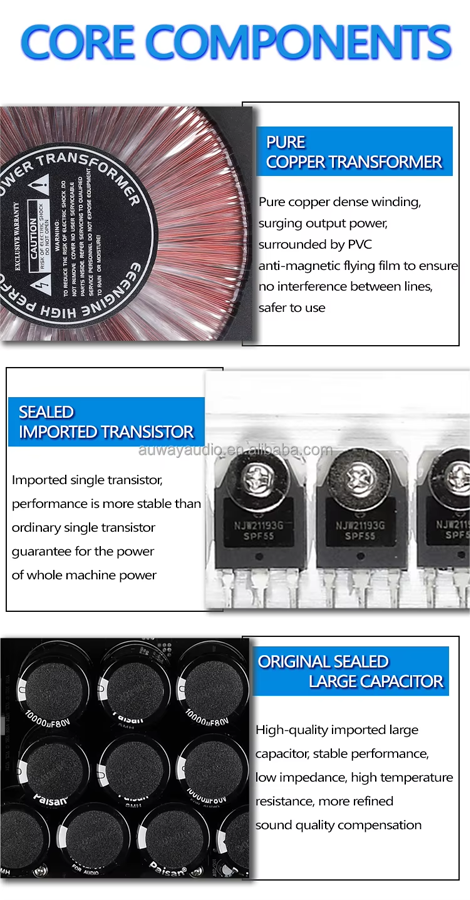

Premium Power Components

· High-current toroidal transformer with pure copper windings

· 16 premium audio-grade capacitors for power reserve

· Oversized heat sinks with thermal monitoring

· Gold-contact Speakon outputs for secure connections



Comprehensive Protection Systems

· Multi-stage protection circuitry:DC offset protection/Over-temperature protection (auto-recovery)/Short-circuit protection/Power rail monitoring/Output relay muting

Professional Monitoring & Control

· Selectable input sensitivity (0.7V/1.0V/1.5V)

· XLR balanced inputs with 20kΩ impedance

· Front-panel status indicators:Power/Signal/Clip/Protection



Ideal Professional Applications

Live Sound & Monitoring

· Monitor systems for large stages

· Distributed amplification for festivals

· Front-fill and delay systems

Fixed Installation Venues

· Multi-zone conference systems

· House of worship sound reinforcement

· Performance theaters and auditoriums

Specialty Audio Systems

· High-end nightclub installations

· Broadcast studio monitoring

· Portable rental systems


Specification

Model

K-4.1000

8Ω Stereo

4x1000W

4Ω Stereo

4x1400W

8Ω Bridge

2800W

Channels

4

Output Circuit

Class H

Frequency Response

20Hz-20KHz(+0/-0.5dB)

Input Sensitivity

0.7V / 1.0V / 1.5V

Input Impedance

Balanced: 20K ohms / Unbalanced: 10K ohms

Cross Talk

>80dB

Damping Factor

>400

THD+N

<0.05%20Hz-20KHz

Slew Ratio

40V/ms

Connect

Input:XLR / Output:SPEAKON

Overload Protect

POWER,DC FAULT, Output relay switch

Amplifier Protect

Overheat: Output mute (heat sink temperature >) (auto recovery)

Power AC

220V~240V

Rack Space

2U

Packing Size

650x585x158MM  1pcs/carton

Net Weight/ Gross Weight

28 KG / 30KG



Why Choose the K-4.1000?

 Industry-leading channel density in 2U form factor
 Class H efficiency with audiophile sound quality
 Massive power reserve with 16 premium capacitors
 Intelligent protection systems for worry-free operation
 Global installation ready with universal voltage range

K-4.1000 power amplifier

K-4.1000 power amplifier

4-channel rack amplifier

Power amplifier
