DP-10000
Auway

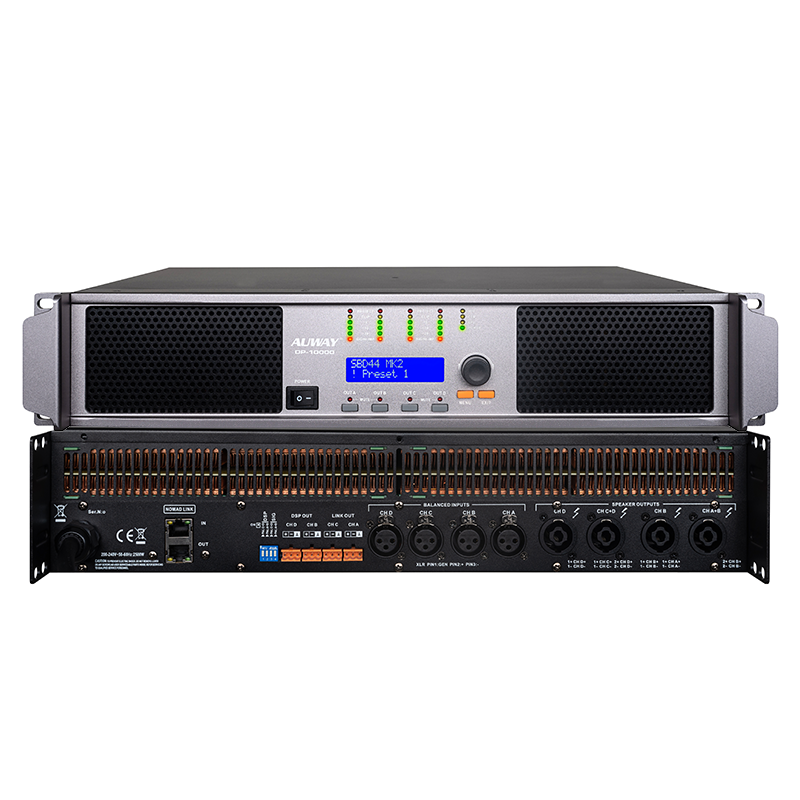

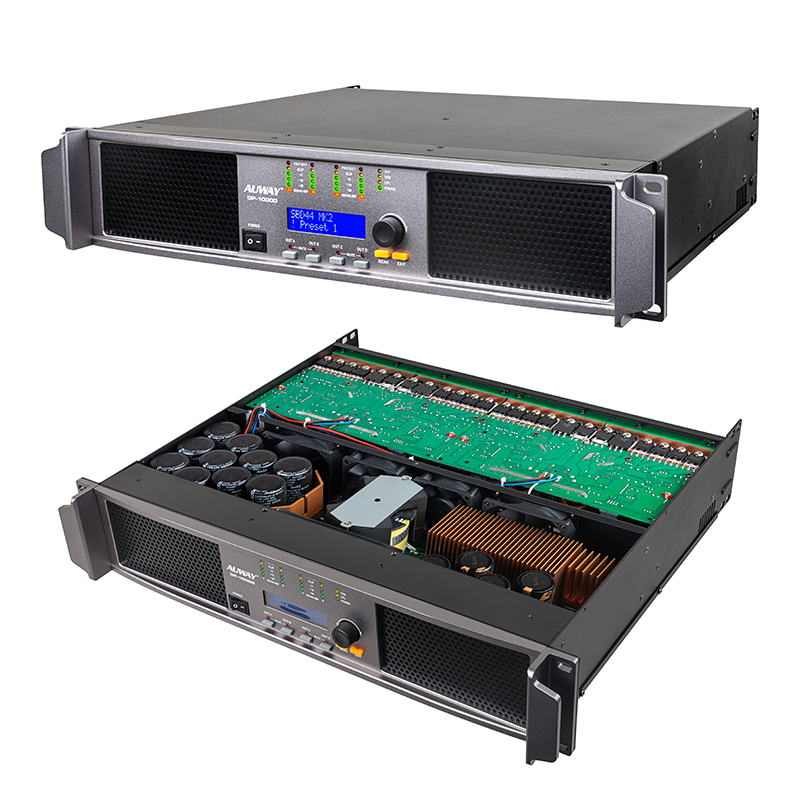

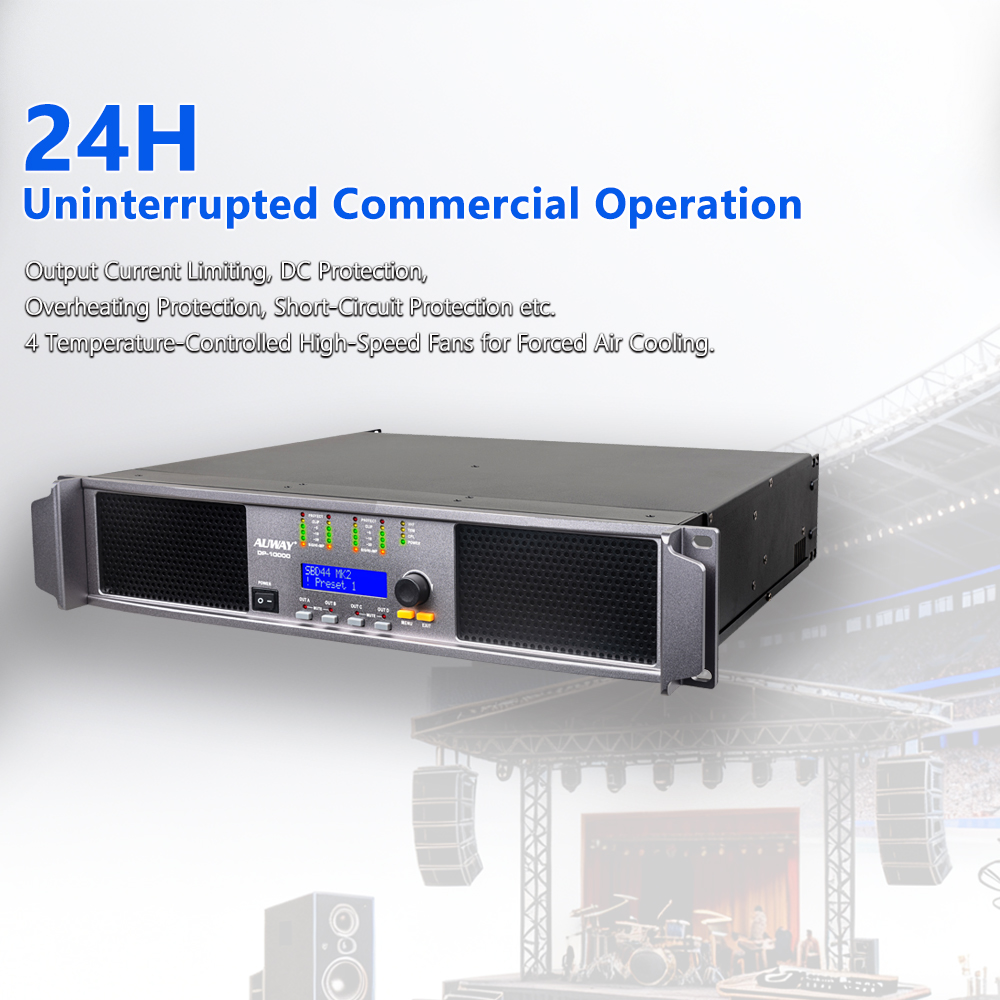

DP-10000 With DSP Description
Experience professional audio performance redefined with the DP-10000, a cutting-edge TD-class amplifier engineered to deliver exceptional power and versatility—leveraging the trusted technical specifications of the FP10000Q, now enhanced with a built-in DSP for unrivaled sound control.

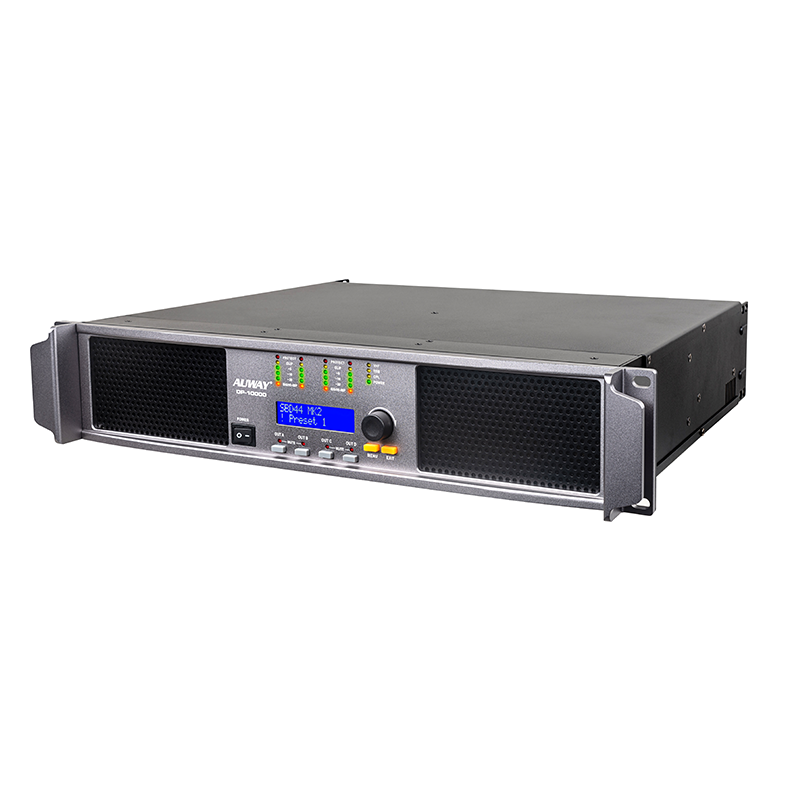

Designed for portability without compromising on performance, this 2U rack-mount amplifier is compact and lightweight, making it ideal for touring, live events, installations, or studio use. The integrated DSP (Digital Signal Processor) stands as its standout feature, offering precise sound shaping capabilities: adjust EQ, crossover points, delay, and gain settings with intuitive controls, ensuring your audio meets the exact demands of any venue or application.
Equipped with a clear, easy-to-read display, the DP-10000 provides real-time feedback on settings, signal levels, and system status, simplifying operation even in low-light environments. Complementing its functional design is a sleek new front panel—blending modern aesthetics with ergonomic layout, featuring accessible knobs and indicators for quick adjustments on the fly.

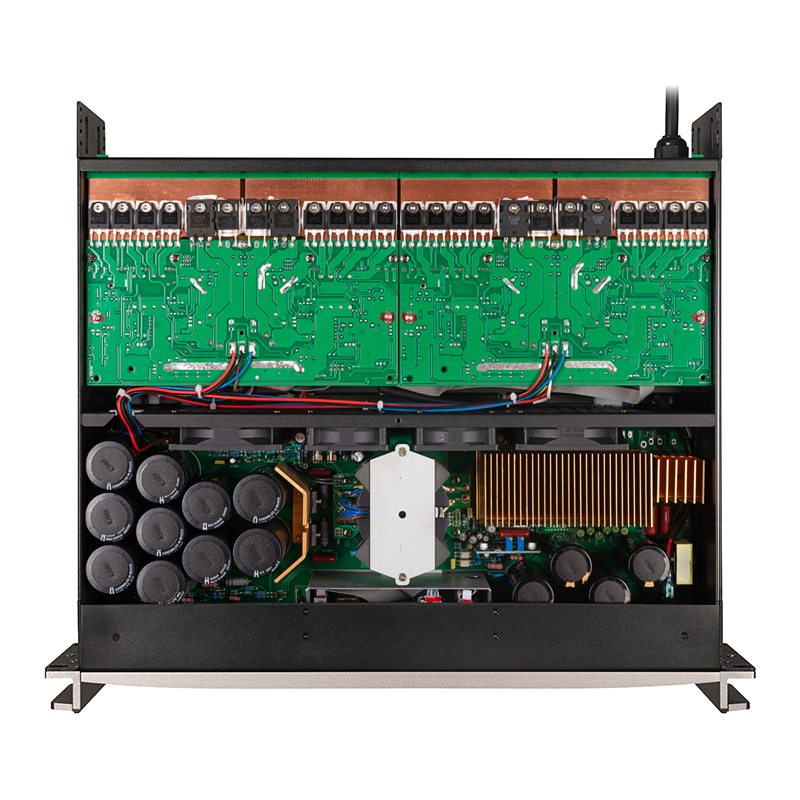

Built on the FP10000Q’s robust foundation, the DP-10000 delivers reliable power output, low distortion, and efficient thermal management, ensuring consistent performance during extended use. Whether you’re powering speakers for a concert, conference, or permanent installation, this amplifier combines professional-grade DSP functionality, portability, and user-centric design to elevate your audio experience.
Key Highlights
✅ Built-in DSP for precise sound customization
✅ 2U rack-mount design for ultimate portability
✅ High-visibility display for real-time monitoring
✅ Newly redesigned front panel with intuitive controls
Specification
型号Model | DP-1000 |
8Ω立体声输出功率 8Ω Stereo | 4x1350W |
4Ω立体声输出功率 4Ω Stereo | 4x2150W |
2Ω立体声输出功率 2Ω Stereo | 4200W |
8Ω 桥接单声道输出 8Ω Bridge | 2x5000W |
4Ω 桥接单声道输出 4Ω Bridge | 2x8000W |
特点 Feature | With DSP |
增益 Gain | 35 dB and VPL:150V |
谐波失真Harmonic distortion | 1W,20Hz~20kHz,<0.1% |
信噪比 Signal-to-Noise Ratio | >112dBA |
频率响应 Frequency Response | 6.8Hz~34kHz (1W into 8 ohms)+0/-3dB |
输入阻抗 Input Impedance | 20K ohms |
输出阻抗 Input Impedance@100Hz | 32 mOhm |
串音 Cross Talk(1kHz) | >70dB |

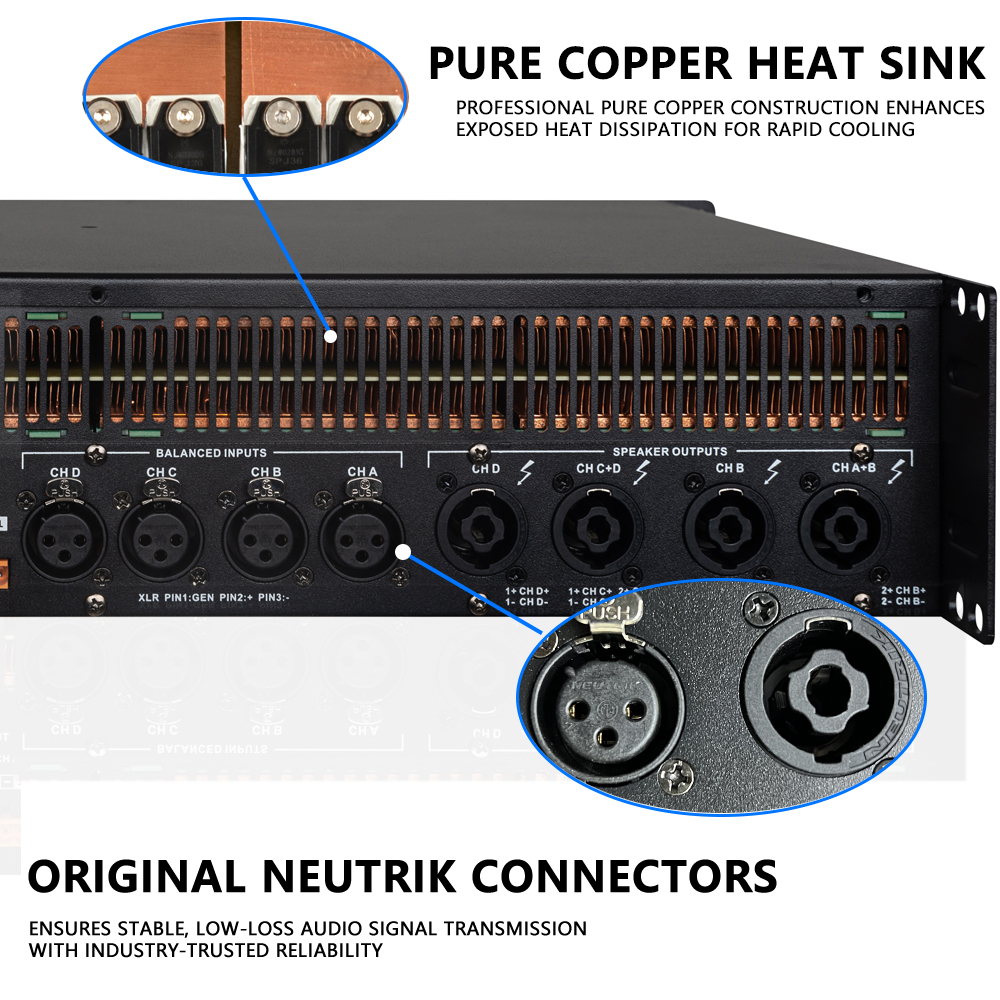

连接器 Connector | Input: 3-pin XLR female / Output: Speakon socket |
保护 Protection | 短路、断路、直流电压、过热、射频、超低频、电流峰值限制器(CPL)保护 Short circuit, open circuit, DC voltage, overheating, radio frequency, ultra-low frequency, current peak limiter (CPL) protection |
电源规格 Power Specifications | AC 220V(±10%)50-60Hz |
机箱尺寸 Size(WxLxH) | 483x395x88MM |
包装尺寸 Packing Size | 600x595x195MM |
净重 Net Weight | 16 KG |
重量 Gross Weight | 18.5 KG |
Application Scenarios
1. Live Concerts & Music Performances
(Live sound reinforcement for bands, solo artists, and music festivals—DSP precision optimizes sound for large venues, while 2U portability simplifies tour logistics.)
2. Indoor & Outdoor Events
(Weddings, corporate galas, graduation ceremonies, and outdoor festivals—compact 2U design fits tight setups, and the built-in display enables quick on-site adjustments.)
3. Nightclubs, Bars & Restaurants
(Background music or live performance sound systems—sleek new panel design blends with venue aesthetics, and DSP tailors audio to acoustic environments.)
4. Church Sound Systems
(Sunday services, choir performances, and religious gatherings—reliable power output (based on FP10000Q specs) and DSP customization suit both small chapels and large auditoriums.)
5. School Auditoriums & Theaters
(Plays, musicals, student performances, and assembly events—2U portability eases storage/transport, and the display simplifies operation for staff/volunteers.)
6. Studio Monitoring & Recording
(Professional studio playback and monitoring—low distortion (from FP10000Q foundation) and DSP sound shaping support precise audio production.)
7. Commercial Installations
(Shopping malls, hotels, retail stores, and office buildings—permanent audio system integration with DSP’s flexible tuning for consistent sound across spaces.)
8. Sports Venues & Stadiums
(Announcements, background music, and event sound for gyms, stadiums, and sports halls—robust performance and DSP ensure audio clarity over crowd noise.)
