Most Class TD amplifiers are rated for 4-ohm and 8-ohm loads, not 2-ohm. While some TD class amplifiers can tolerate brief 2-ohm operation, sustained low-impedance loads risk overheating, distortion, and hardware failure unless the unit is explicitly rated for it. Always check your amplifier's impedance specifications before connecting low-impedance speaker arrays.
Running a professional sound amplifier into a 2-ohm load is one of those decisions that can either unlock serious headroom—or send your gear to an early grave. For audio engineers and system integrators who work with stacked speaker arrays, subwoofer banks, or complex multi-speaker rigs, low-impedance operation is a daily reality. So the question isn't just academic: can your Class TD power amplifier actually handle it?
The answer depends on the specific amplifier, how it's designed, and what you're asking it to do. This post breaks down how TD class amplifiers respond to low-impedance loads, what the risks are, and how to get maximum performance from your setup safely.
Before getting into impedance specifics, it helps to understand what sets the TD class amplifier apart.
Class TD—sometimes written "Class-TD" or "TD class"—is a hybrid amplification topology. It combines the linear, musical output of Class AB with the high efficiency of Class D switching technology. The result is an amplifier that runs cooler, wastes less energy, and maintains low distortion across the frequency spectrum.
The Auway TD1500, for example, achieves 92% power conversion efficiency using this hybrid architecture. It delivers 2x1500W at 8Ω and 2x2250W at 4Ω, with a THD+N rating of less than 0.05% across the full 20Hz–20kHz range. That's studio-reference performance in a 2U touring chassis.
Crucially, Class TD amplifiers use a "tracking" power supply—the supply voltage dynamically follows the audio signal rather than staying fixed. This reduces heat and improves efficiency compared to traditional Class AB designs, but it also means the output stage operates under tightly managed conditions. Impedance loading directly affects how hard that output stage works.
Ohm's Law governs everything here. As speaker impedance drops, the amplifier must supply more current to deliver the same voltage. Halving impedance roughly doubles current draw—and power output increases accordingly, up to the limits of the power supply and output transistors.

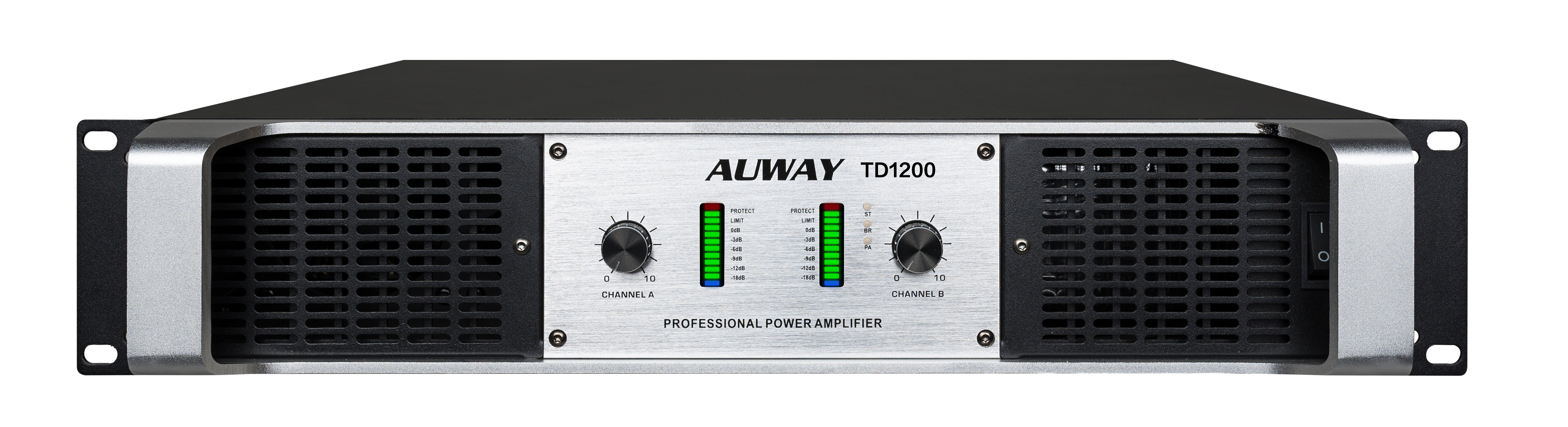

This is why manufacturers publish power ratings at multiple impedance levels. Looking at the Auway TD series as a reference point:
Model | 8Ω Stereo | 4Ω Stereo | 8Ω Bridge | 4Ω Bridge |
|---|---|---|---|---|
TD800 | 2x800W | 2x1200W | 2400W | 3600W |
TD1000 | 2x1000W | 2x1500W | 3000W | 4200W |
TD1200 | 2x1200W | 2x1800W | 3600W | 5000W |
TD1500 | 2x1500W | 2x2250W | 4500W | 6300W |
Notice that none of these models list a 2-ohm rating. That's deliberate. The TD series is rated down to 4Ω in stereo mode and 4Ω in bridge mono. Pushing the load further—to 2 ohms—takes the amplifier outside its rated operating range.
At 2 ohms, current demands can exceed the safe limits of the output transistors. Even with aerospace-grade components like those used in the TD1500—which includes power transistors with a 400% current reserve—sustained 2-ohm operation generates heat faster than thermal management systems can dissipate it.

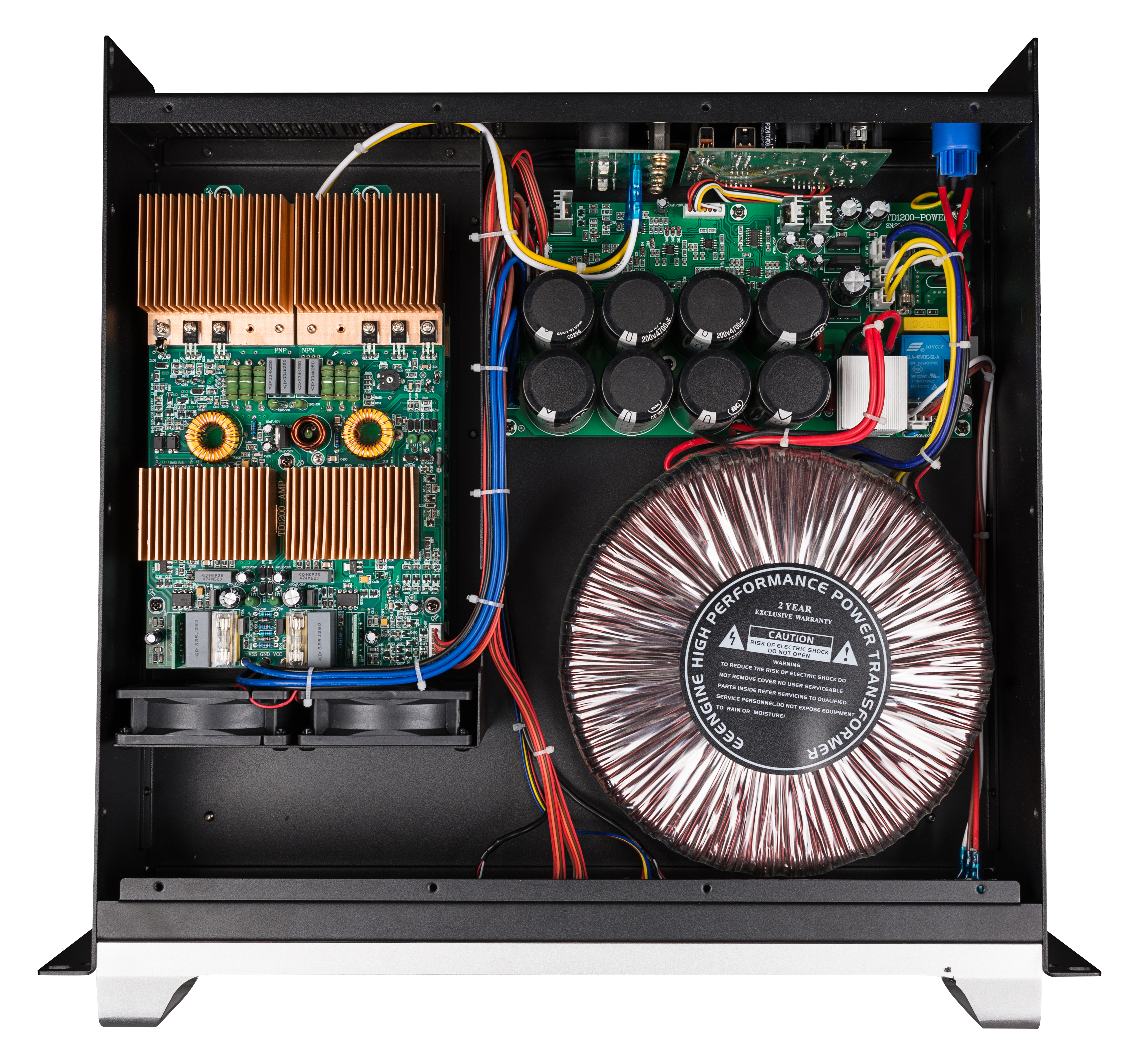

The TD1500 uses monolithic aluminum heatsinks with predictive thermal control, and its 8-stage protection network includes smart thermal management with auto-recovery. These systems exist precisely to handle transient stress. But protection circuits are not a substitute for correct system design.
Here's what typically happens when a Class TD amplifier is pushed into a 2-ohm load it wasn't designed for:
Thermal shutdown: The amplifier's thermal protection mutes the output to prevent transistor damage. Auto-recovery brings it back, but repeated cycling degrades components over time.
Increased distortion: Below the rated impedance, the output stage can no longer maintain its linearity. THD rises, audio quality suffers.
Reduced headroom: The power supply, even a high-efficiency switching design, struggles to maintain stable rail voltage at extreme current levels.
Long-term component stress: Even if the amplifier doesn't shut down, repeatedly stressing transistors beyond their rated current shortens their lifespan.
Most speaker cabinets are rated at 8Ω or 4Ω. A 2-ohm load typically appears when multiple speakers are wired in parallel. For example, two 4Ω cabinets wired in parallel present a 2-ohm load to the amplifier output.
This is common in subwoofer arrays, dual-speaker monitor systems, and distributed PA setups where installers try to maximize the number of speakers per amplifier channel to reduce rack space and cost.
The problem: reducing impedance to increase speaker count puts the entire system at risk if the amplifier isn't rated for it.
If your application genuinely requires driving multiple speakers per channel, there are better approaches than forcing a 2-ohm load onto an amplifier rated for 4Ω minimum.
Use the bridge mono mode. The TD1500 delivers 4500W into 8Ω in bridge mono. Two 8Ω speakers in parallel give you a 4Ω bridge load—within spec—with massive headroom for even the most demanding applications like stadium PA systems or EDM festival rigs.
Select an amplifier rated for 2 ohms. Some Class D switching amplifiers are explicitly designed for 2-ohm stability. If 2-ohm operation is a firm requirement, spec an amplifier built for it rather than pushing a TD class amplifier beyond its range.
Match impedance at the system design stage. Professional system design accounts for real-world impedance loads before a single cable is run. Use speaker management software and impedance calculators during the design phase, not after.
Add a signal processor. DSP-based speaker management systems can apply limiting and crossover functions that protect both amplifiers and speakers, acting as an intelligent buffer between your signal chain and your output stage.
Within its rated impedance range—4Ω to 8Ω stereo, 4Ω to 8Ω bridge—the Auway TD1500 is a genuinely exceptional professional sound amplifier. Its damping factor exceeds 400, which means it maintains tight, accurate control over woofer cones even at high SPL levels. Channel separation exceeds 75dB. Frequency response stays within ±0.3dB across the full 20Hz–20kHz band.
For stadium touring, megachurch reinforcement, premium nightclub systems, and large-scale live events, the TD1500 represents what a modern Class TD power amplifier can do when operated within its design parameters.
A Class TD amplifier is one of the most efficient and high-performing topologies available in professional audio today. The TD class architecture genuinely bridges the gap between sonic quality and power efficiency—but it's not immune to the laws of physics.
Running a TD class amplifier at 2 ohms without an explicit 2-ohm rating from the manufacturer is a risk not worth taking. The short-term gain in output power is outweighed by thermal stress, distortion, and reduced product lifespan.
For most professional applications—touring, installation, live event production—a well-specified Class TD amplifier like the Auway TD1500 operating at 4Ω or 8Ω delivers all the power, fidelity, and reliability the job demands. Match your impedance correctly, design your system intelligently, and your amplifier will perform at its best for the long haul.
Most Class TD amplifiers, including the Auway TD series, are not rated for 2-ohm operation. The minimum rated impedance for the TD1500 is 4Ω in stereo mode. Operating below this risks thermal shutdown, increased distortion, and long-term component damage.
A Class D amplifier uses a fixed switching power supply and pulse-width modulation to reproduce audio. A Class TD amplifier uses a tracking power supply that dynamically adjusts voltage in response to the audio signal, combining Class D efficiency with the linearity more typical of Class AB designs.
Use bridge mono mode. The Auway TD1500, for example, delivers 4500W at 8Ω in bridge mono—far exceeding its stereo output while keeping the load well within the safe operating range.
The amplifier's protection circuits will likely engage—muting output to prevent transistor damage. Repeated thermal cycling degrades internal components and shortens the amplifier's operational lifespan. Redesign the speaker array to present a 4Ω or higher load, or select an amplifier explicitly rated for 2-ohm operation.
Yes. The TD1500 features universal voltage operation (220–240V AC), a compact 2U chassis, rhodium-plated Speakon outputs, and an 8-stage protection network, making it well-suited for both touring productions and permanent venue installations.
