Professional 4-Channel Digital Power Amplifier - 4x1300W @ 8Ω Stereo High-Power Class D Amplifier

Our 4-channel digital power amplifier is a high-performance professional audio amplifier designed for demanding sound reinforcement applications. Utilizing advanced Class D amplifier technology , this 1.5U rack-mount power amp delivers 1300W per channel at 8 ohms with exceptional clarity and efficiency. Engineered for live sound, touring, and fixed installations , this lightweight yet powerful DSP amplifier is perfect for line array systems, stage monitors, and outdoor events .
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • P26.4

  • AUWAY

Our 4-channel digital power amplifier is a high-performance professional audio amplifier designed for demanding sound reinforcement applications. Utilizing advanced Class D amplifier technology , this  1.5U rack-mount power amp  delivers  1300W per channel at 8 ohms  with exceptional clarity and efficiency. Engineered for  live sound, touring, and fixed installations , this lightweight yet powerful  DSP amplifier  is perfect for  line array systems, stage monitors, and outdoor events .


Key Features

1. High Power & Efficiency

-  4x1300W @ 8Ω  (Stereo/Bridgeable)

-  Class D amplifier  design for  high efficiency  and  low heat dissipation

-  Switch-mode power supply (SMPS)  for stable performance in varying voltages

2. Premium Sound Quality

-  Ultra-low distortion  (<0.05% THD) for  crystal-clear audio reproduction

-  Wide frequency response  (20Hz–20kHz) for  full-range sound reinforcement

3. Compact & Lightweight Design

-  1.5U rack-mount chassis  saves space in  portable PA systems

-  Lightweight construction  (only 11 lbs/kg) for  easy transport

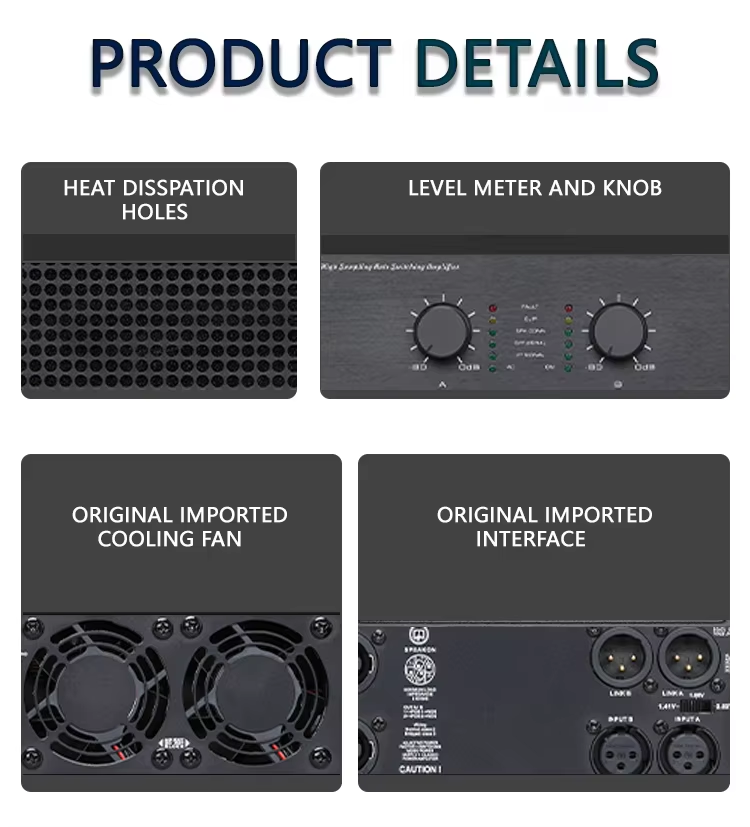

-  Forced-air cooling  with  variable-speed fans  for  quiet operation

4. Professional Connectivity & Protection

-  XLR/TRS combo inputs  for  balanced signal transmission

-  Speakon NL4 outputs  for  secure speaker connections

-  Advanced protection circuits  (short-circuit, thermal, DC, overload)

Applications

1. Live Sound & Touring

- Perfect for  powering line array systems  in  concerts, festivals, and theaters

- High power-to-weight ratio ideal for  mobile DJ setups and touring rigs

2. Outdoor Events & Installations

- Reliable performance for  large-scale outdoor PA systems

- Weather-resistant (optional) for  permanent installations

3. Commercial & House of Worship

- Excellent for  church sound systems, conference venues, and auditoriums

- Stable operation for  long-duration use

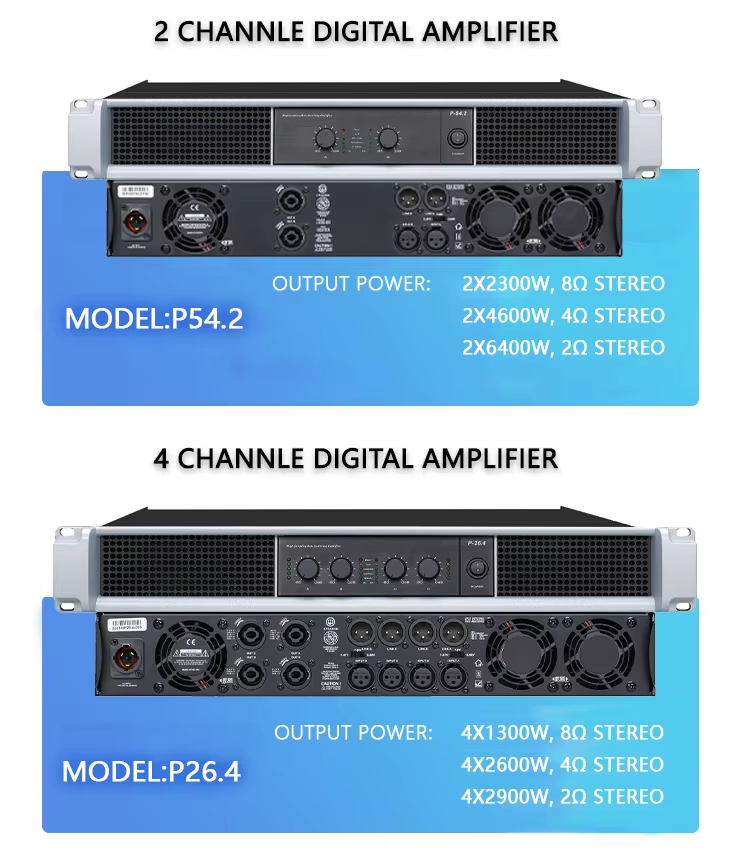

Specification of P26.4 4 channel power amplifier


型号Model

P26.4

8Ω Stereo

4x1300W

4Ω Stereo

4x2600W

2Ω Stereo

4x2900W

8Ω Bridge

NA

4Ω Bridge

NA

Channels

4

THD+N ( 1KHz AT 1W)

0.05 typically

Dynamic

112dB(A)

Response(20-20KHz AT 1W)

+/- 0.35dB

Noise floor

116uV(A)

Sampling

>384KHz

Efficiency @8Ω

91.7%

Sensitivity & Gain

1.40V@36.9dB/33.9dB/30.9dB

Input Impedence

Balance 9.5Kohm/un-balance4.75Kohm

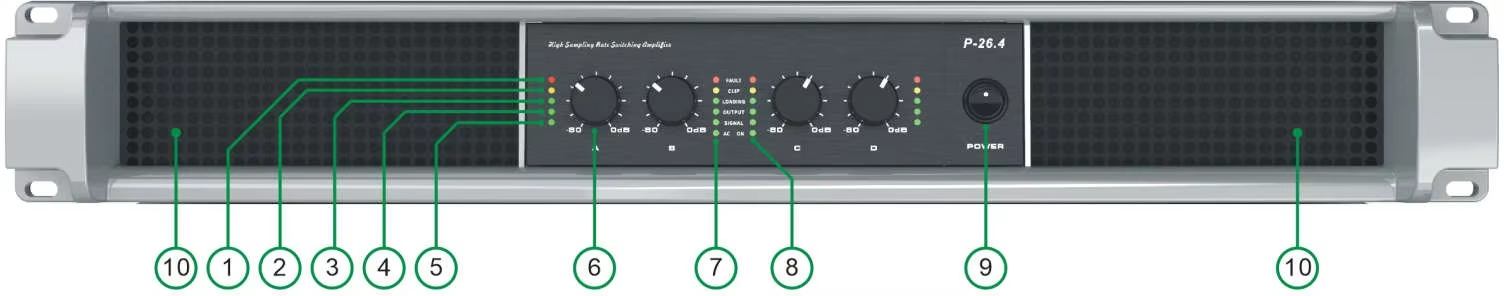

Indicators

faulty/clip/load/output/present/standby/active

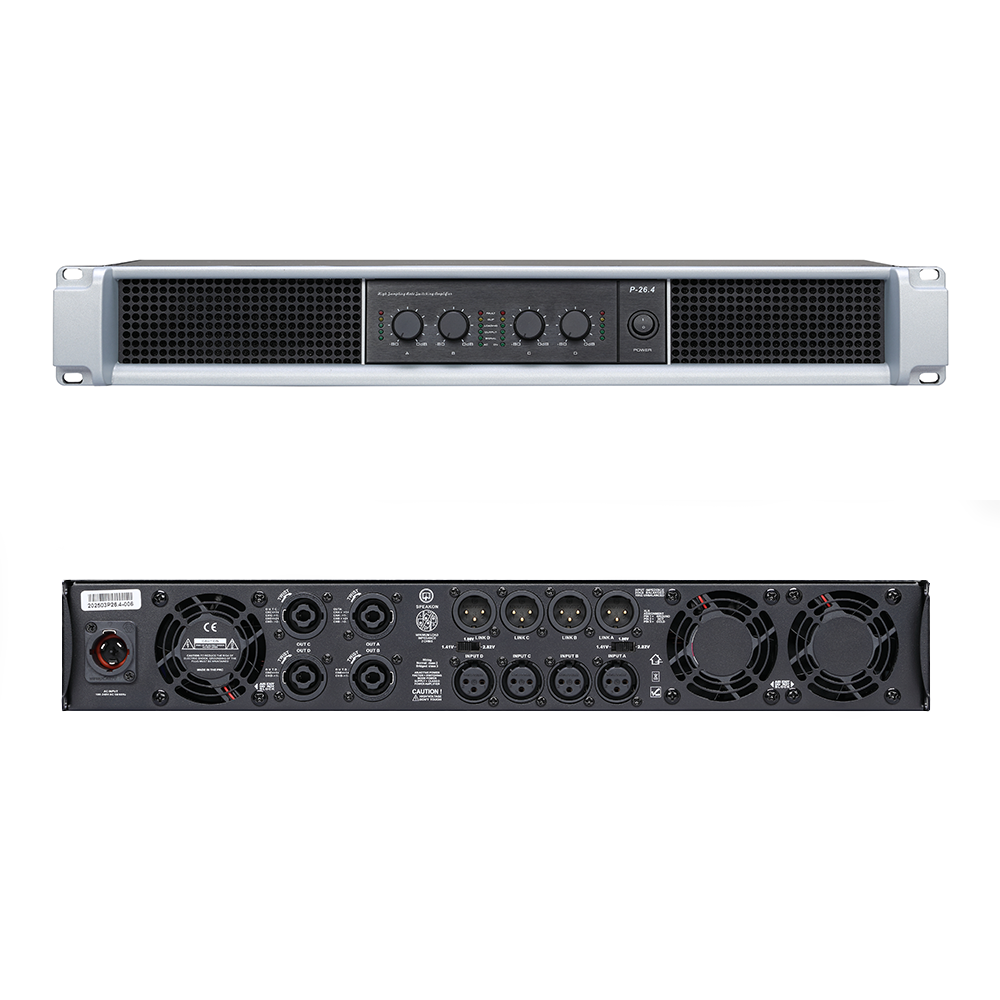

Output connector

NEUTRIK ® Speakon® NL4-MP x4

Input connector

NEUTRIK XLR NC3MAAV-1 x4 /NC3FAAV2-0 x4

Power

100-240V~50-60Hz

Chassis

Zinc-Plating Steel

Cooling

3 Silent Bearing DC Fan

Net weight

8.9kg

Gross weight

11.4kg

Shipping dimension

590x490x155 MM


4-channel power amplifierProfessional audio amplifierDigital Power Amplifier

4-channel power amplifier

Professional audio amplifier

Digital Power Amplifier
