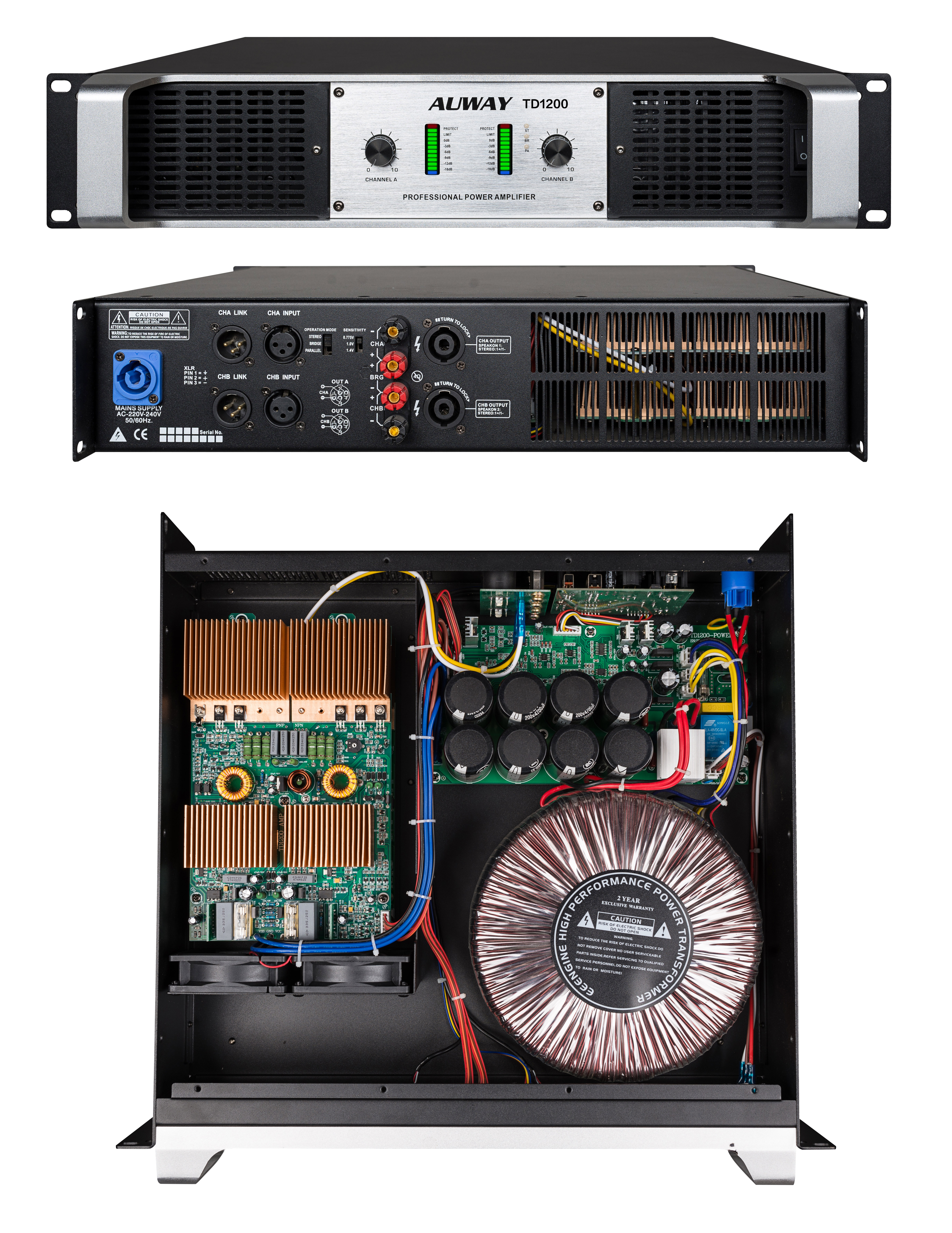

TD1200 Professional TD-Class Power Amplifier - 2x1200W @8Ω High-Performance Touring Amplifier

Premium 2U Amplifier with Exceptional Power Density and Sonic Fidelity

The TD1200 sets new standards in professional amplification with its revolutionary TD-class technology, delivering 2x1200W at 8Ω (2x1800W @4Ω) in an ultra-compact 2U rack-mount chassis. Designed for demanding touring applications and high-end installations, this amplifier combines crystal-clear vocal reproduction with thunderous bass response, making it ideal for concert venues, nightclubs, and large houses of worship where both power and audio quality are non-negotiable.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • TD1200

  • AUWAY

Description

Premium 2U Amplifier with Exceptional Power Density and Sonic Fidelity

The TD1200 sets new standards in professional amplification with its revolutionary TD-class technology, delivering 2x1200W at 8Ω (2x1800W @4Ω) in an ultra-compact 2U rack-mount chassis. Designed for demanding touring applications and high-end installations, this amplifier combines crystal-clear vocal reproduction with thunderous bass response, making it ideal for concert venues, nightclubs, and large houses of worship where both power and audio quality are non-negotiable.


Cutting-Edge Technology Features

dvanced TD-Class Architecture

· Hybrid amplification technology merging Class AB warmth with Class D efficiency

· 90% power conversion efficiency for reduced energy consumption

· 40V/μs ultra-fast slew rate for impeccable transient response

· Dual-wound pure copper transformer for noise-free power delivery

Reference-Class Audio Performance

· Ultra-low <0.05% THD across full frequency spectrum

· 20Hz-20kHz (±0.3dB) ruler-flat response for uncolored sound

· >70dB channel separation for pristine stereo imaging

· >400 damping factor for absolute bass control

Professional Power Specifications

· Stereo Mode: 2x1200W @8Ω / 2x1800W @4Ω

· Bridge Mono Mode: 3600W @8Ω / 5000W @4Ω

· Universal voltage operation: 220-240V AC

· Space-efficient 2U design (483mm rack width)

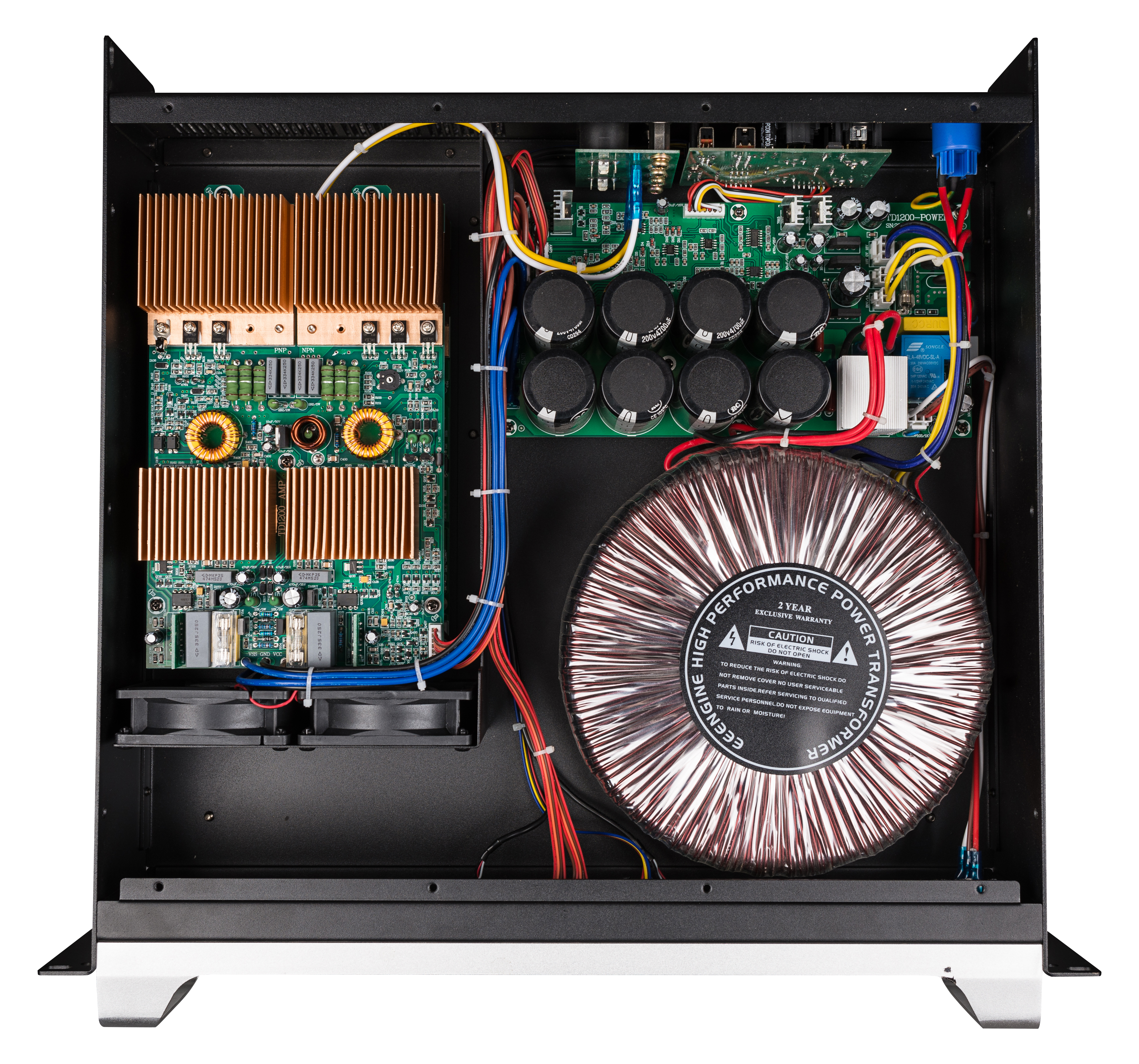

Professional-Grade Construction

Premium Components

· High-grade toroidal transformer with oxygen-free copper

· Military-spec power transistors with 300% current reserve

· 24k gold-plated Speakon outputs for optimal conductivity

· Massive heatsink array with smart thermal management

Comprehensive Protection System

· Multi-stage protection circuitry:

· DC offset detection

· Thermal overload with auto-recovery

· Short-circuit protection

· Infrasonic filtering

· Power rail monitoring

· Soft-start technology

Tour-Optimized Features

· Adjustable input sensitivity (0.775V/1.0V/1.4V)

· True balanced XLR inputs with 20kΩ impedance

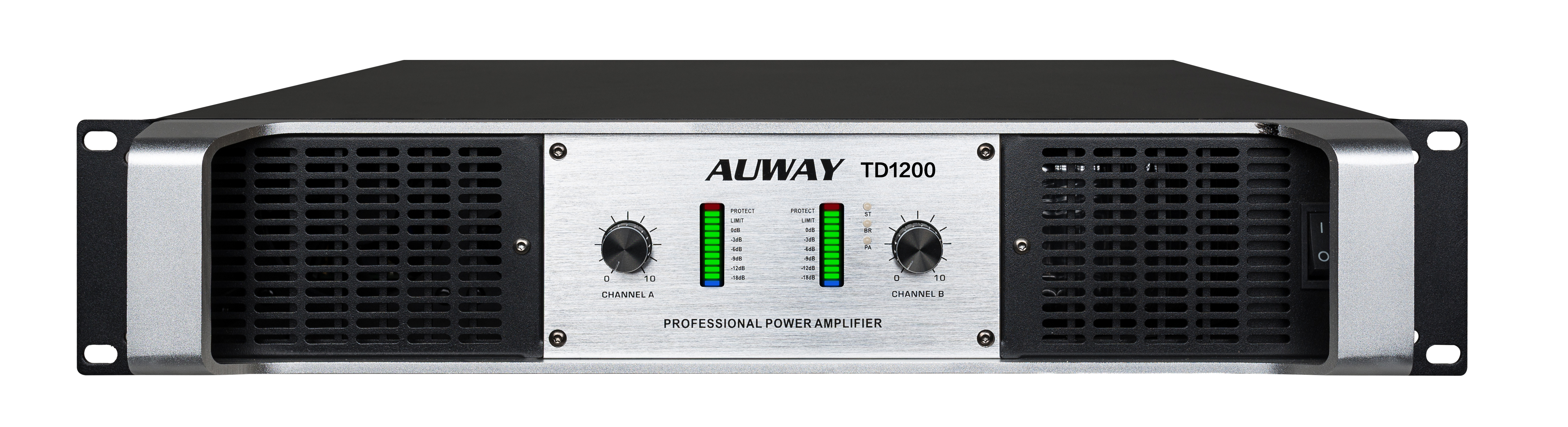

· Intuitive front-panel indicators:

· Power status

· Signal presence (-40dB)

· Clip warning

· Protection status



Professional Application Scenarios

Main Stage Sound Reinforcement

· Primary amplification for large concert venues

· Monitor systems for touring artists

· Main system for EDM festivals and clubs

Critical Installation Environments

· Megachurch sanctuary sound reinforcement

· Performing arts center main systems

· High-end conference and convention facilities

Mobile Production Systems

· Professional rental company inventory

· Corporate event production systems

· Temporary festival and outdoor installations


Specification

Model

TD800

TD1000

TD1200

TD1500

8Ω Stereo

2x800W

2x1000W

2x1200W

2x1500W

4Ω Stereo

2x1200W

2x1500W

2x1800W

2x2250W

8Ω Bridge

2400W

3000W

3600W

4500W

4Ω Bridge

3600W

4200W

5000W

6300W

Channels

2

Output Circuit

Class TD

Frequency Response

20Hz-20KHz(+0/-0.3dB)@1W

Input Sensitivity

0.775V / 1.0V / 1.4V

Input Impedance

Balanced: 20K ohms / Unbalanced: 10K ohms

Cross Talk

>70dB

Damping Factor

>400

THD+N

<0.05%20Hz-20KHz

Slew Ratio

40V/ms

Connect

Input:XLR / Output:SPEAKON

Overload Protect

POWER,DC FAULT, Output relay switch

Amplifier Protect

Overheat: Output mute (heat sink temperature >) (auto recovery)

Power AC

220V~240V

Rack Space

2U

包装尺寸 Packing Size

650x585x158MM  1pcs/carton

净重 Net Weight

17.5 KG

19.5 KG

19.5 KG

23.5 KG

重量Gross Weight

21 KG

23 KG

23 KG

27 KG



Why Audio Professionals Choose TD1200

✔ Unmatched power-to-size ratio in 2U form factor

✔ TD-class hybrid technology delivers both warmth and efficiency

✔ Road-proven reliability for continuous professional use

✔ Smart protection systems prevent equipment failure

✔ Global-ready design with universal voltage support
