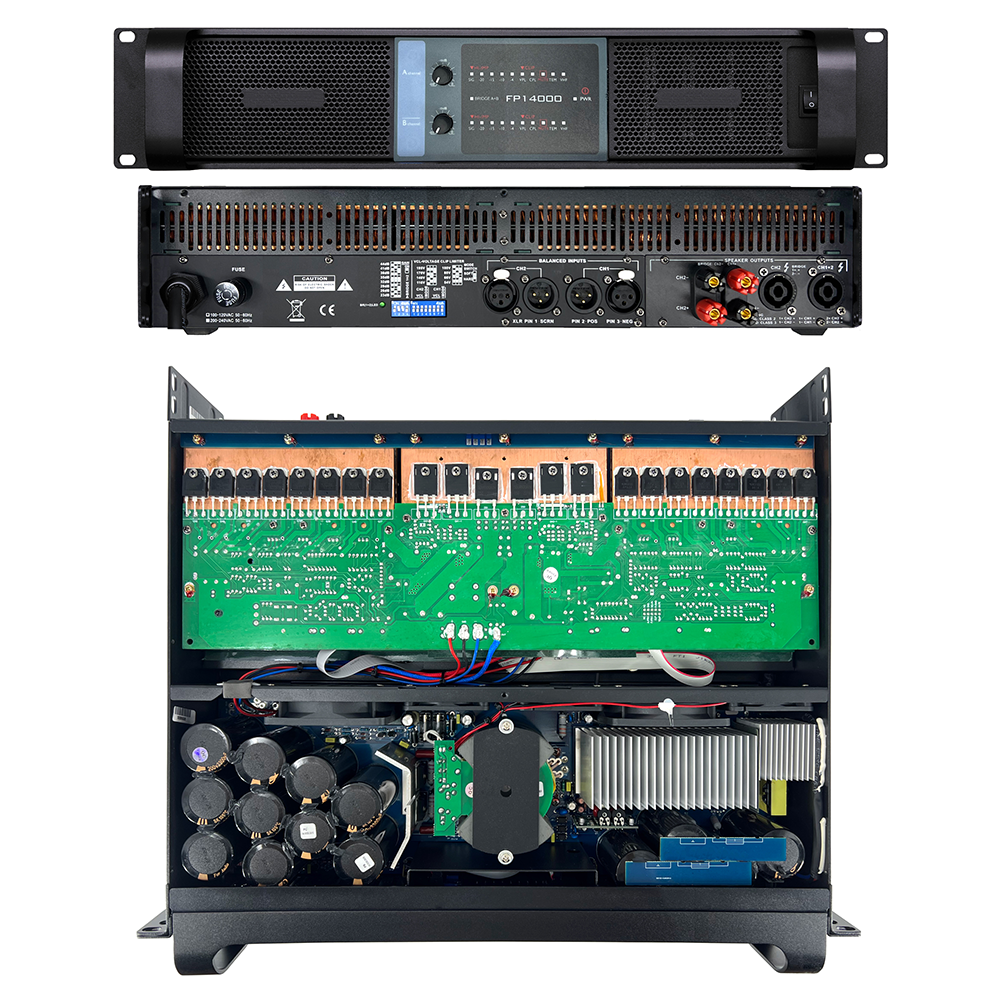

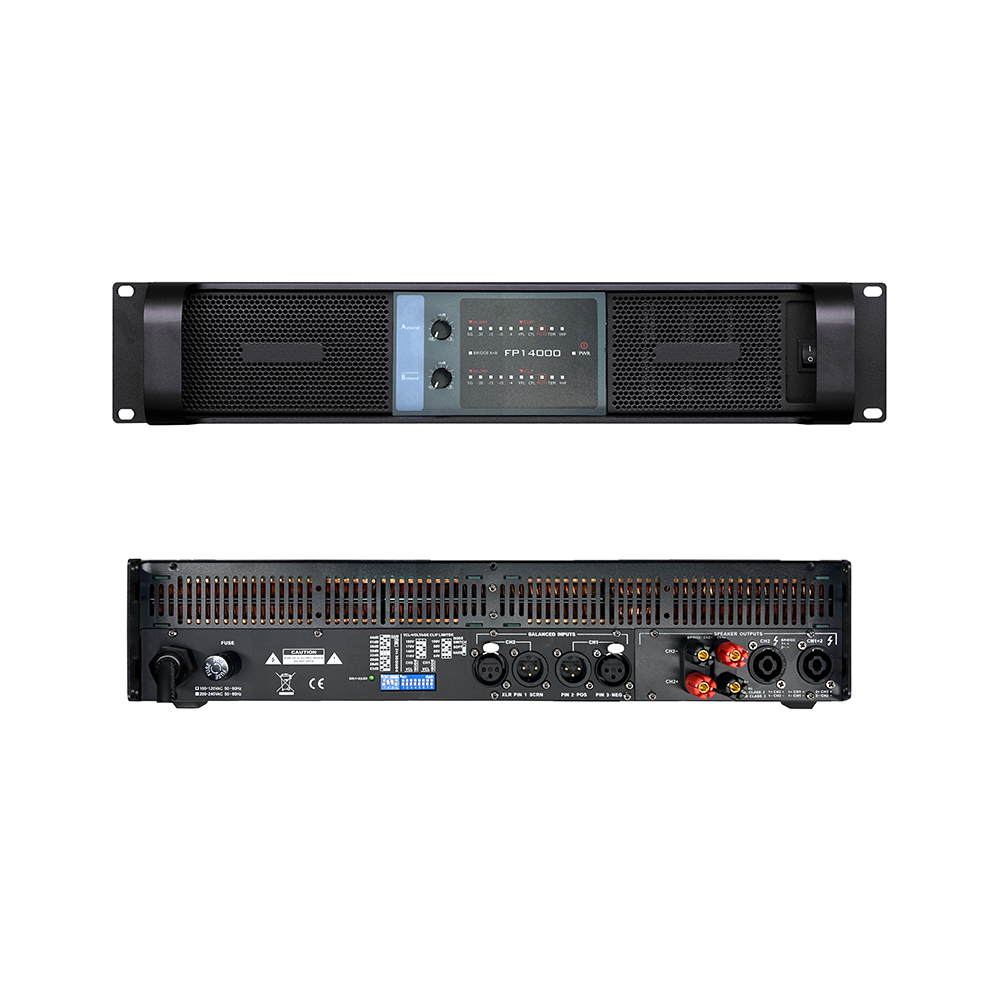

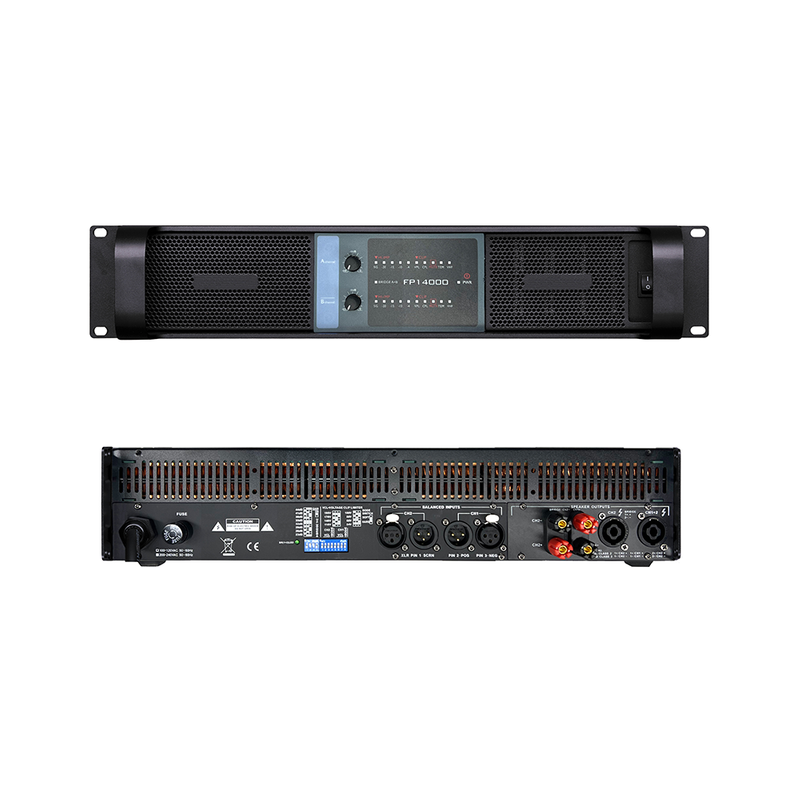

FP14000 Professional Digital Amplifier-2x4400W @4Ω High-Current Amplifier for Demanding Sound Systems

The FP14000 professional Digital Amplifier delivers extraordinary performance with 2x4400W at 4Ω (2x2350W @8Ω) in a remarkably compact 2U chassis. Engineered for touring professionals and fixed installations, this digital amplifier combines massive power output with exceptional audio fidelity, making it ideal for powering large speaker arrays in concert venues, festivals, and high-performance installations.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • FP14000

  • AUWAY

Overview

The FP14000 professional power amplifier delivers extraordinary performance with 2x4400W at 4Ω (2x2350W @8Ω) in a remarkably compact 2U chassis. Engineered for touring professionals and fixed installations, this digital amplifier combines massive power output with exceptional audio fidelity, making it ideal for powering large speaker arrays in concert venues, festivals, and high-performance installations.


Key Performance Features

1. Massive Power Output

  • 2x2350W @8Ω / 2x4400W @4Ω / 2x7000W @2Ω stereo operation

  • Bridge mono mode: 8800W @8Ω / 14000W @4Ω for extreme applications

  • 35dB fixed gain with 195V peak limiter (VPL) protection

2. Exceptional Audio Quality

  • Ultra-low <0.1% THD (20Hz-20kHz at 1W)

  • Extended 2Hz-34.2kHz frequency response (+0/-3dB)

  • >112dB signal-to-noise ratio for pristine audio reproduction

  • >70dB channel separation for precise stereo imaging

3.Professional-Grade Design

  • Compact 2U rack-mount chassis (483×396×88mm)

  • Tour-ready construction at just 13kg net weight

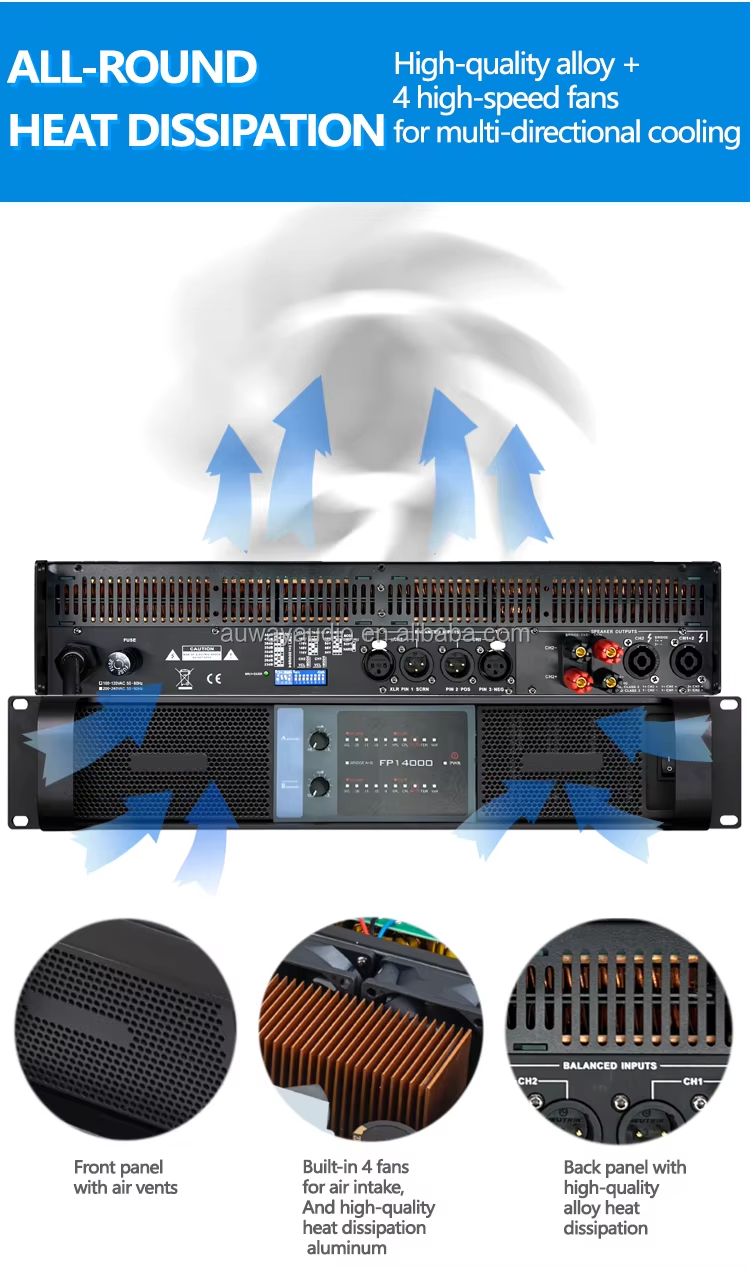

  • Efficient thermal management system


Applications

  1. Large-Scale Sound Reinforcement

  2. Main PA systems for concerts and festivals

  3. High-power subwoofer arrays


Fixed Installations

  • Performing arts centers

  • Houses of worship

  • Convention facilities

  • Touring Systems

  • Professional concert touring

  • Rental company inventory


Specification

Model

FP14000

8Ω Stereo

2x2350W

4Ω Stereo

2x4400W

2Ω Stereo

2x7000W

8Ω Bridge

8800W

4Ω Bridge

14000W

Gain

35   dB and VPL:195V

Harmonic   distortion

1W,20Hz~20kHz,<0.1%

Signal-to-Noise   Ratio

>112dBA

Frequency   Response

2Hz~34.2kHz   (1W into 8 ohms)+0/-3dB

Input   Impedance

20K   ohms

Input   Impedance@100Hz

19   mOhm

Cross   Talk(1kHz)

>70dB

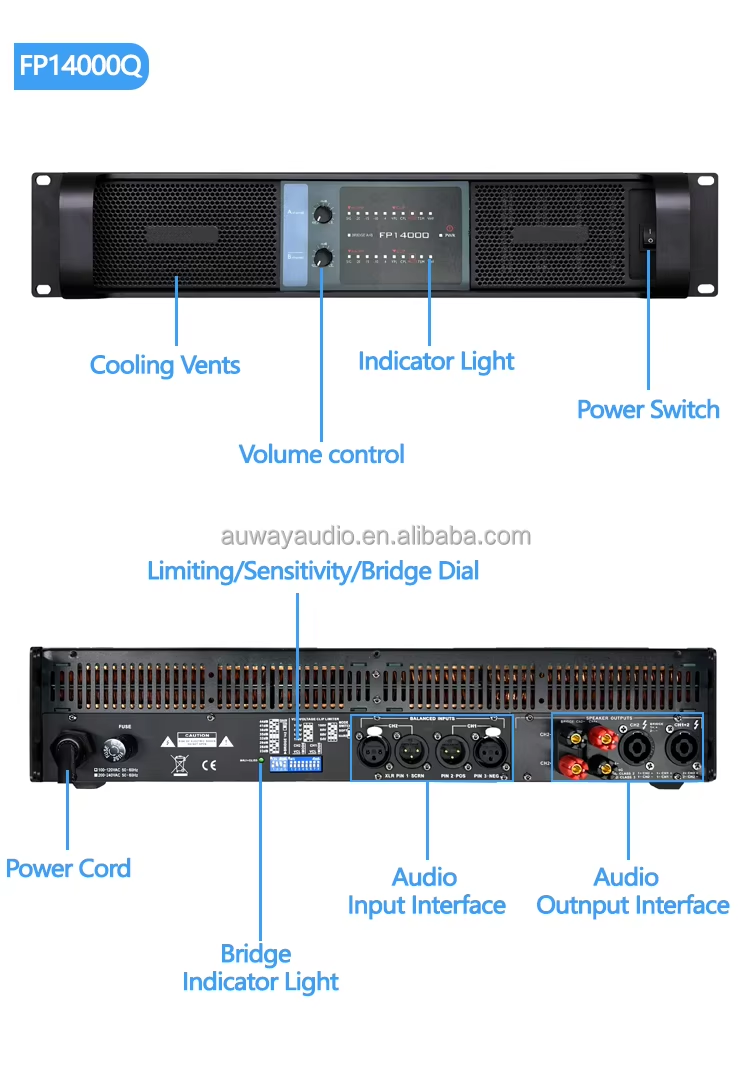

Connector

Input:   3-pin XLR female / Output: Speakon socket

Protection

Short   circuit, open circuit, DC voltage, overheating, radio frequency, ultra-low   frequency, current peak limiter (CPL) protection

Power   Specifications

AC   220V(±10%)50-60Hz

Size(WxLxH)

483x396x88MM

Packing   Size

560x487x125MM  1pcs/carton

Net   Weight

13   KG

Gross   Weight

18   KG


FP14000Q Digital Amplifierdigital amplifierTouring sound amplifier

FP14000 Digital Amplifier

4400W professional amplifier

digital amplifier
