The DS-1000 delivers massive power output with pristine audio quality through advanced GaN technology. This 2x1000W amplifier provides exceptional dynamic headroom and unwavering reliability for the most demanding professional applications. Engineered for critical performances where every watt counts, the DS-1000 ensures flawless operation in both touring and permanent installation environments.
| Quantity: | |
|---|---|
DS-1000
Auway
Model | DS-800 | DS-1000 | DS-1300 |
8Ω Stereo | 2x800W | 2x1000W | 2x1300W |
4Ω Stereo | 2x1450W | 2x1800W | 2x2350W |
8Ω Bridge | 2900W | 3600W | 4700W |
4Ω Bridge | 4060W | 5000W | 6600W |
Output Circuit | ClassD | ||
Frequency Response | 5Hz-20KHz（+0/-0.1dB）,1W | ||
THD+N | <0.05%20Hz-20KHz | ||
Slew Rate | 28V/us | ||
Damping Factor | ＞500（8ohm,10Hz-400Hz） | ||
SNR | A-weighted>110 d B | ||
Input Dependence | Balanced 20k ohms, unbalanced 10k ohms | ||
Protection | Short circuit/DC/radio interference protection circuit | ||
Size（WxLxH） | 483x310x88MM | ||
Packing Size | 550x395x120MM 1pcs/carton | ||
Net Weight/ Gross Weight | 6.25KG/7.3KG | ||

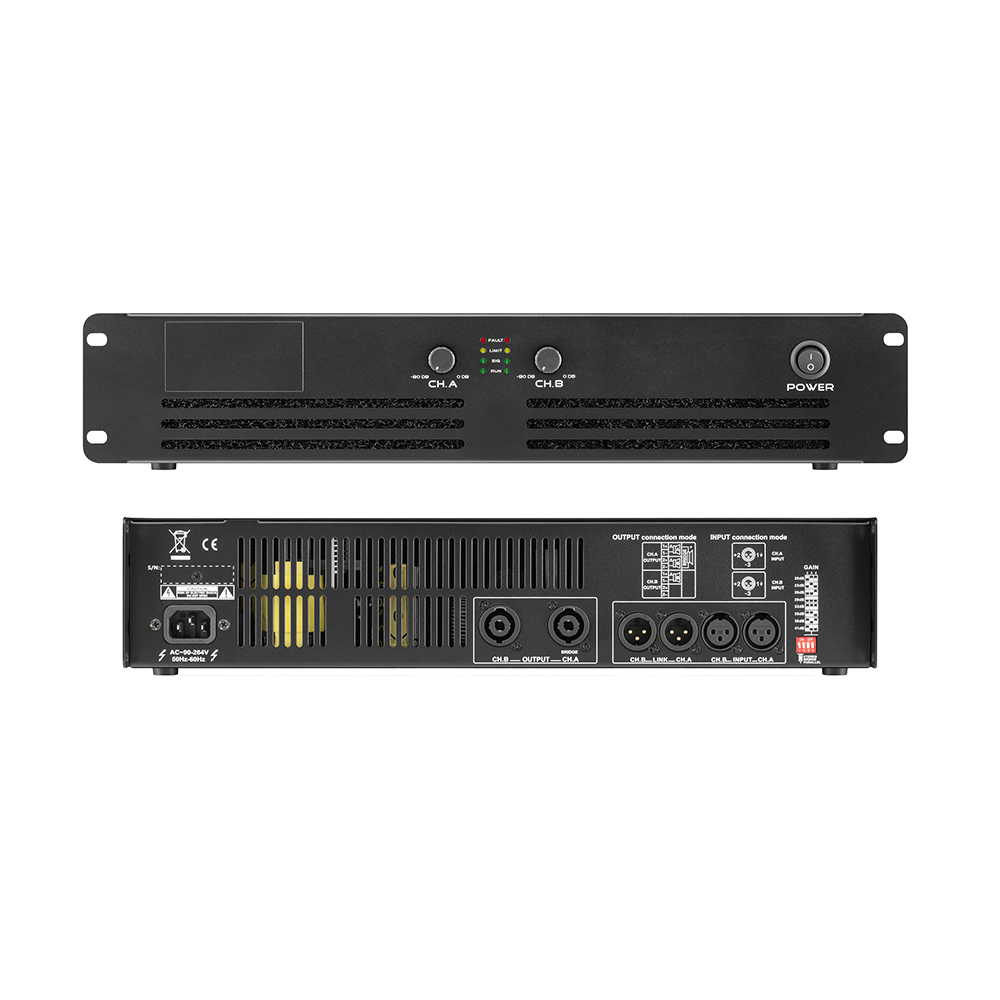

The AUWAY DS-1000 is a premium professional power amplifier that leverages cutting-edge GaN (Gallium Nitride) Technology to deliver massive power with exceptional sound quality. As a compact 2U rack-mount unit (483x310x88MM), it defies expectations with its output: 2x1000W @8Ω (stereo), 2x1800W @4Ω (low-impedance), and bridged outputs of 3600W @8Ω and 5000W @4Ω. What makes the DS-1000 a game-changer is its GaN advantage: unmatched power efficiency, faster thermal management, and a lightweight design (6.25KG net weight) that’s perfect for touring. It also features a >500 damping factor (8Ω, 10Hz-400Hz) for precise speaker control and a 28V/us slew rate for capturing fast transients (e.g., drum hits). This amplifier is built for critical applications—professional touring, large venue installations, and broadcast studios—where every watt, gram, and decibel matters.
• Unmatched power density: Delivers 2x1000W @8Ω in a 2U, 6.25KG chassis—50% lighter than comparable Class AB amplifiers, making it easy to transport for touring (e.g., loading into tour buses, carrying to festival stages).
• Superior efficiency: GaN components reduce power loss by 30% compared to traditional Class D amplifiers, cutting operational costs and heat generation—ideal for long tours or 24/7 installations.
• Faster thermal management: GaN dissipates heat 40% faster than silicon, preventing overheating during high-power runs (e.g., 2-hour concert sets) and extending component lifespan.
• <0.05% THD (20Hz-20KHz): Ultra-low distortion across the entire frequency range, preserving the integrity of live performances, studio monitors, or broadcast audio.
• 5Hz-20KHz (+0/-0.1dB) frequency response (1W): Wider and more precise than standard amplifiers, capturing deep sub-bass (5Hz) and ultra-high frequencies (20KHz)—perfect for orchestral music, electronic, or broadcast sound.
• >500 damping factor (8Ω, 10Hz-400Hz): Tighter bass control than most pro amplifiers, eliminating speaker resonance and ensuring punchy, accurate low-end (critical for subwoofers and large PA speakers).
• A-weighted >110dB SNR: Ultra-high signal-to-noise ratio, minimizing background noise (e.g., hum, hiss) and ensuring clean audio even at low volumes (e.g., studio monitoring).
• Road-ready 2U chassis: Constructed with heavy-gauge steel to withstand touring rigors (e.g., vibration, loading/unloading, minor impacts).
• Comprehensive protection: Includes short circuit protection, DC fault protection, and radio interference protection—safeguards the amplifier and speakers from damage in harsh environments (e.g., outdoor festivals, noisy electrical setups).
• Fast transient response (28V/us slew rate): Captures quick audio peaks (e.g., drum strikes, guitar riffs) without clipping, ensuring dynamic performances sound natural.
• Main system amplification for touring acts: Powers main PA speakers for medium to large venues (500–1000 attendees), delivering enough headroom to handle dynamic music peaks (e.g., rock concerts, electronic festivals).
• Touring monitor systems: Drives stage monitors for bands, with low distortion ensuring musicians hear themselves clearly over the crowd—critical for tight performances.
• Festival stage sound: Performs reliably in outdoor conditions (when paired with weatherproof speakers) and uses GaN efficiency to handle high ambient temperatures.
• Theaters and concert halls: Powers line arrays or main PA speakers, capturing the nuance of live performances (e.g., opera, ballet, symphonies) and delivering even sound across large audiences.
• Worship facilities (mega-churches): Drives large speaker systems for 1000+ congregations, ensuring speech and music are clear in every section of the venue.
• Sports arenas (small to medium): Powers speakers for announcements, music, or live commentary, with high damping factor ensuring bass cuts through crowd noise.
• Broadcast studio monitoring: Delivers clean, accurate audio for TV/radio broadcast monitors, ensuring sound engineers hear every detail (e.g., vocal intonation, background music levels).
• Recording studio monitoring: Powers reference monitors for music production, with low THD and wide frequency response ensuring mixes translate well to other systems (e.g., headphones, car stereos).
• Post-production facilities: Handles audio for film/TV post-production, capturing subtle sound effects (e.g., ambient noise, dialogue) and ensuring clarity in final mixes.
GaN (Gallium Nitride) has three key advantages over silicon:
1. Higher power density: Delivers more power in a smaller, lighter chassis (the DS-1000 is 6.25KG vs. 30KG+ for silicon Class AB amplifiers).
2. Better efficiency: Reduces power loss by 30%, cutting electricity costs and heat.
3. Faster switching: Handles fast audio transients (e.g., drum hits) more accurately, improving sound quality.
These benefits make GaN ideal for touring (lightweight) and high-demand installations (efficient, powerful).
The DS-1000 has a net weight of 6.25KG and gross weight of 7.3KG—significantly lighter than comparable amplifiers (e.g., 30KG+ for Class AB models). This matters for touring because:
• It reduces load-in/load-out time (easier to carry).
• Saves space in tour buses/vehicles (fits more gear).
• Lowers shipping costs (lighter packages cost less to transport).
Yes. It features balanced XLR inputs (compatible with mixers, preamps, and audio interfaces) and industry-standard Speakon output connectors (for secure speaker connections). The high SNR (>110dB) and low THD ensure noise-free signal transmission from gear to speakers.
The DS-1000 includes comprehensive protection to prevent damage:
• Short circuit protection: Shuts down output if speakers or wiring short, preventing amplifier and speaker damage.
• DC fault protection: Mutes output if a DC signal is detected (common with faulty wiring), protecting speakers from burnout.
• Radio interference protection: Filters out RF interference (e.g., from wireless microphones, LED controllers), ensuring clean audio.
