When it comes to powering large-scale events, compromise isn't an option. Whether you're managing a massive outdoor festival, a packed stadium concert, or a high-end club installation, the demands on your audio system are immense. You need raw power, absolute reliability, and pristine audio quality. Enter the FP20000Q Digital Amplifier—a powerhouse designed to meet the rigorous standards of professional touring and installation.
In the world of pro audio, "digital" often implies complex processing and built-in DSP. However, many audio engineers prefer a pure amplification approach, allowing them to use their own external processors for fine-tuning. The FP20000Q caters exactly to this need, focusing strictly on delivering massive amplification with efficiency and durability.
This guide explores why the FP20000Q Digital Amplifier is becoming the go-to choice for sound professionals who need serious power density without the fluff. We’ll break down its specifications, its advantages in live scenarios, and why its design makes it a reliable workhorse for your rack.
The FP20000Q is a professional 4-channel power amplifier manufactured by Auway Audio. It is designed specifically for high-power sound reinforcement applications. Its standout feature is its incredible power-to-size ratio, delivering a staggering 4400W per channel at 4 ohms, all packed into a compact 2U rack-mount chassis.
Unlike many modern amplifiers that come loaded with internal Digital Signal Processing (DSP), the FP20000Q takes a "pure amplification" approach. This means it amplifies the signal without altering it, providing a transparent path that allows engineers to use their preferred external DSP units (like those from Yamaha, Bose, or DiGiCo) for system tuning. This design philosophy ensures zero "signal coloration" from the amp itself.
To understand why this amplifier is a beast, you have to look at the numbers. The FP20000Q is built to handle the most demanding loads.
The amplifier offers flexible power configurations suitable for driving everything from line arrays to massive subwoofer walls.
Impedance Mode | Power Output | Application Note |
|---|---|---|
8Ω Stereo | 4 x 2350W | Ideal for mid-high frequency drivers in line arrays. |
4Ω Stereo | 4 x 4400W | Perfect for standard PA speakers and stage monitors. |
2Ω Stereo | 4 x 6500W | For driving multiple speakers in parallel. |
8Ω Bridge | 2 x 8800W | Massive power for demanding subwoofers. |
4Ω Bridge | 2 x 13000W | Extreme low-end power for stadium-sized bass arrays. |
Beyond raw wattage, the technical specs ensure the sound remains clean and accurate:
Total Harmonic Distortion (THD): Less than 0.1%, ensuring clarity even at high volumes.
Signal-to-Noise Ratio (SNR): Greater than 112dBA, providing a quiet background critical for dynamic performances.
Frequency Response: 6.8Hz to 34kHz, covering well beyond the human hearing range for full-spectrum reproduction.
Damping Factor: High damping ensures tight control over woofer excursions, resulting in punchy, defined bass.
Touring gear takes a beating. It gets tossed into trucks, rattled on bumpy roads, and subjected to extreme temperature shifts. The FP20000Q is engineered with this reality in mind.

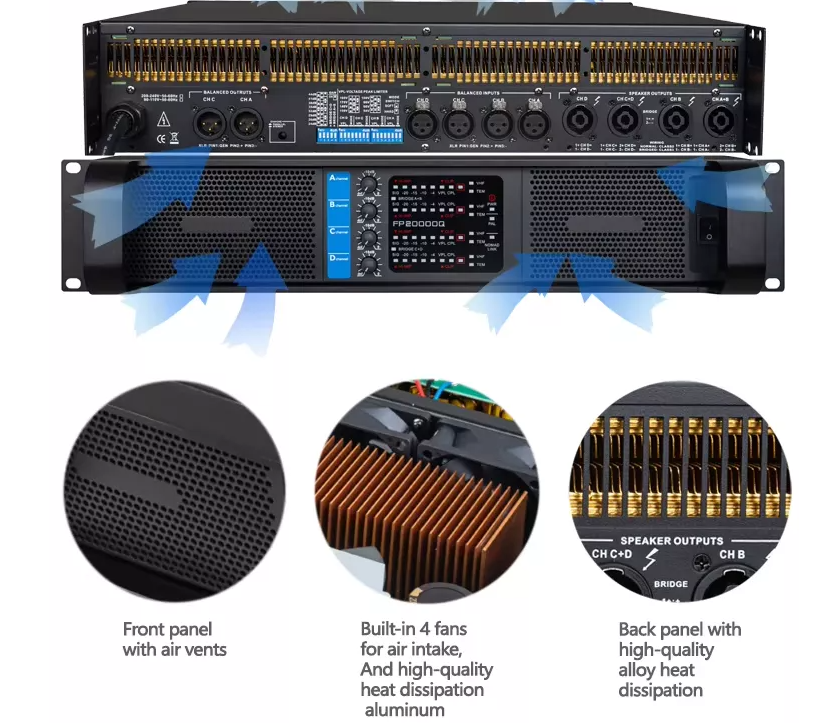

Heat is the enemy of electronics, especially when running at 4400W. The FP20000Q utilizes a high-efficiency cooling system featuring four high-speed fans and large aluminum heatsinks. The fans are temperature-controlled, meaning they ramp up when the amp is pushed hard and quiet down during lower-intensity moments. This ensures 24-hour operation reliability at festivals without the risk of overheating.
To protect your investment and your speakers, the amp includes a seven-stage protection suite:
Short Circuit Protection
Open Circuit Protection
DC Voltage Protection
Overheating Protection
Radio Frequency (RF) Protection
Ultra-Low Frequency Protection
Current Peak Limiter (CPL)
The versatility of the FP20000Q Digital Amplifier makes it suitable for a wide range of professional environments.
With the ability to bridge to 13,000W at 4 ohms, this amp is a monster for subwoofer arrays. It can drive the low-end needed to fill a stadium or outdoor festival ground. The high channel count (4 channels) also allows for efficient powering of large line array systems, reducing the total number of amplifiers needed in the rack.
Dance music requires consistent, high-impact bass and clear highs. The FP20000Q delivers the headroom necessary to keep the dance floor moving for hours without distortion or thermal shutdown. Its high signal-to-noise ratio ensures that during quieter breakdowns, the system remains hiss-free.
For rental houses, ROI is key. A single amplifier that can handle monitors, mains, or subs depending on the configuration is invaluable. Its 2U size means you can pack more power into smaller rack cases, saving on truck space and shipping costs.
Modern worship services often require concert-level sound production. The FP20000Q provides the power needed for dynamic musical performances while maintaining the clarity required for spoken word, thanks to its low distortion and transparent signal path.
You might wonder, "Why buy an amp without built-in processing?" For high-level professionals, the answer is control.
When an amplifier has built-in DSP, it imposes its own "flavor" and limitations on the signal. Professional system engineers often prefer to use dedicated, high-end external processors to manage crossovers, EQ, and limiting. The FP20000Q acts as a pure muscle engine—it takes the signal you give it and makes it louder, without adding latency or digital coloration. This makes it universally compatible with any mixing console or system processor brand you prefer.
If you are looking for an all-in-one "smart" amp for a small bar gig, this might be overkill. But if you are specifying a system for a venue where failure is not an option and massive SPL is a requirement, the FP20000Q is a top-tier contender.
It offers a rare combination of brute force, sonic transparency, and rugged reliability. By focusing on doing one thing perfectly—amplification—the FP20000Q Digital Amplifier earns its place as the backbone of high-performance audio systems worldwide.
