A compact PA system for solo artists or cafés typically needs a live sound amplifier rated between 400W–800W per channel, a pair of full-range speakers, and—if you're building your own enclosure—quality speaker building components like a Class D or Class H amplifier board. The right setup depends on room size, budget, and whether you're buying ready-made or building custom.
Running sound in a small venue is harder than it looks. A café owner wants background music that fills every corner without overwhelming conversation. A solo acoustic guitarist needs crisp vocal reinforcement without hauling a stack of gear meant for stadium tours. Both face the same core challenge: getting professional-quality audio from a system that's compact, affordable, and easy to run.
The good news? The market for live sound amplifiers and speaker building components has never been more accessible. Whether you're assembling a plug-and-play rack system or building active speakers from scratch, this guide breaks down exactly what you need.
Size and power used to be a trade-off. Early PA systems were either underpowered or enormous. Modern amplifier technology—particularly Class D and Class H designs—changed that equation entirely.
Class H amplifiers use a variable power supply that tracks the input signal, stepping up voltage only when the audio demands it. The result is lower heat output, higher efficiency, and less wasted energy—all without sacrificing headroom or dynamic range. Auway Audio's H8.0, for example, delivers 2x800W at 8Ω and 2x1200W at 4Ω in a compact chassis with THD+N below 0.05% across the full 20Hz–20kHz range.
Class D amplifier boards take this further. Built around digital switching technology, they pack enormous power into tiny form factors—making them ideal for active speaker builds or self-contained PA cabinets. Auway Audio's A46 active speaker amplifier board delivers 4x600W at 8Ω with a >105dB signal-to-noise ratio in a chassis measuring just 426x135x72mm.
For a solo artist or café, either approach works. The choice depends on how you plan to use it.
Room size is the primary driver. A café covering 500–800 sq ft typically needs 200–400W per channel. A performance space or small theater sound system might push that to 600–800W for proper coverage without clipping.
Here's a practical comparison of amplifier options suited to compact PA builds, based on verified specifications from Auway Audio's product range:
Model | Output Power (8Ω Stereo) | Output Power (4Ω Stereo) | Circuit Type | Best For |
|---|---|---|---|---|
Auway MT400 | 2x400W | 2x600W | Class H | Small café, acoustic solo |
Auway MT600 | 2x600W | 2x900W | Class H | Medium venue, folk/jazz gig |
Auway H8.0 | 2x800W | 2x1200W | Class H | Small theater, live PA system |
Auway A46 Board | 4x600W | 4x1100W | Class D | Active speaker builds, DIY PA |
All four models feature XLR balanced inputs, SPEAKON or NL4 outputs, and comprehensive protection circuitry—standard requirements for any professional-grade live sound amplifier setup.

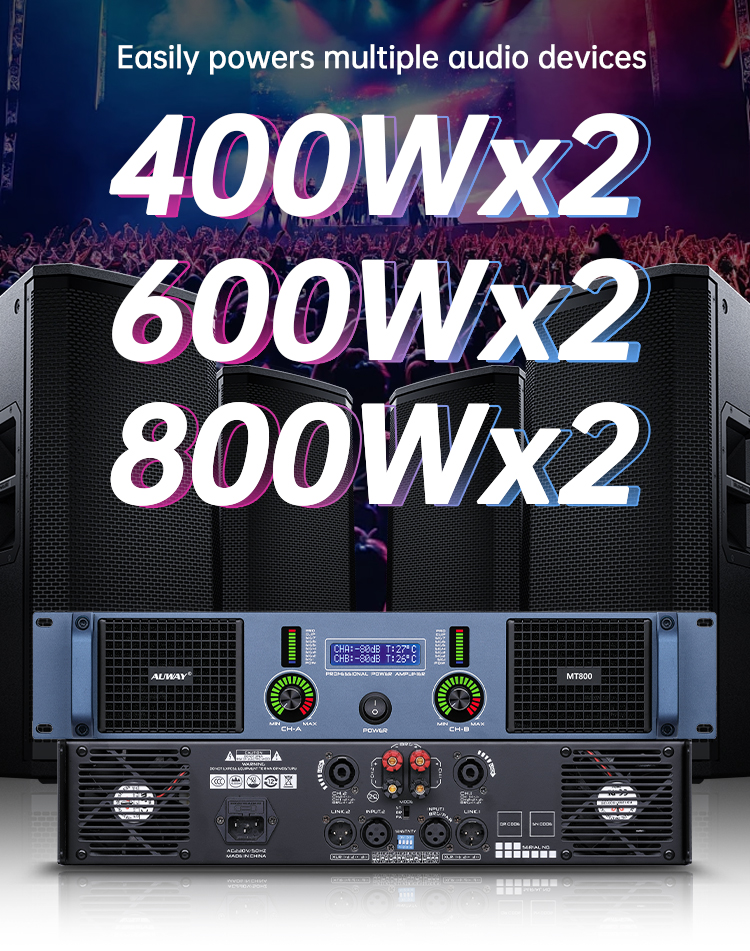

Choose the MT400 or MT600 if you want a rack-mount amplifier with warm, transformer-coupled sound quality. The MT Series uses heavy-duty toroidal transformers that produce rich low frequencies and transparent midrange—qualities that make vocals sit clearly in a mix.
Choose the H8.0 if the venue doubles as a small theater or hosts regular live performances. The Class H topology handles dynamic peaks without distortion, and its ultra-low operating noise makes it equally suitable for speech reinforcement in conference or theater applications.
Choose the A46 board if you're building custom active speakers or upgrading existing cabinets. The integrated German DSP processor supports crossover settings and up to six user presets—a meaningful advantage when you need to quickly adapt to different room configurations.
Building your own active speaker enclosures is more practical than most people think. The amplifier board is the heart of the system; the enclosure, drivers, and passive crossover (if applicable) determine how that power translates into sound.
For a two-way active speaker designed for café or solo artist use, you'll need:
Amplifier board: Auway A46 (4x600W Class D with DSP) or A44 (4x400W, smaller form factor)
Woofer drivers: 10"–12" with sensitivity ratings above 95dB/1W/1m
Compression driver + horn: For high-frequency reproduction above 1.5–2kHz
Enclosure: Vented (ported) or sealed MDF cabinet sized to the woofer's Thiele/Small parameters
DSP crossover: Built into the A46 board—no separate unit required
The A46's built-in German DSP handles active crossover duties at a sampling rate exceeding 384kHz, with a slew rate above 20V/μs. That level of processing speed means the system responds accurately to transient-heavy content—drum hits, percussive guitar—without the smearing that can affect passive crossover designs.
A completed two-way active cabinet using the A46 can cover a full 20Hz–20kHz frequency range, output more than 105dB of dynamic range, and do so in a cabinet small enough to mount on a speaker stand or sit on a shelf behind a café counter.
Stripped down to essentials, a solo artist working cafés, restaurants, and small venues needs:
A rack-mount live sound amplifier — the Auway MT400 (2x400W) is sufficient for rooms under 800 sq ft
Two full-range passive speakers — 10" two-way cabinets with SPEAKON inputs, rated to match the amplifier output
A compact mixer — even a 4-channel unit handles acoustic guitar, vocal mic, and backing track
Cables and stands — XLR runs, SPEAKON speaker cable, and a pair of adjustable speaker poles
Total rack depth for the MT400 is 433mm with a gross weight of 17kg. It fits in a standard 2U rack case alongside a compact mixer and still leaves room for a power conditioner. That's a complete live sound system that fits in the back of a hatchback.
Both approaches have real merit, and the right answer depends on your technical comfort level and long-term goals.
Buy a complete system if you need something operational within days, have no interest in electronics, and plan to use the system for background music or occasional live reinforcement. A rack-mount amplifier like the Auway MT Series paired with off-the-shelf passive cabinets is the most direct path to a working PA.
Build active speakers if you want maximum control over sound character, plan to use the system extensively across different venues, or are developing a product line for resale. The Auway A46 amplifier board gives you a professional-grade amplification and DSP platform that would cost significantly more in a finished commercial product.
A few setup decisions will determine whether your system sounds good or great:
Aim speakers at ear height, not at the ceiling. Coverage angle matters more than raw volume.
Keep gain structure clean. Set amplifier sensitivity switches to match your mixer's output level. Running an amplifier at maximum gain with a low mixer output introduces noise.
Use the DSP presets (on A46-based systems) to tune the system to the room. A high-Q boost at 2–4kHz lifts vocal presence; a cut at 250–350Hz reduces the boominess common in small reflective spaces.
Don't underpower. Clipping a small amplifier causes driver damage faster than running a correctly sized amplifier at moderate levels.
A compact, high-performance PA system is well within reach—for a solo artist, a café owner, or anyone building a small theater sound system from the ground up. The key is matching amplifier power and circuit topology to room size and use case, then choosing speaker building components that complement the amplifier's output characteristics.
Auway Audio manufactures a full range of live sound amplifiers and active speaker amplifier boards direct from their facility in Enping, Guangdong. The MT Series, H Series, and A-Series boards are available for direct inquiry via cn-auway.com, with specifications and pricing available on request.
A 2x400W to 2x600W live sound amplifier at 8Ω stereo is sufficient for most cafés in this size range. The Auway MT400 (2x400W) or MT600 (2x600W) both work well, offering transformer-coupled warmth that suits background music and speech reinforcement.
Class H amplification uses a multi-rail power supply that adjusts voltage in real time to track the audio signal. This reduces heat and power consumption compared to Class AB, allowing higher continuous power output in a smaller chassis—ideal for compact PA builds where rack space and ventilation are limited.
Yes. The Auway A46 is used in both DIY active speaker builds and OEM commercial speaker products. Its integrated German DSP, Class D efficiency, and compact 426x135x72mm dimensions make it suitable for custom cabinet integration in commercial café, theater, or permanent venue installations.
Theater sound systems prioritize speech intelligibility, wide and even coverage, and low background noise. They typically use higher-quality amplifiers with lower THD ratings, delays for distributed speaker arrays, and DSP for room correction. Amplifiers like the Auway H8.0—with its ultra-low operating noise and Class H circuit—suit both theater and high-end live sound applications.
A passive speaker requires an external live sound amplifier to drive it. An active speaker has the amplifier built in—often using a plate amplifier board like the Auway A46. Active speakers simplify cabling and allow DSP processing per enclosure, while passive systems offer more flexibility in matching amplifiers to different speaker loads.
