Lightweight digital stage amplifiers use switching or GaN technology to deliver high power in compact, low-weight chassis. They cut energy waste, run cooler, and simplify touring. Top models from Auway include the E-2500 GaN amplifier (2x500W @8Ω, 3.25 kg), the FP20000Q switching amplifier (4x4400W @4Ω, 15 kg), and the PS41300 Class H amplifier (4x1300W @8Ω).
Choosing the right stage power amplifier used to mean lugging heavy iron up flights of stairs. That's changing fast. A modern digital amplifier can pack thousands of watts into a chassis that weighs a fraction of older designs—without sacrificing sound quality.
This guide breaks down why lightweight, high-efficiency power amplifiers matter for live sound, what technologies drive them, and which models stand out. Whether you run a touring rig, a house of worship, or a mobile DJ setup, you'll learn how to match power output to your venue and cut down on setup fatigue.
A digital stage power amplifier is an amplifier that uses switching-mode technology to convert electrical power into audio signal with far greater efficiency than older linear designs. Instead of burning off excess energy as heat, these amplifiers switch rapidly between on and off states, wasting very little power.
The result is a smaller, lighter, cooler-running unit. A traditional linear amplifier delivering 1,000 watts might weigh 30 kg or more. A comparable switching or GaN-based design can weigh under 15 kg—and sometimes far less.
Efficiency isn't just a technical spec. It affects your budget, your back, and your reliability on show day. Here are the main advantages of a lightweight digital amplifier.
Touring and rental crews load and unload gear constantly. A lighter amplifier reduces the physical strain of every load-in. The Auway E-2500 GaN amplifier weighs just 3.25 kg and fits in a single rack unit (1U)—a dramatic contrast to legacy amplifiers of similar power.
High-efficiency designs generate less heat, which lowers cooling demands and cuts electricity bills. This matters most for venues running audio for long stretches. Megachurches and cultural venues that operate systems for 8+ hours weekly see meaningful savings over time.
A well-designed digital amplifier maintains low distortion even at high output. The Auway E-2500 posts a THD+N of less than 0.01% across 20Hz–20kHz, with a 110 dB signal-to-noise ratio—clean enough for critical listening and studio monitoring.
Compact chassis free up rack space for mixers, processors, and other gear. The FP20000Q delivers 4 channels of massive power in a 2U frame measuring 483x481x90mm, weighing only 15 kg net.
Not all digital amplifiers work the same way. Three approaches dominate professional stage use, and each fits different needs.
GaN (Gallium Nitride) is the newest. GaN transistors switch at higher frequencies, run cooler, and enable ultra-lightweight builds. Choose GaN if weight and audio purity are your top priorities—ideal for mobile DJs and studio monitoring.
Switching (Class D-style) amplifiers deliver enormous power density and reliability. Choose a switching amplifier like the FP20000Q if you need brute force for large arrays and subwoofers.
Class H amplifiers adjust supply voltage to match signal demand, cutting waste while keeping analog-grade sound. Choose Class H if you want efficiency plus proven durability for fixed installs and touring, as with the PS41300.
The table below compares three standout Auway models across the technologies above. Power figures reflect stereo operation unless noted.
Model | Technology | Power (8Ω) | Power (4Ω) | Channels | Net Weight | Rack Size | Best For |
|---|---|---|---|---|---|---|---|
E-2500 | GaN | 2x500W | 2x800W | 2 | 3.25 kg | 1U | Mobile DJs, studios, premium installs |
FP20000Q | Switching | 4x2350W | 4x4400W | 4 | 15 kg | 2U | Stadiums, festivals, large arrays |
PS41300 | Class H | 4x1300W | 4x1950W | 4 | 39 kg | 3U | Large venues, worship, touring |

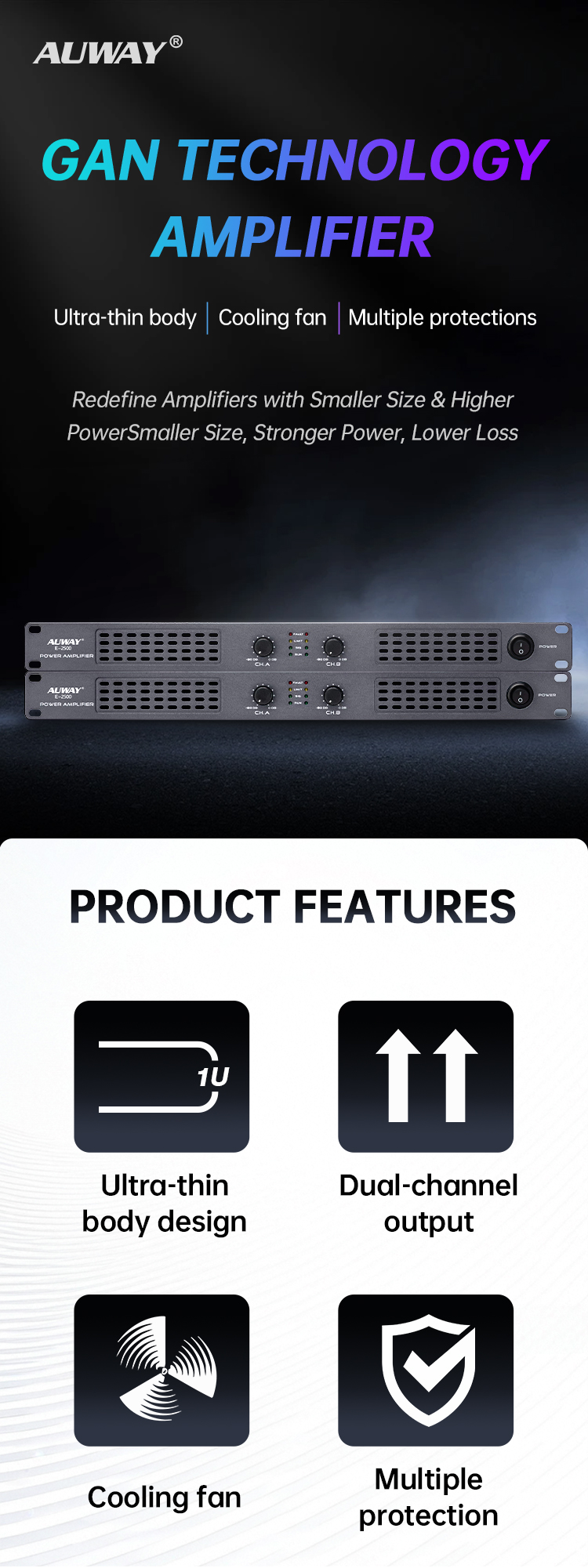

The Auway E-2500 GaN amplifier delivers 2x500W at 8Ω (2x800W at 4Ω, 1,600W bridged) in a 1U chassis weighing only 3.25 kg. With THD+N below 0.01% and a wide 90V–265V AC input range, it works anywhere in the world. It suits mobile DJs, broadcast and recording monitoring, and boutique installations where discretion and fidelity matter.
The FP20000Q is Auway's flagship switching amplifier for large-scale sound reinforcement. It produces 4x4400W at 4Ω (and up to 2x13000W bridged at 4Ω) in a 15 kg, 2U steel chassis. It skips built-in DSP to preserve a pure signal path—an advantage for engineers who tune with external processors. Four temperature-controlled fans support 24-hour operation, making it a strong pick for festivals and stadium arrays.
The PS41300 delivers 4x1300W at 8Ω (4x1950W at 4Ω, 2x3900W bridged) using 18 power transistor pairs per channel and 16 high-grade capacitors. Its Class H topology cuts energy waste by adjusting supply voltage to signal demand. At 39 kg, it's heavier than the GaN and switching options, but it earns its place with headroom and durability for worship systems, stadiums, and touring monitor rigs.
Match amplifier output to your venue size and speaker load. For a small club, boutique retail space, or studio, the E-2500's 2x500W is plenty. For a large venue, worship hall, or multi-zone install needing four channels, the PS41300 offers flexibility without rack clutter. For stadiums, festivals, or big subwoofer arrays, the FP20000Q's ultra-high output reduces the number of amplifiers you need.
Also check speaker impedance. Amplifiers deliver more power into 4Ω loads than 8Ω, so confirm your speakers' rating before buying. Avoid running impedances lower than an amplifier's rated minimum, which risks damage.
Lightweight digital stage amplifiers have closed the old gap between power and portability. GaN designs like the E-2500 lead on weight and clarity. Switching amplifiers like the FP20000Q dominate raw output. Class H models like the PS41300 balance efficiency with rugged reliability.
Start by defining your venue size, speaker load, and how often you transport your rig. Then pick the technology that fits those priorities. To compare specs, request pricing, or ask about the best model for your setup, reach out to the Auway team directly.
Digital amplifiers use switching-mode power supplies and efficient output stages instead of bulky linear transformers. This reduces internal heat and eliminates heavy components, so a unit like the Auway E-2500 weighs just 3.25 kg while delivering 2x500W.
It depends on your priority. GaN, as used in the E-2500, offers the lowest weight, highest efficiency, and lowest distortion—best for portability and critical listening. Switching amplifiers like the FP20000Q offer the most raw power. Class H models like the PS41300 balance efficiency with proven touring durability.
No. Modern digital amplifiers maintain excellent fidelity. The Auway E-2500 posts THD+N below 0.01% and a 110 dB signal-to-noise ratio, matching or beating many heavier legacy designs.
The FP20000Q is built for large-scale sound. It delivers 4x4400W at 4Ω (up to 2x13000W bridged) and runs 24 hours on four temperature-controlled fans, making it ideal for main PA arrays and large subwoofer systems in high-capacity venues.
Base your choice on venue size and speaker impedance. Small venues and studios do well with 500W-per-channel units; large multi-zone venues benefit from four-channel models like the PS41300; stadiums and festivals need the high output of the FP20000Q. Always match the amplifier's rated impedance to your speakers.
