Setting up a stage power amplifier correctly can mean the difference between a clean, powerful performance and a show-stopping technical failure. Whether you're preparing for a concert, a corporate event, or a fixed installation, getting your professional audio amplifier wired and configured properly is critical—not just for sound quality, but for protecting your equipment.
This guide walks you through the full setup process, from understanding your amplifier's specs to making the final connections. You'll also find a quick-reference spec comparison table to help you choose the right power amplifier for your application.
A stage power amplifier takes a line-level signal from a mixer or processor and drives it to a level powerful enough to move speaker cones. Unlike consumer amplifiers, professional audio amplifiers—such as the AUWAY PS41300 or AS1800—are built to operate under sustained, high-demand conditions. They handle multiple channels, high wattage, and continuous use without degrading in performance.
Poor setup leads to real problems: clipping, thermal shutdown, blown drivers, and ground loops that create unwanted hum. Proper configuration eliminates these risks and unlocks the full potential of your system.
Before connecting anything, gather the following:
Your stage power amplifier (rack-mounted or standalone)
A mixer or audio processor with XLR outputs
SPEAKON cables (for speaker outputs)
XLR cables (for signal inputs)
Speakers matched to your amplifier's impedance rating
A grounded power source with the correct voltage (typically 220V–240V AC for professional units)
A rack enclosure if using multiple components
Check your amplifier's manual for impedance requirements. Running a 4Ω speaker on an amplifier configured for 8Ω, or vice versa, affects power output significantly.
Most professional audio amplifiers use a standard 19-inch rack mount chassis. The AUWAY PS41300, for example, fits in a 3U rack space with dimensions of 483 × 560 × 130mm. Secure the unit firmly using the appropriate rack screws. Leave at least 1U of space above and below the amplifier for airflow—heat is the primary cause of premature component failure.

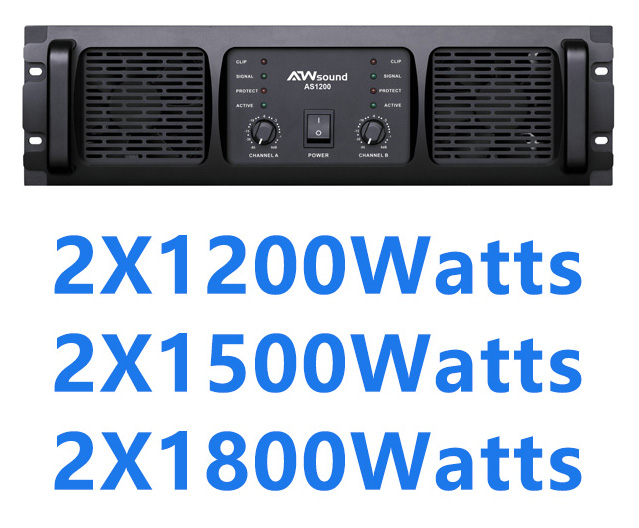

Run XLR cables from your mixer's main outputs (or crossover/processor outputs) to the amplifier's XLR input connectors. Most professional amplifiers, including the AS1200 and AS1800 from AUWAY, use balanced XLR inputs with an impedance of 20KΩ (balanced) or 10KΩ (unbalanced). Balanced connections are strongly preferred for stage use—they reject interference over long cable runs.
Match input sensitivity settings on the amplifier to your source. AUWAY's AS-series amplifiers, for instance, offer three sensitivity settings: 0.7V, 1.0V, and 1.5V, allowing compatibility with nearly any professional mixer or processor without additional gain stages.
Use SPEAKON connectors for speaker output connections. SPEAKON cables lock securely into the output sockets, which prevents accidental disconnections during load-in or mid-show vibrations—a critical advantage over standard 1/4-inch connectors. Connect the correct channels to the correct speakers: channel 1 to main left, channel 2 to main right, and so on depending on your system layout.
If you're running a bridged mono configuration to power large subwoofers, follow the manufacturer's specific bridging instructions. The PS41300, for example, delivers 2×3900W at 8Ω in bridge mode, while the AS1800 steps up to 5400W at 8Ω bridged—enough to drive even the most demanding subwoofer arrays.
Gain structure determines how clean your signal chain sounds at maximum output. The goal is to push your amplifier close to its rated output without clipping at any stage of the signal chain.
Start with all gain controls at minimum. Play a reference signal through your mixer at 0dBu (or just below clipping), then slowly increase the amplifier's input sensitivity until your clip LED flashes only at true peak moments. This approach maximizes headroom while keeping distortion below audible thresholds. AUWAY's professional amplifiers maintain THD+N below 0.05% across 20Hz–20kHz when operated within rated parameters.
Most stage power amplifiers offer multiple operating modes. Choose based on your speaker setup:
Stereo mode: Each channel operates independently. Use this for full-range speakers, stage monitors, or multi-zone installations.
Bridged mono mode: Both channels combine into one high-power output. Use this for subwoofers or when maximum output is needed from a single speaker cluster.
Always power on your system in signal flow order: source first, then processors, then the amplifier last. Power off in reverse order. This prevents loud pops or transient spikes from reaching your speakers—protecting high-value drivers from unnecessary stress.
Before running full output, test the system at low volume. Listen for hum (ground loop), distortion (gain structure issues), or intermittent signal (faulty cables). Walk the room to check for phase issues between speaker clusters. Only push to full operating level once you've confirmed a clean signal across all channels.
Choosing the right power amplifier depends on your venue size, speaker configuration, and power requirements. Here is a comparison of three AUWAY professional audio amplifiers suited for different stage applications:
Specification | AUWAY PS41300 | AUWAY AS1200 | AUWAY AS1800 |
|---|---|---|---|
Output Circuit | Class H | Class H (3-Stage) | Class H (3-Stage) |
Channels | 4 | 2 | 2 |
Stereo Output @ 8Ω | 4 × 1300W | 2 × 1200W | 2 × 1800W |
Stereo Output @ 4Ω | 4 × 1950W | 2 × 1800W | 2 × 2700W |
Bridge Output @ 8Ω | 2 × 3900W | 3600W | 5400W |
Frequency Response | 20Hz–20kHz (+0/−1dB) | 20Hz–20kHz (+0/−0.5dB) | 20Hz–20kHz (+0/−0.5dB) |
THD+N | <0.05% | <0.05% | <0.05% |
Damping Factor | >400 | >400 | >400 |
Cross Talk | >−60dB | >80dB | >80dB |
Input Connection | XLR | XLR | XLR |
Output Connection | SPEAKON | SPEAKON | SPEAKON |
Net Weight | 39 kg | 32.5 kg | 35.5 kg |
Best For | Large multi-zone PA, touring monitor systems | Medium concert PA, theater, church | Large venue main PA, festival systems, subwoofer walls |
Choose the PS41300 if you need four independent channels for complex multi-zone installs or touring monitor matrices. Choose the AS1200 if you're running a two-channel medium-scale system such as a theater or medium-sized house of worship. Choose the AS1800 when maximum output is the priority—outdoor festivals, stadium systems, or high-output subwoofer configurations where bridged mono power exceeds 5000W.
Mismatched impedance: Always verify that your speakers' impedance matches the amplifier's rated load.
Skipping the gain structure process: Setting gain arbitrarily leads to either clipping or a noise floor that's too high.
Poor ventilation: Rack-mounted amplifiers need airflow. Blocked vents cause thermal shutdowns mid-show.
Using unbalanced cables over long runs: Over distances of more than 10 meters, unbalanced connections pick up interference. Always use balanced XLR.
Powering on the amplifier first: This risks sending transients directly to speakers.
A stage power amplifier performs reliably when it's configured correctly, matched to appropriate speakers, and maintained with adequate cooling and clean signal routing. The fundamentals don't change whether you're running a compact two-channel Class H unit or a four-channel high-density rack amplifier like the PS41300.
Take the time to set up your gain structure properly, choose the right operating mode for your speaker system, and always power the signal chain in the correct sequence. Do that, and your professional audio amplifier will deliver clean, powerful output—every show, every time.
For detailed specifications or to inquire about AUWAY's full range of stage power amplifiers, visit cn-auway.com.
Most professional stage power amplifiers support 4Ω and 8Ω loads in stereo mode, and 8Ω in bridged mono. Running speakers below the minimum rated impedance increases current draw and generates excess heat, which can trigger thermal protection or damage output transistors. Always check both the amplifier's datasheet and the speaker's impedance rating before connecting.
In stereo mode, each channel operates independently to drive a separate speaker or speaker cluster. In bridged mono mode, both channels combine to drive a single speaker with significantly higher power output. The AUWAY AS1800, for example, outputs 5400W at 8Ω in bridged mono—compared to 2×1800W in stereo. Use bridged mono for subwoofers or when maximum output from a single cluster is needed.

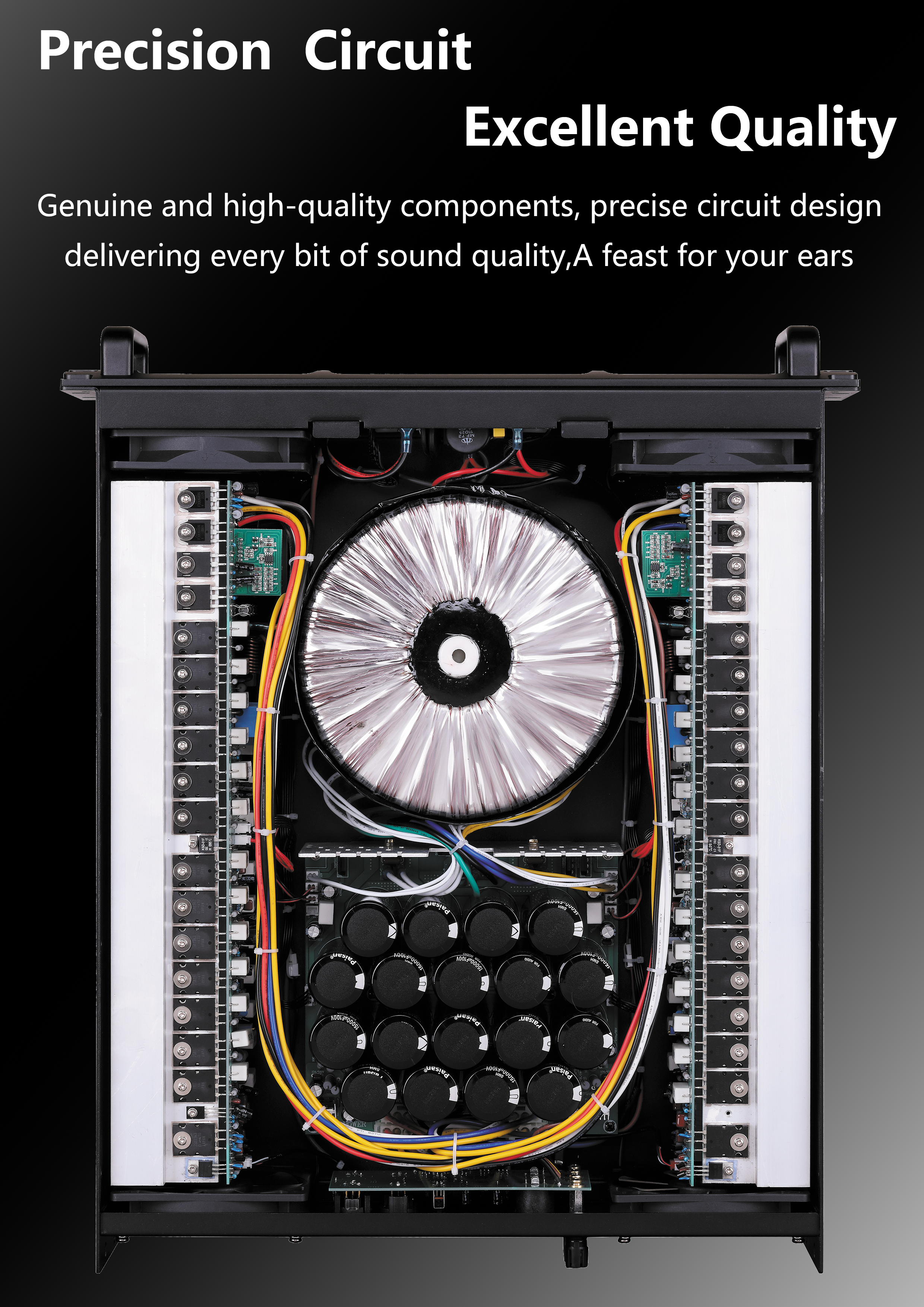

Class H amplifiers adjust their supply voltage dynamically based on the incoming signal level. This reduces energy waste and heat generation compared to Class AB designs, allowing amplifiers like the AUWAY AS-series to run efficiently during extended use without overheating. The three-stage Class H design in the AS1200 and AS1800 specifically offers 30–45% greater efficiency than conventional amplifier topologies, according to AUWAY's product specifications.
Ground loops cause a 50/60Hz hum that appears when multiple pieces of equipment share different electrical ground references. To prevent them, use balanced XLR connections throughout the signal chain, ensure all equipment connects to the same power distribution unit, and consider using a direct injection box or ground-lift adapter if hum persists on specific inputs.
Power requirements depend on speaker sensitivity, venue size, and headroom needs. A general rule is to provide amplifier power rated at 1.5–2× the speaker's continuous AES power rating. For a medium concert venue, a two-channel amplifier like the AUWAY AS1200 (2×1200W at 8Ω) is typically sufficient. Large outdoor events or festival main hangs require units like the AS1800, which delivers up to 7500W at 4Ω in bridged mono configuration.
