Installing a 70V constant-voltage PA system involves calculating your total wattage load, selecting the right amplifier, wiring speakers in parallel to the 70V line, and connecting everything to a source device. Most small venue installations can be completed in a few hours with basic tools and a clear wiring plan.
Setting up a small venue PA system doesn't have to mean hiring a professional installation crew. A 70V constant-voltage system—also called a 70-volt distributed audio system—is specifically designed for straightforward, scalable installations. Restaurants, chapels, retail stores, and conference rooms all rely on this format because it allows you to connect multiple speakers over long cable runs without significant signal loss.
This guide walks you through every stage of the process, from calculating your power requirements to making the final connections.
A 70V system works differently from a standard low-impedance PA setup. Instead of wiring speakers based on impedance matching, a 70V amplifier steps up the audio signal to 70 volts. Each speaker has a small built-in transformer that taps off a portion of that power—typically set at 1W, 2W, 4W, or 8W per speaker.
The key benefit: you can connect many speakers to a single amplifier output without complex impedance calculations. As long as the total wattage of all speakers doesn't exceed the amplifier's rated output, the system works. This makes 70V systems the standard choice for small venue PA installations worldwide.
Before pulling any cable, gather the following:
A 70V-compatible PA amplifier (with a 70V output tap)
70V ceiling or wall speakers with transformer taps
16 AWG or 18 AWG speaker cable (stranded, not solid core)
An audio source (mixer, media player, or microphone preamp)
Wire strippers, a screwdriver, and a cable tester
A notepad for your wiring diagram
Choosing the right amplifier is the most critical decision. A compact plate amplifier works well for smaller spaces where rack mounting isn't practical. For larger small venues—think a 200-seat banquet hall or a medium-sized retail space—a rack-mounted unit with more headroom is a better fit.
AUWAY Audio's AM450, for example, delivers 2x400W at 8Ω with a Class H design optimized for vocal clarity and speech intelligibility. It's a reliable choice for restaurants, small chapels, and hospitality spaces where clear audio over long durations matters. For venues that need significantly more output, a high-power PA amplifier like the PA1.5 provides 2x1450W at 8Ω through Class GB technology, making it well suited for medium-to-large installations.
Add up the wattage taps of every speaker you plan to install. This is your total speaker load. Your amplifier's output must exceed this number—ideally by 20–25% to maintain headroom and avoid clipping.
Number of Speakers | Tap Setting Per Speaker | Total Speaker Load | Minimum Amp Output |
|---|---|---|---|
10 | 2W | 20W | 25W |
20 | 2W | 40W | 50W |
20 | 4W | 80W | 100W |
40 | 4W | 160W | 200W |
50 | 8W | 400W | 500W |
Most small venue PA systems fall between 40W and 400W of total speaker load. Match this figure to an amplifier with adequate rated output on its 70V tap.

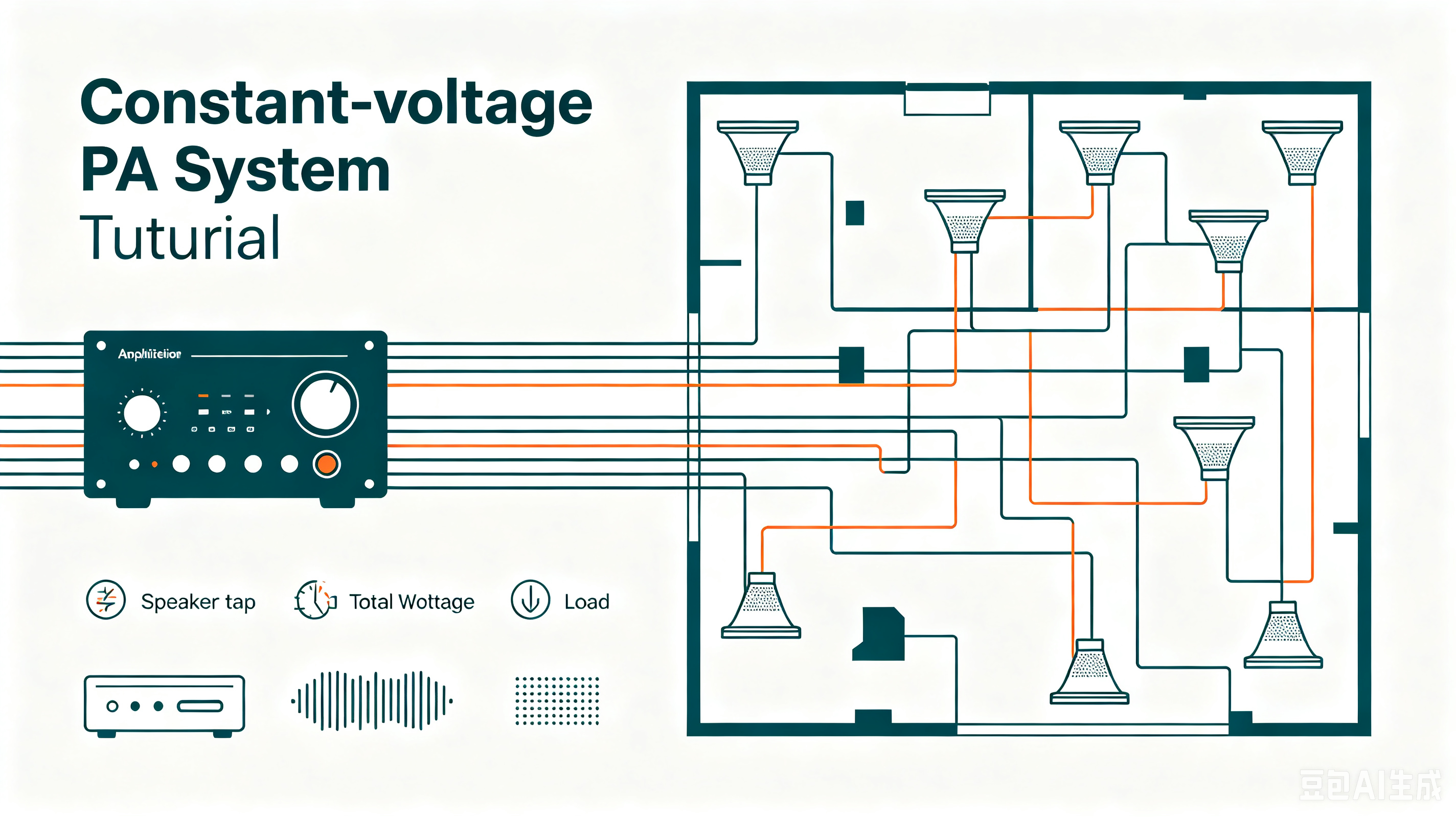

Map out where each speaker will sit on paper before drilling anything. Aim for a daisy-chain or home-run layout depending on your space:
Daisy-chain: Cable runs from the amplifier to the first speaker, then continues to the next, and so on. Efficient for linear spaces like corridors.
Home-run: Each speaker has its own dedicated cable run back to a central junction point. Better for larger spaces with multiple zones.
Keep speaker cables away from mains power wiring to avoid interference. Label every run with tape and a marker before installation—this saves hours of troubleshooting later.
Each 70V speaker contains a small transformer on the back. This transformer has multiple wire terminals, each corresponding to a different wattage tap (commonly 1W, 2W, 4W, 8W). Connect your speaker wire to the tap that matches your desired output for that speaker.
Larger rooms or noisy environments (kitchens, lobbies with foot traffic) typically benefit from higher tap settings. Quiet meeting rooms or small retail spaces work well at lower settings.
Connect all speakers in parallel along the 70V line. This means the positive terminal of each speaker connects to the positive line, and the negative to the negative line. The 70V voltage stays constant across all speakers regardless of how many you add—only the total wattage load changes.
Use the correct polarity at every connection. Reversed polarity on even one speaker causes phase cancellation, which noticeably reduces bass and overall clarity.
Most 70V amplifiers have dedicated output terminals labeled 70V, 25V, and 4Ω or 8Ω. Connect your speaker line to the 70V output terminals only.
On the input side, connect your audio source—whether that's a mixer output, a media player, or a microphone preamp—to the amplifier's balanced XLR inputs. Units like the AUWAY P26.4 digital amplifier support XLR/TRS combo inputs with a wide voltage range (100–240V AC), making them flexible for international installations and venues with variable power supplies.
Set the input gain conservatively at first. You can increase it once the system is running and you've confirmed there's no noise or distortion.
Before sealing any ceiling panels or cable conduits, power on the system and test every speaker individually. Use a simple tone or voice recording as a test signal. Walk the entire space and listen for:
Speakers with no output (check wiring polarity and tap connections)
Distortion at normal listening levels (reduce the tap setting or amplifier gain)
Audible hum or buzz (check for ground loops or cables running too close to power lines)
A basic cable tester confirms continuity on every run before the amplifier is powered on. This one step prevents most common installation failures.
Not every venue needs the same amplifier. Here's a general framework:
Small spaces (cafés, boutiques, chapels under 100 seats): A compact plate amplifier or 2-channel unit with 70V output in the 100–200W range covers the load comfortably.
Medium venues (restaurants, conference rooms, 200-seat halls): A rack-mounted unit like the AUWAY AM450 provides clean, reliable power with comprehensive overload protection for multi-hour operation.
Larger installations (event centers, megachurches, large retail): A high-power PA amplifier such as the AUWAY PA1.5 handles demanding loads with its 4200W bridged output and variable-speed fan cooling designed for extended use.
Once every speaker tests clean and the system runs without noise, secure all cables, replace any ceiling tiles or conduit covers, and document your final wiring diagram. Store this diagram somewhere accessible—it will be invaluable for any future troubleshooting or expansion.
A 70V constant-voltage PA system scales easily. Adding more speakers later means simply calculating the new total load and confirming your amplifier has the headroom to handle it. If you've selected an amplifier with adequate output from the start, expanding the system is often as simple as running additional cable and tapping into the existing line.
Check the rear panel or product specifications for a labeled 70V output terminal. Amplifiers without a built-in transformer will not work with 70V speaker systems unless you add an external line-matching transformer.
Yes. As long as the total combined wattage of all taps stays within the amplifier's rated 70V output, you can freely mix 2W, 4W, and 8W taps on the same line. Just recalculate your total load whenever you change tap settings.
For runs up to 30 meters (100 feet), 18 AWG cable is sufficient. For runs between 30 and 60 meters, use 16 AWG. Beyond 60 meters, step up to 14 AWG to minimize voltage drop over the line.
A plate amplifier is a flat, frame-mounted unit designed to be built directly into a speaker cabinet or enclosure—common in subwoofers and self-powered speaker builds. A rack-mounted PA amplifier is housed in a standard 19-inch rack chassis and is the more common choice for distributed audio installations in venues.
A minimum of 20% headroom is recommended. If your total speaker load is 200W, select an amplifier rated for at least 240W on its 70V output. More headroom means the amplifier runs cooler and lasts longer under continuous use.
