Class GB power amplifiers combine the audio fidelity of Class A/B designs with significantly improved efficiency, making them a strong fit for theater and cinema sound systems. They deliver high output power with low distortion and reduced heat generation—critical qualities for venues running audio continuously over long periods.
Theater and cinema sound is unforgiving. Audiences notice when dialogue sounds thin, when low-frequency effects lack punch, or when background music loses definition during complex scenes. Behind every great acoustic experience is a power amplifier working hard—and silently—to keep everything sounding exactly right.
The amplifier topology you choose matters more than most people realize. Class AB has long been the standard for professional audio, but Class GB power amplifiers are increasingly becoming the preferred choice for large-scale installations, including performing arts centers, commercial cinemas, and broadcast monitoring environments. The reasons come down to efficiency, thermal management, and audio quality—three factors that directly affect both the listener experience and the total cost of ownership.
This post breaks down how Class GB amplifiers work, why they suit theater and cinema applications specifically, and what specifications to look for when selecting one.
Class GB is an advanced amplifier topology that builds on the foundation of Class AB. In a standard Class AB design, the power supply voltage remains fixed regardless of the signal level. This means the amplifier dissipates significant energy as heat during low-to-moderate output levels—which is most of the time in a real listening environment.
Class GB addresses this by using a dual power supply rail system. At lower output levels, the amplifier draws from a lower-voltage rail. As the signal demands more power, it switches to a higher-voltage rail. This adaptive supply tracking reduces wasted energy without introducing the switching artifacts associated with Class D designs.
The result: approximately 35% greater efficiency than traditional Class AB, with audio quality that remains transparent and distortion levels low enough for reference-grade monitoring.
A multiplex cinema or performing arts center runs its amplifiers for eight to twelve hours per day. Over time, the differences between amplifier topologies compound into real-world consequences.
Thermal management is the first concern. An inefficient amplifier converts a large portion of input power into heat. In a rack room packed with multiple amplifiers, this creates serious cooling demands. Class GB amplifiers run cooler, reducing HVAC load and extending component lifespan.
Continuous headroom is the second. Cinema audio, particularly in Dolby Atmos or DTS:X configurations, features extreme dynamic range. A film's quieter dialogue sequences can be followed almost instantly by explosive sound effects that demand peak power delivery. Class GB designs handle these transient demands cleanly because the dual-rail supply gives the output stage sufficient voltage headroom when it matters.
Low distortion across the dynamic range matters for dialogue intelligibility—the metric cinema sound designers care about most. A Class GB amplifier's Total Harmonic Distortion (THD) figure stays low even at higher output levels, preserving the clarity of midrange frequencies where speech lives.
Not all Class GB power amplifiers are created equal. When specifying an amplifier for a theater or cinema sound system, these are the numbers that matter:
Specification | What It Means | Target Value for Cinema |
|---|---|---|
THD+N | Total distortion at rated output | < 0.05% @ 8Ω, 1kHz |
Frequency Response | Bandwidth accuracy | 20Hz–20kHz (±1dB) |
Damping Factor | Speaker control and bass tightness | > 400 |
Channel Separation (Crosstalk) | Stereo/surround isolation | > 75dB @ 8Ω |
Output Power (8Ω stereo) | Continuous power per channel | 1300W–1600W+ |
Bridged Mono Output | Subwoofer or full-range LFE | 3900W–4800W |
Slew Rate | Transient response speed | 25V/μs or higher |
The damping factor deserves particular attention. A high damping factor—above 400—means the amplifier can tightly control speaker cone movement. In a cinema, this translates directly to tighter, more accurate bass reproduction during low-frequency effects sequences.
The main LCR channels in a cinema carry the majority of the dramatic workload: dialogue, music score, and primary effects. These channels need amplifiers that reproduce the full 20Hz–20kHz range with ruler-flat accuracy and the power to fill large auditoriums without dynamic compression.
A Class GB amplifier delivering 2×1600W at 8Ω (or 2×2400W at 4Ω) provides substantial headroom for even the largest single-screen theaters. Running at one-tenth of rated power during average program levels, the amplifier stays well within its comfort zone—which is exactly where distortion performance is most critical.
Immersive audio formats like Dolby Atmos use anywhere from 24 to 64 speaker positions. Each position needs its own amplifier channel. Efficiency becomes a direct cost factor here, both in terms of electricity consumption and rack space.
Class GB's thermal efficiency means more amplifier channels can fit into a given rack footprint without overwhelming the cooling system. A 3U rack-mount Class GB amplifier handles two full-bandwidth channels with the kind of separation (>75dB crosstalk rejection) that keeps surround effects spatially precise.
The Low-Frequency Effects channel in cinema—the ".1" in 5.1, 7.1, or Atmos configurations—operates at higher continuous power levels than any other channel. Subwoofer drivers are relatively inefficient, and LFE content in modern films can demand sustained high output for extended sequences.
Bridged mono operation on a Class GB amplifier is well-suited to this task. A unit capable of 4800W bridged at 8Ω delivers substantial headroom for even large-format subwoofer systems, while the high damping factor ensures the bass remains defined rather than bloated.
Class GB amplifiers also find a home in broadcast master control rooms and post-production facilities where cinema mixes are checked and approved. Here, the requirement shifts from raw power to reference accuracy. The combination of ultra-low THD, flat frequency response, and high channel separation makes Class GB a credible choice for critical listening environments where mix decisions affect the final product heard by audiences worldwide.

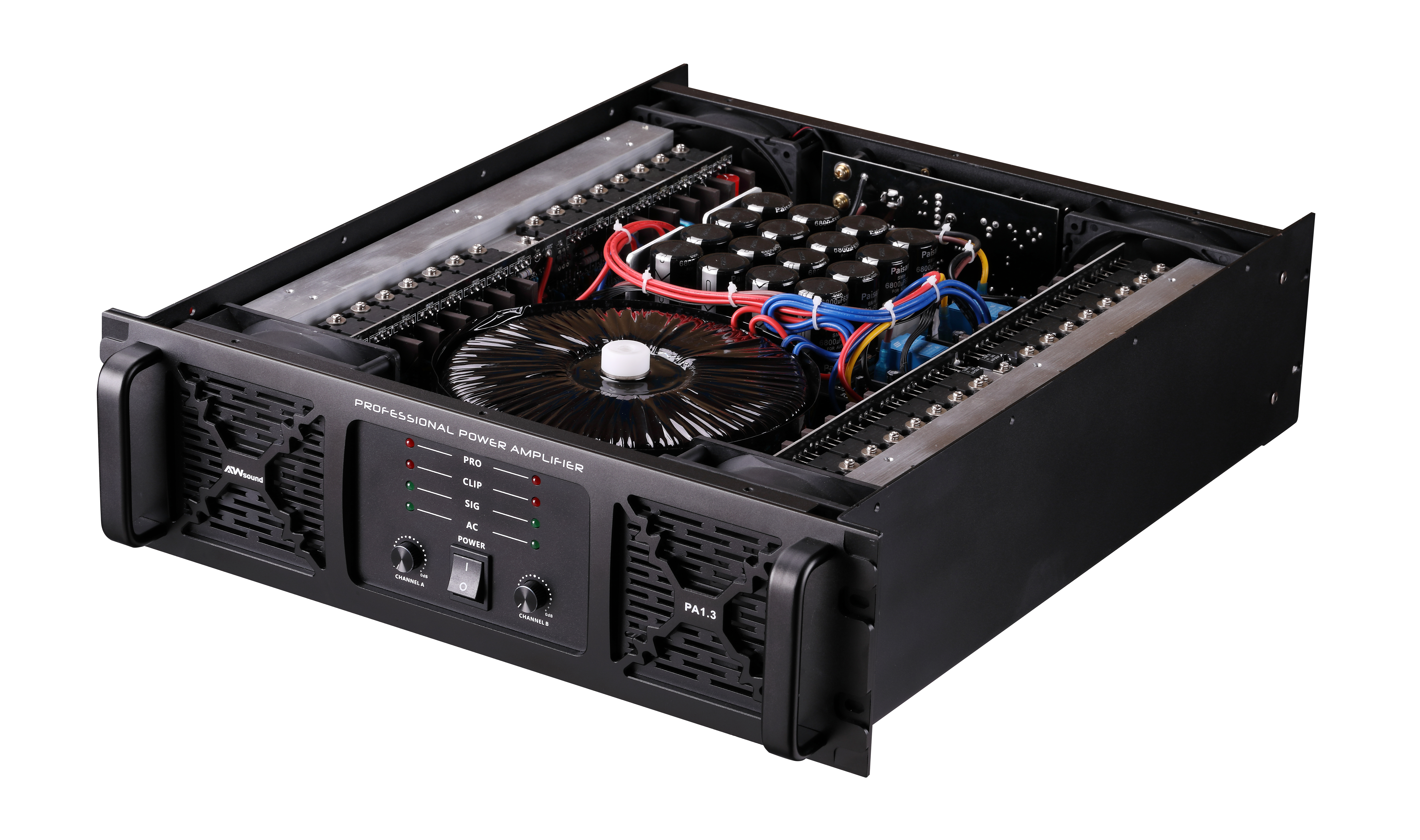

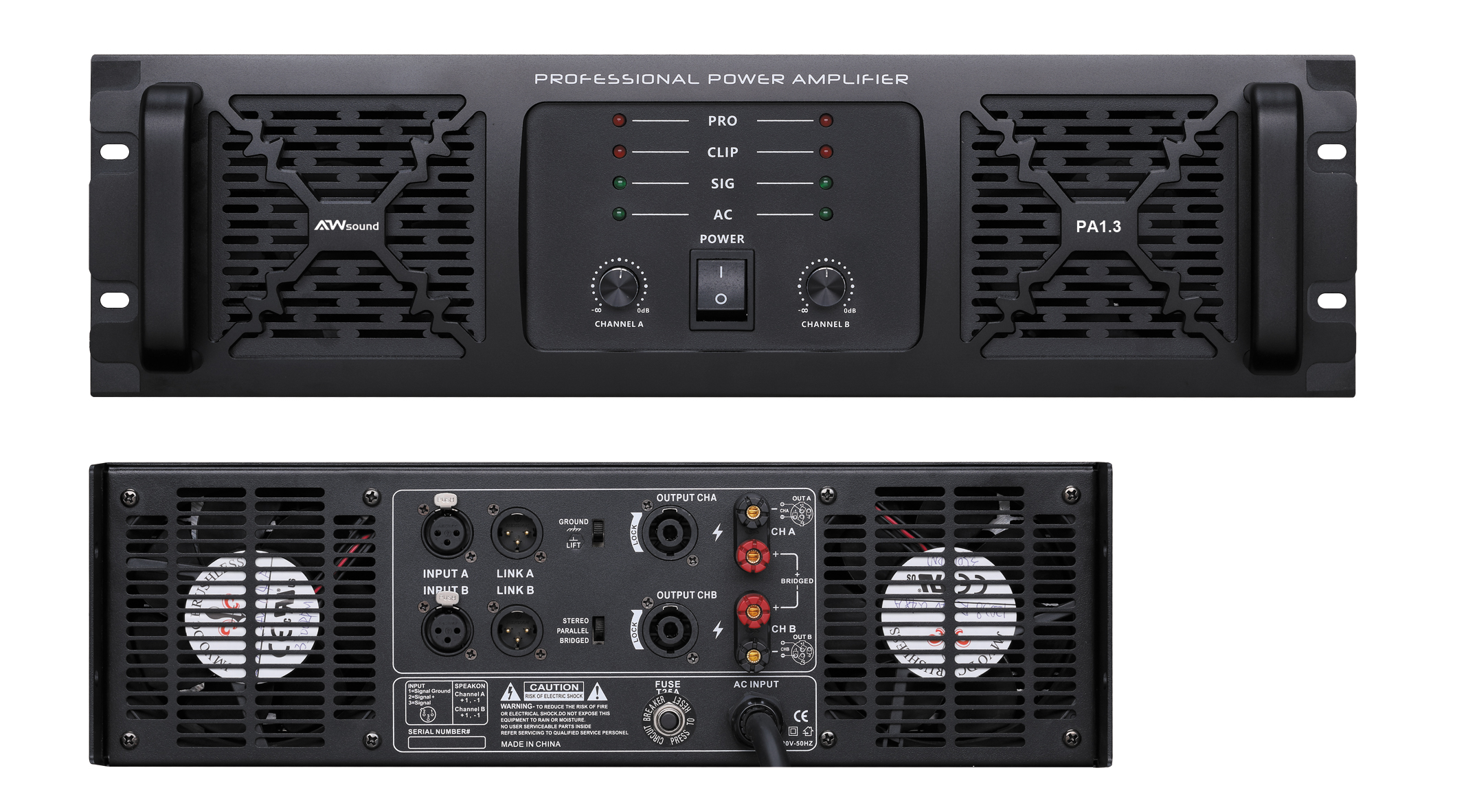

The PA Series Class GB power amplifiers from Auway Audio (cn-auway.com) represent one practical example of how this technology is packaged for professional use. The PA1.8 model delivers 2×1600W at 8Ω in a 3U chassis, with a THD+N specification of <0.05%, a damping factor exceeding 400, and four variable-speed cooling fans with thermal monitoring for sustained operation.
The PA Series spans three output tiers:
PA1.3: 2×1300W at 8Ω / 3900W bridged
PA1.5: 2×1450W at 8Ω / 4200W bridged
PA1.8: 2×1600W at 8Ω / 4800W bridged
All three share the same output circuit topology, connectivity (gold-plated XLR inputs, high-current SpeakON outputs), and protection suite—covering DC fault, overload, and thermal events with automatic recovery. The PA1.8's 483×608×130mm chassis and 38.3kg net weight reflect the heavy-duty construction appropriate for permanent installations.
Choose the PA1.3 if your budget is constrained but you still need professional-grade headroom for mid-size auditoriums. Step up to the PA1.8 for flagship single-screen theaters, large performing arts stages, or any application where bridged mono subwoofer performance is a priority.
Class GB power amplifiers occupy a compelling position in the professional audio market: they outperform Class AB in efficiency and thermal behavior, while avoiding the sonic trade-offs sometimes associated with switching amplifier topologies. For theater and cinema applications—where amplifiers run continuously, dynamic range demands are extreme, and audio accuracy directly affects the audience experience—this combination of traits is genuinely useful rather than merely theoretical.
The specifications that matter most are THD+N, damping factor, frequency response flatness, and bridged mono output capability. Anchor your system design around those numbers, and the right Class GB power amplifier for your installation becomes a much easier choice to make.
Class AB amplifiers use a fixed power supply voltage, which causes significant energy waste as heat during low-to-moderate output levels. Class GB amplifiers use a dual-voltage power supply that adapts to the signal level—drawing from a lower rail at moderate outputs and switching to a higher rail when peak power is needed. This makes Class GB approximately 35% more efficient than Class AB while maintaining comparable audio quality.
Yes. Class GB power amplifiers are well-suited to Dolby Atmos installations because of their combination of high output power, low distortion, high channel separation, and thermal efficiency. The efficiency advantage is particularly relevant in Atmos configurations, which require a large number of amplifier channels running simultaneously.
This depends on auditorium size and speaker sensitivity. As a general guideline, main LCR channels in a mid-size auditorium benefit from amplifiers capable of at least 1300W per channel at 8Ω. Larger single-screen theaters and premium large-format (PLF) screens may require 1600W per channel or more, with bridged mono subwoofer channels in the 4000W–5000W range.
Damping factor measures how effectively an amplifier controls speaker cone movement after a transient signal. A high damping factor (above 400) results in tighter, more accurate bass reproduction—critical for the low-frequency effects channel in cinematic audio. Low damping factor can cause audible bass overhang or lack of definition during complex sound effects sequences.
Yes. Class GB amplifiers with low THD+N figures (below 0.05%) and flat frequency response are appropriate for broadcast master control monitoring and post-production reference environments. The same characteristics that make them accurate for cinema playback—low distortion, high channel separation, and controlled bass response—apply equally to critical listening applications.
