The best live sound amplifier depends on venue size and signal chain. For small-to-medium venues wanting warm, musical tone, a transformer-based unit like the MT400 fits well. For large-format touring and festivals, a high-power digital amplifier like the FP20000Q delivers massive headroom. If you need built-in processing, a power amp with DSP (such as the DP-10000) simplifies system tuning. A plate amplifier suits self-powered speaker builds.
Choosing the right power amplifier can make or break a live sound system. Too little headroom, and your speakers choke during the loudest moments of a set. Too much complexity, and your crew spends more time troubleshooting than mixing. The right choice comes down to matching the amplifier's output, design, and feature set to your venue, your speakers, and how your system gets tuned.
This guide breaks down the main categories of live sound amplifiers — digital amplifiers, traditional power amplifiers, plate amplifiers, and power amps with DSP — and looks at real-world models to help you figure out which type fits your setup.
Live sound reinforcement typically relies on four amplifier categories, each suited to different applications.
Digital power amplifiers use switching (Class D) technology to deliver high output in a lightweight, efficient chassis. These amplifiers are the go-to choice for touring companies and large venues because they pack enormous power into compact rack space without the weight penalty of traditional transformer-based designs.
The FP20000Q 4-channel digital amplifier is a clear example of this category at its highest level. It delivers 4x2350W at 8Ω, 4x4400W at 4Ω, and can be bridged to 2x13000W at 4Ω — all from a 15KG, 2U chassis. This amplifier skips built-in DSP entirely, focusing on pure amplification so sound engineers can pair it with their own external processors (from brands like DiGiCo or Allen & Heath) for precise tuning without signal coloration. For 10,000+ capacity venues, stadium shows, and festival subwoofer arrays, this kind of raw power-to-size ratio reduces the number of amplifiers needed in a rig.
Transformer-coupled amplifiers trade some of the power density of digital designs for a warmer, more musical sound character — a quality many engineers still prize for vocal clarity and natural low-end.

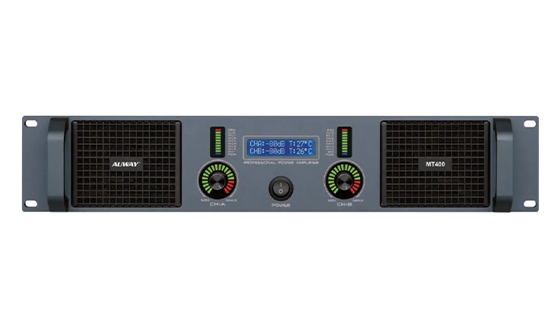

The MT400 series (available in 400W, 600W, 800W, and 1000W configurations) illustrates this approach well. Its Class H output circuit, toroidal transformer, and damping factor above 400 produce transparent midrange and punchy bass, making it a strong choice for medium-scale sound reinforcement: front-fills, monitor wedges, and main PA in clubs, churches, and theaters. For engineers prioritizing sonic character over sheer wattage, transformer amplifiers like this remain a dependable option.
A power amp with DSP combines amplification and signal processing in a single chassis. This simplifies setup considerably — crossover points, EQ, limiting, and delay settings are handled internally rather than through a separate rack unit. For smaller crews or installations where simplicity matters more than ultimate flexibility, this integration cuts down on cabling, rack space, and setup time.
Plate amplifiers are built to mount directly into a speaker cabinet, turning a passive enclosure into a self-powered speaker. These are less common in centralized live sound racks but play a key role in self-powered subwoofer and loudspeaker designs, where the amplifier and processing travel with the box rather than living in a separate rack.
Picking an amplifier isn't just about chasing the highest wattage number. Here's how the main factors stack up:
Factor | Small/Medium Venues | Large Venues & Touring |
|---|---|---|
Recommended type | Transformer amplifier (e.g., MT400) | Digital amplifier (e.g., FP20000Q) |
Power range | 400W–1000W per channel @8Ω | 2350W–4400W+ per channel |
Chassis | 2U, lighter weight | 2U, built for high-output touring |
Sound character | Warm, musical, vocal-forward | Clean, high-headroom, DSP-ready |
Best for | Clubs, churches, theaters, monitor wedges | Stadiums, festivals, large subwoofer arrays |
Processing | Add external DSP as needed | Pairs with external DSP for precise tuning |
Choose a transformer-based model like the MT400 if your priority is vocal clarity and musicality in a room under a few thousand capacity. Choose a high-power digital amplifier like the FP20000Q if you're covering a stadium, festival stage, or any setup where a handful of amplifiers need to drive an entire PA system without running out of headroom.
Wattage specs can be misleading without context. An amplifier's usable power depends on impedance (2Ω, 4Ω, or 8Ω loads), whether it's run in stereo or bridged mono, and how much headroom is left for transient peaks in live music. The FP20000Q, for instance, jumps from 4x2350W at 8Ω to 4x4400W at 4Ω and up to 4x6500W at 2Ω — a reminder that the number quoted on a spec sheet only means something once you know your speaker load.
Harmonic distortion, signal-to-noise ratio, and frequency response matter just as much as raw wattage. The FP20000Q's <0.1% THD and >112dB signal-to-noise ratio ensure that massive power doesn't come at the cost of clarity, while the MT400's damping factor above 400 keeps bass tight and controlled rather than loose and boomy.
Not always. Some engineers prefer a power amp with DSP because it reduces rack space and simplifies tuning for fixed installations where the system configuration rarely changes. Others, especially touring engineers, prefer amplifiers without built-in processing — like the FP20000Q — so they can run their own external DSP of choice and avoid any unnecessary signal coloration between source and speaker.
If your team already has a preferred DSP platform and values flexibility across different venues, a pure amplifier paired with external processing gives more control. If you're running a simpler, semi-permanent installation, an integrated power amp with DSP can save setup time on every show day.
There's no single "best" power amplifier for every live sound application — the right choice depends on venue size, speaker impedance, how much processing you want built in, and whether warmth or raw headroom matters more for your mix. A transformer amplifier like the MT400 earns its place in clubs and churches where vocal clarity counts most. A digital amplifier like the FP20000Q earns its place on festival stages and in stadiums where nothing short of massive, clean power will do.
Before your next system upgrade, map out your venue sizes, typical speaker loads, and touring requirements. That groundwork will narrow the field faster than comparing wattage figures alone.
What's the difference between a digital amplifier and a traditional power amplifier?
Digital amplifiers use Class D switching technology for high power output in a lightweight chassis, making them ideal for touring and large venues. Traditional transformer-based amplifiers, like the MT400, are heavier but often deliver a warmer, more musical sound character favored for vocal clarity.
Do I need a power amp with DSP for live sound?
Not necessarily. A power amp with DSP simplifies setup by handling crossover, EQ, and limiting internally, which suits smaller crews or fixed installations. Touring engineers often prefer separate amplification and external DSP, like the FP20000Q's no-DSP design, for more tuning flexibility.
How much power do I need for a large venue or festival?
For 10,000+ capacity venues, amplifiers delivering 4000W+ per channel at 4Ω, such as the FP20000Q's 4x4400W rating, reduce the number of amplifiers needed and provide enough headroom for subwoofer arrays and main PA systems.
What is a plate amplifier used for?
A plate amplifier mounts inside a speaker cabinet to create a self-powered speaker, combining amplification and sometimes processing within the enclosure itself, rather than in a separate rack-mounted unit.
Is higher wattage always better for live sound amplifiers?
Not on its own. Factors like total harmonic distortion, signal-to-noise ratio, damping factor, and impedance matching affect sound quality as much as raw wattage. Always check specs at the actual impedance your speakers present.
