PA amplifier back panels typically feature four connector types: XLR (balanced audio input), SpeakON (speaker output), RCA (unbalanced consumer input), and Euroblock (installation wiring). Each serves a distinct role. Choosing the right connector depends on your signal type, environment, and whether you're using a standard power amplifier, a digital amplifier, or a DSP amplifier board.
Flip a power amplifier around and the back panel can look like a maze of ports, sockets, and terminals. For newcomers, it's confusing. For experienced engineers, it's second nature. Either way, knowing exactly what each connector does—and why it's there—makes the difference between a clean-sounding rig and a troubleshooting nightmare.
This guide breaks down the four most common connector types found on professional PA amplifiers, from compact DSP amplifier boards to large-format digital amplifiers like the AUWAY FP20000Q. By the end, you'll know what goes where, why each connector exists, and how to pick the right one for your setup.
Most professional power amplifiers use some combination of XLR, SpeakON, RCA, and Euroblock connectors. Each type handles a specific job in the signal chain.
Here's a quick reference table:
Connector | Signal Type | Balanced? | Typical Use Case |
|---|---|---|---|
XLR | Audio input (line-level) | Yes | Professional PA, live sound, studio |
SpeakON | Speaker output | N/A (power) | Live sound, touring, installations |
RCA | Audio input (line-level) | No | Consumer audio, DJ mixers, media players |
Euroblock | Audio input or output | Yes (configurable) | Fixed installations, commercial audio |
Now let's dig into each one.
XLR connectors are the backbone of professional audio. Found on virtually every power amplifier, digital amplifier, and DSP amplifier board designed for live or installed sound, XLR delivers a balanced audio signal over a 3-pin connector: Pin 1 (ground), Pin 2 (positive/hot), Pin 3 (negative/cold).
The balanced configuration is what makes XLR so valuable. By carrying the same signal on two conductors with opposite polarity, XLR connections cancel out electromagnetic interference picked up along the cable run. Run a 30-meter XLR cable across a stage with multiple power sources and moving lights, and the signal still arrives clean. Try the same with an unbalanced cable and you'll likely hear hum.
On the AUWAY PA1.3 power amplifier, XLR connectors serve as the balanced audio input, accepting signals from mixing consoles, preamps, and audio interfaces. The PA1.3 supports input sensitivity settings of 0.775V, 1.0V, and 1.5V, and with a balanced input impedance of 20KΩ, the XLR input integrates cleanly with virtually any professional signal source.
Choose XLR when: you're connecting to a mixing console or signal processor, running long cable distances, or working in electrically noisy environments.
SpeakON connectors—developed by Neutrik—handle the output side of the amplifier. They carry high-current speaker-level signals, which is a very different job from line-level audio. A SpeakON socket locks into place with a quarter-turn twist, making accidental disconnection during a live show essentially impossible.
Compared to bare wire or older 1/4-inch connectors, SpeakON offers three clear advantages: a secure locking mechanism, lower contact resistance (reducing power loss over the connection), and the ability to handle high-current loads safely.
The AUWAY PA1.3 uses SpeakON output connectors, and the FP20000Q digital amplifier does the same. The FP20000Q is a four-channel switching power amplifier delivering up to 4x4400W at 4Ω, and at those power levels, a secure, low-resistance connection at the speaker output is non-negotiable. A loose connection here doesn't just cause noise—it can cause arcing and equipment damage.
Choose SpeakON when: you're connecting a power amplifier to passive speakers in any professional context, whether touring, fixed installation, or rental.
RCA connectors—the familiar red and white plugs—appear on many amplifiers as an alternative input for unbalanced, consumer-level signals. They're not balanced, which means they're more susceptible to interference over long cable runs. For short connections in controlled environments, however, RCA is perfectly adequate.
You'll find RCA inputs useful when connecting media players, DJ controllers, CD players, or consumer audio devices to a PA system. Many dual-purpose amplifiers—those designed to work in both professional and semi-professional environments—include RCA alongside XLR to accommodate a wider range of source equipment.
The trade-off is clear: convenience over noise rejection. RCA is a practical option when signal runs are short (typically under 5 meters) and the environment isn't electrically hostile. Use it for background music in a restaurant or a fixed installation with a nearby media source, not for the main PA feed at an outdoor festival.
Choose RCA when: your source device only has unbalanced outputs, cable runs are short, and interference isn't a concern.
Euroblock connectors (also called Phoenix connectors or terminal block connectors) look like small green or grey plugs with screw terminals. Strip a wire, insert it, tighten the screw—done. There's no specialized cable end required, which makes Euroblock particularly well-suited to permanent installations where cables are terminated in-wall or in-rack and won't be unplugged regularly.

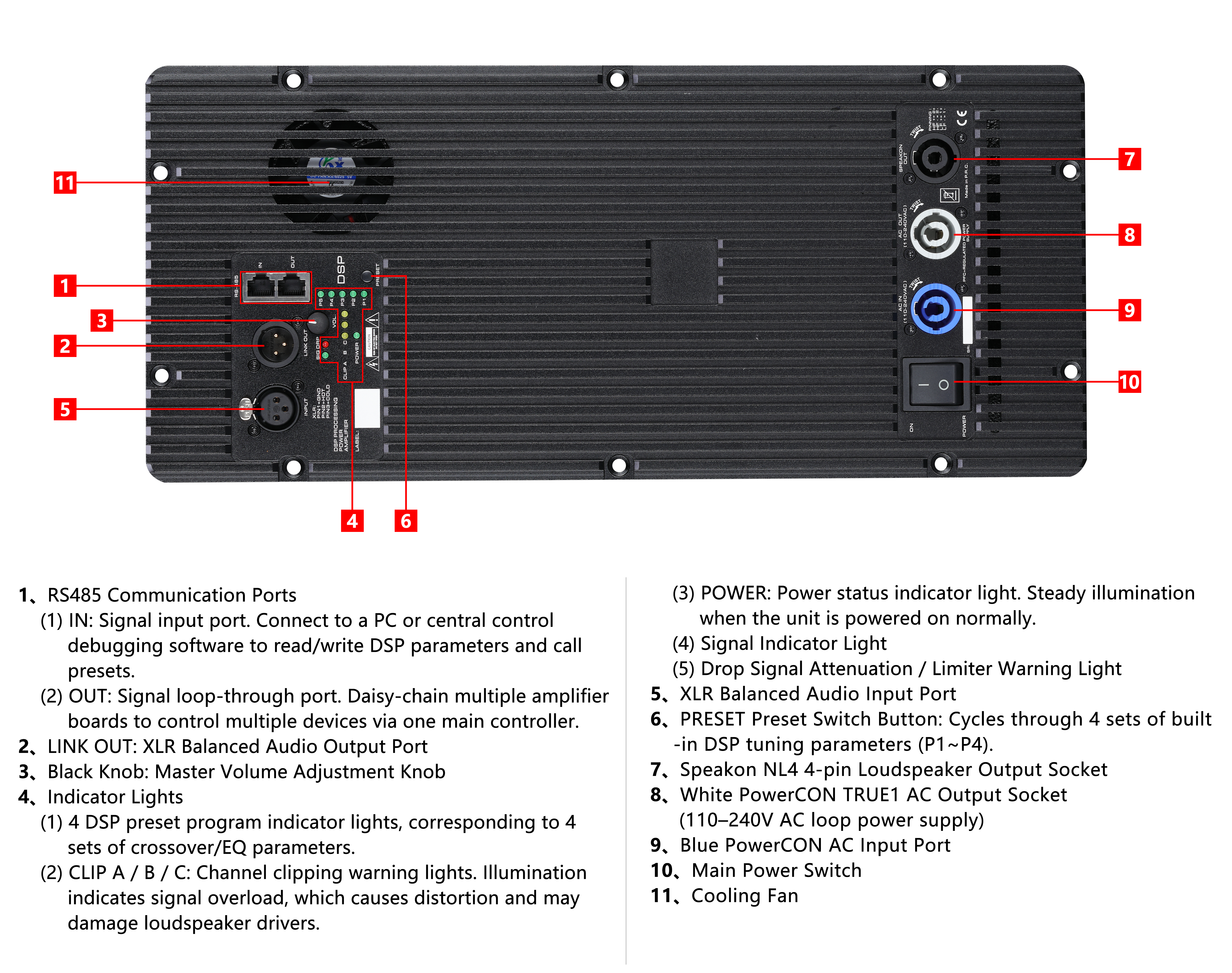

DSP amplifier boards, like the AUWAY DP-A13-45, are common candidates for Euroblock connections. The DP-A13-45 is a 3-channel Class D amplifier board with integrated DSP control, designed for active speakers and multi-zone audio systems. Amplifier boards of this type are often installed inside speaker enclosures or within equipment racks, where secure, tool-tightened wire connections are more practical than plug-and-socket connectors.
Euroblock can carry both balanced and unbalanced signals depending on how it's wired, which adds flexibility for system designers. For commercial installations—retail spaces, conference rooms, houses of worship—Euroblock is a tidy, reliable, and low-maintenance solution.
Choose Euroblock when: you're working on a fixed installation, wiring is permanent or semi-permanent, and ease of in-field termination is a priority.
The amplifier type you're working with influences which connectors are most relevant.
A traditional power amplifier like the PA1.3 focuses on XLR inputs and SpeakON outputs. Clean signal in, high-power signal out—no processing in between.
A digital amplifier like the FP20000Q similarly uses XLR inputs and SpeakON outputs, but the internal topology is switched-mode rather than linear, resulting in significantly higher power density and efficiency. The connector philosophy stays the same: professional inputs, secure speaker outputs.
A DSP amplifier board like the DP-A13-45 adds an additional layer. Integrated DSP means the board handles crossover, EQ, and dynamics internally, so signal routing becomes more complex. These boards often use Euroblock for their integrated installation context and may include USB or RS-485 interfaces for remote tuning—the DP-A13-45, for example, ships with a USB-to-485 cable for system configuration. The three output channels (2×500W + 1500W @8Ω) each drive a specific part of the speaker system, making precise connector assignment critical.
The answer depends on three factors: signal source, cable run length, and whether the installation is permanent or portable.
For live touring with a digital amplifier or rack-mount power amplifier, XLR inputs and SpeakON outputs are the correct choice. They're rugged, lockable, and designed to be connected and disconnected hundreds of times.
For fixed commercial installations using a DSP amplifier board, Euroblock inputs with SpeakON or direct wire speaker outputs give you a clean, permanent solution. The DP-A13-45's PFC power supply (100–240V AC) adds further flexibility for global deployment.
For smaller venues or prosumer setups with limited professional source equipment, an amplifier with RCA inputs alongside XLR gives you the flexibility to work with both consumer and professional sources.
Back panel connectors aren't glamorous, but they determine how reliably your audio system performs under real-world conditions. XLR keeps your signal clean over distance. SpeakON keeps your speakers connected when it matters most. RCA gives you flexibility with consumer sources. Euroblock makes permanent installations straightforward.
Understanding which connector handles which job—across power amplifiers, digital amplifiers, and DSP amplifier boards—puts you in a stronger position when specifying equipment, troubleshooting problems, or designing a system from scratch. Get the connections right, and the audio takes care of itself.
XLR carries a balanced audio signal, which actively rejects electromagnetic interference, making it suitable for long cable runs and professional environments. RCA carries an unbalanced signal, which is more susceptible to noise. XLR is preferred for PA and live sound applications; RCA is acceptable for short, low-interference connections from consumer devices.
SpeakON outputs are standard on most professional power amplifiers. However, you need to ensure the cable is wired for the correct pin configuration (1+/1– for 2-pole, or 1+/1–/2+/2– for 4-pole). Always verify cable wiring before connecting to amplifiers with high output power, such as the FP20000Q digital amplifier at 4x4400W.
On a DSP amplifier board like the DP-A13-45, Euroblock connectors typically serve as audio inputs or control connections. The screw-terminal design is ideal for permanent installation wiring where cables are terminated in-place and won't be regularly disconnected.
No. A digital amplifier (such as a Class D or switching power amplifier) refers to the internal amplification topology, which uses high-frequency switching for efficiency. A DSP amplifier incorporates a Digital Signal Processor to apply crossover, EQ, and dynamics processing to the signal before amplification. Some products combine both technologies.
Choose Euroblock when the installation is permanent and cables will be terminated on-site without pre-made connectors. XLR is the better choice for portable or frequently reconfigured setups, as it allows quick connect/disconnect without tools.
