Class AB amplifiers are the traditional standard — reliable and clean but inefficient. Class G improves on that by using multiple supply rails to cut power waste. Class GB takes it further, combining Class G's efficiency with Class B's switching speed for better thermal performance and audio fidelity, making it a strong choice for professional stereo power amplifiers and touring rigs.
Choosing the wrong amplifier topology doesn't just affect sound quality — it affects heat output, power bills, gear longevity, and how your system holds up under sustained load. For audio engineers, system integrators, and touring professionals sourcing professional stereo power amplifiers, understanding the differences between Class AB, Class G, and Class GB is a practical decision, not just a technical one.
This post breaks down how each topology works, where each one excels, and how to match the right class to your application — whether you're specifying a digital power amplifier for a fixed installation, selecting a China power amplifier for touring, or comparing plate amplifier designs for subwoofer cabinets.
Class AB is the most widely used amplifier topology in professional audio. It combines Class A operation (where the output transistors conduct continuously) with Class B operation (where each transistor handles one half of the audio waveform). The result is a design that avoids the crossover distortion found in pure Class B while achieving reasonable efficiency compared to Class A alone.
Efficiency for Class AB typically falls between 50% and 65%. That means up to 35–50% of the power drawn from the wall becomes heat, not sound. For large venues or systems running long hours, that heat has to go somewhere — which drives up chassis size, fan requirements, and cooling complexity.
When Class AB makes sense:
Applications where total harmonic distortion (THD) must be kept extremely low and budget is constrained
Smaller fixed installations where heat management is straightforward
Systems where the audiophile warmth of an analog design is a priority over power efficiency
Limitations to keep in mind:
High heat output reduces component lifespan in high-duty-cycle environments
Heavier power supply requirements add chassis weight
Less efficient at low signal levels, where most audio programs spend most of their time
Class G builds on Class AB by introducing multiple power supply voltage rails. Rather than running the output stage at a fixed, high supply voltage at all times, Class G switches between lower and higher rails depending on the instantaneous signal level. During quiet passages, the output stage draws from the lower rail, consuming far less power. When the signal peaks, the higher rail kicks in to supply the headroom needed.
The efficiency gain is significant. Class G amplifiers typically achieve 70–80% efficiency, compared to 50–65% for Class AB. That translates directly to lower operating temperatures, reduced cooling requirements, and less strain on power infrastructure — a measurable advantage for digital power amplifiers in permanent installations and China digital amplifier designs optimized for cost-efficient manufacturing.
Where Class G performs well:
High-power fixed installations where continuous operation is expected
Venues with tight rack-space and thermal management constraints
Applications where power efficiency reduces long-term operating costs
Where it has trade-offs:
Switching between supply rails can introduce transient artifacts if not engineered carefully
Circuit complexity increases compared to Class AB
Class GB is a refinement of the Class G topology. It retains the multi-rail supply switching of Class G but incorporates Class B-style output stage operation — specifically designed to eliminate the switching distortion that can occur at rail transition points.
The result: Class GB amplifiers combine the efficiency gains of Class G with lower distortion characteristics that rival well-implemented Class AB designs. According to AUWAY Audio's PA series specifications, Class GB designs can achieve <0.05% THD at 8Ω, 1kHz, 1/10 power — a figure competitive with the best Class AB professional stereo power amplifiers at a fraction of the heat output.
Class GB amplifiers also tend to achieve a damping factor of >400, which means tighter control over speaker cone movement. That translates to more accurate bass reproduction — a critical spec for subwoofer-heavy applications like nightclubs, outdoor festivals, and concert venue amplifier systems.
In practical terms: Class GB is approximately 30% more efficient than Class AB, running cooler under load and extending component lifespan in demanding, continuous-duty scenarios.
Feature | Class AB | Class G | Class GB |
|---|---|---|---|
Efficiency | 50–65% | 70–80% | 75–85% |
THD | Very low | Low–moderate | Very low |
Heat output | High | Moderate | Low–moderate |
Circuit complexity | Low | Moderate | Moderate–high |
Rail switching artifacts | None | Possible | Minimized |
Damping factor | Moderate–high | High | High (>400 typical) |
Ideal use case | Studio, small installs | Large fixed installs | Touring, high-duty-cycle installs |
Weight/chassis size | Larger | Moderate | Moderate |
Class D — sometimes called a digital power amplifier or switching amplifier — operates on a completely different principle. Instead of linear amplification, Class D uses pulse-width modulation (PWM) to switch output transistors on and off at high frequency (typically 300kHz–1MHz+). The output is then filtered to reconstruct the audio signal.
Efficiency for Class D amplifiers typically exceeds 90%, making them the lightest and most compact option for high-output applications. The AUWAY D1800, for example, delivers 4x1800W at 8Ω in a 1U chassis weighing just 12kg — a power-to-weight ratio impossible to achieve with Class AB, G, or GB designs.
Choose Class D if:
Weight and rack space are primary concerns (touring with line arrays, for example)
Power output requirements are extreme relative to available rack space
Universal voltage operation (90V–265V) is needed for international touring
Choose Class GB if:
Audio fidelity and low distortion are the top priority
The application demands stable, predictable analog performance
Long-term installation reliability matters more than size reduction
Both topologies have their place. A well-specified China plate amplifier or China power amplifier catalog will typically include both Class D and Class GB options for exactly this reason — they solve different problems.
The answer depends on three variables: duty cycle, power density requirements, and audio quality tolerance.

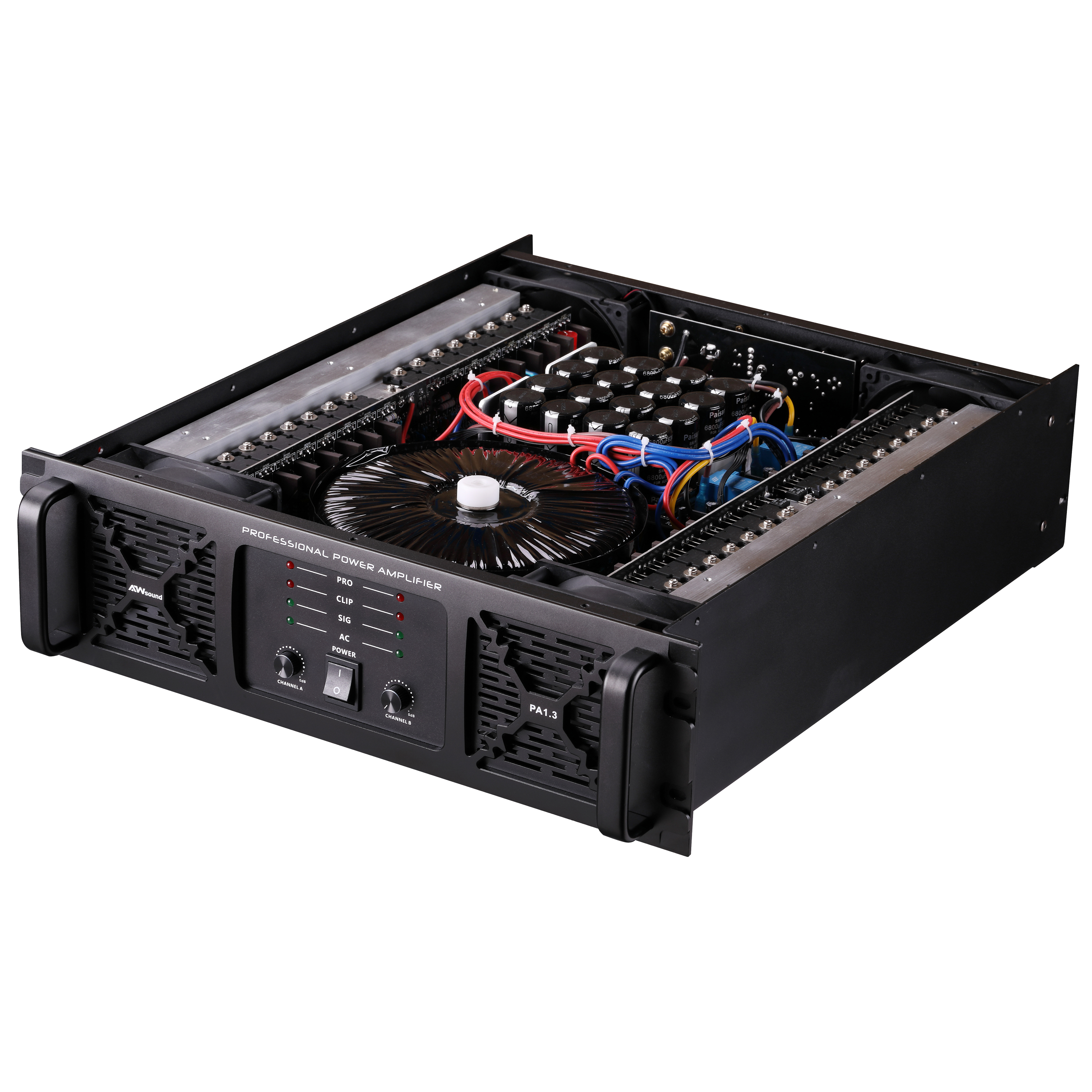

For touring sound reinforcement (medium to large venues, outdoor festivals, concert hall speaker systems), Class GB professional stereo power amplifiers offer the best balance. The AUWAY PA1.3 and PA1.5, for example, deliver 2x1300W and 2x1450W at 8Ω respectively through Class GB circuits, with a 25V/μs slew rate, four variable-speed cooling fans, and a reinforced 3U touring chassis — purpose-built for road use.
For permanent installations (megachurches, performing arts centers, conference facilities), Class GB and Class G both work well. Class GB's lower THD gives it an edge in critical listening environments where speech intelligibility and musical detail matter.
For high-power, weight-sensitive applications (line array touring systems, stadium deployments), Class D digital power amplifiers like the AUWAY D1800 deliver maximum output per kilogram, with PFC power supplies that handle fluctuating mains voltage without specification compromise.
For budget-sensitive installs where the amplifier runs moderate hours and heat management is simple, Class AB remains a proven, cost-effective option.
Class GB refers to a hybrid amplifier topology that combines Class G's multi-rail switching power supply with Class B-style output stage operation. The design achieves higher efficiency than Class AB (typically around 75–85%) while minimizing the switching artifacts associated with standard Class G designs. Class GB professional power amplifiers typically deliver THD figures below 0.05% and damping factors above 400.
For sustained live sound applications — concerts, touring, nightclub installations — Class GB generally outperforms Class AB on efficiency and thermal management. Lower heat output means the amplifier runs more reliably over long sets, components last longer, and cooling fans work less aggressively. Audio quality is comparable; some engineers prefer the transient response of well-implemented Class GB designs.
Class D uses high-frequency PWM switching to achieve 90%+ efficiency in an extremely compact, lightweight chassis. Class GB uses analog multi-rail linear amplification to achieve 75–85% efficiency with very low distortion. Class D excels when weight and size matter most. Class GB excels when sonic accuracy and reliable analog performance are the priority.
Class GB technology allows manufacturers to build high-output professional stereo power amplifiers that run cool, consume less power, and meet the reliability demands of touring and fixed installation markets — all without the additional DSP complexity of Class D designs. For a China power amplifier manufacturer like AUWAY, Class GB provides a proven, cost-competitive path to professional-grade performance at scale.
Consider three factors: the venue's acoustic environment (speech-focused vs. music-focused), the expected duty cycle (hours per day of operation), and the power and impedance requirements of the speaker system. For demanding, all-day installations in critical listening environments, Class GB professional stereo power amplifiers offer the right combination of efficiency, low distortion, and long-term reliability.
Amplifier topology is one of the most consequential choices in a professional audio system design — yet it's often treated as a secondary specification. Class AB remains a valid choice for moderate-duty applications. Class G and Class GB raise the bar on efficiency and thermal performance. Class D digital power amplifiers push the limits of power density for weight-sensitive rigs.
The clearest rule: match the topology to the workload. A touring professional running a six-hour festival has different needs than an installer commissioning a conference center system. Understanding what each class does — and why — puts you in a better position to specify the right professional stereo power amplifier, whether you're sourcing a China plate amplifier, a digital power amplifier, or a dedicated Class GB touring unit.
For product specifications on Class GB amplifiers like the AUWAY PA1.3 and PA1.5, or Class D digital power amplifiers like the D1800, visit cn-auway.com.
