Class H power amplifiers have emerged as a cornerstone in high-performance audio systems, offering unparalleled efficiency, power output, and stability. Utilizing dynamic power supply tracking, they optimize power consumption, making them a more efficient choice compared to traditional amplifier classes. This efficiency is particularly evident in high-power applications where maintaining sound quality and minimizing energy loss is crucial. In this article, we will delve into the design principles behind Class H amplifiers, explore their impressive power output capabilities, and examine their stability under demanding conditions. We'll also highlight their wide-ranging applications in fields such as professional audio, live events, and commercial audio solutions.
Class H power amplifiers are a modern evolution of traditional amplifier designs. The primary difference lies in their power supply management. Unlike Class A, Class B, and Class AB amplifiers, Class H amplifiers dynamically adjust the power supply voltage to track the input signal. This dynamic adjustment allows the amplifier to provide higher power output with significantly less energy waste.
At the heart of the Class H design is dynamic power supply tracking. The amplifier adjusts its power supply voltage according to the signal's requirements, which minimizes power loss. This contrasts with the fixed voltage supply used in traditional designs, which can result in inefficiency, especially at low power levels. With Class H technology, the amplifier uses a higher voltage supply only when needed, reducing power consumption during quieter periods of the signal.
Increased Efficiency: By adjusting the power supply dynamically, Class H amplifiers maintain efficiency across various signal levels.
Lower Heat Generation: With less energy wasted as heat, Class H amplifiers operate cooler than traditional amplifiers.
Compact Design: Higher efficiency leads to less bulk and better heat dissipation, which is particularly valuable for portable or space-constrained installations.
Feature | Class A | Class B | Class AB | Class H |
Efficiency | Low | Medium | Moderate | High |
Heat Generation | High | Medium | Moderate | Low |
Power Output | Constant, linear | Moderate | Moderate | Variable, efficient |
Complexity | Simple | Simple | Moderate | Complex |
Cost | High | Low | Moderate | Moderate |
Class H amplifiers are particularly advantageous in high-power audio systems where efficiency and thermal management are critical.

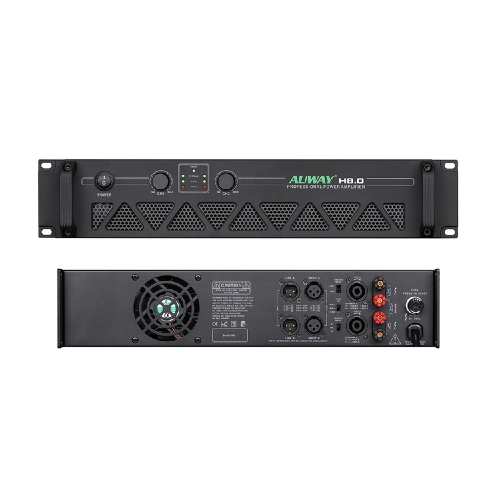

One of the most significant advantages of Class H amplifiers is their power output. These amplifiers are designed to handle high loads while maintaining exceptional efficiency. For example, the H8.0 model offers 2×800W at 8Ω and can achieve even higher outputs when in bridge mode. This high power output is achieved without compromising the sound quality or generating excessive heat.
Class H amplifiers are highly versatile, providing several operating modes:
Stereo Mode: Ideal for smaller setups or when high power is required for individual channels.
Bridge Mode: Increases the output power by combining both channels, ideal for driving larger speakers in professional audio systems.
Parallel Mode: Provides more output by combining multiple amplifiers to drive a single load.
These modes provide users with the flexibility to adapt the amplifier’s power to different environments, ensuring optimal performance.
Model | Power Output (8Ω) | Power Output (4Ω) | Bridge Mode Output (8Ω) |
H4.0 | 2×400W | 2×600W | 2×800W |
H6.0 | 2×550W | 2×800W | 2×1100W |
H8.0 | 2×800W | 2×1200W | 2×1600W |
These examples demonstrate how Class H amplifiers provide high power output with excellent efficiency, allowing them to be used in both small and large-scale applications.
The dynamic power supply voltage adjustment reduces the need for excessive power consumption. Unlike traditional amplifiers that might waste power during low signal levels, Class H amplifiers only consume what is necessary to reproduce the signal accurately. This makes them ideal for continuous, high-demand environments like concerts, conferences, and live performances.
Stability is crucial for any audio amplifier, particularly in high-power environments. Class H amplifiers are designed with advanced protection circuits to ensure stable performance even under extreme conditions. These protection mechanisms prevent damage caused by excessive current, heat, or voltage spikes, ensuring longevity and reliability.
Class H amplifiers include several protection mechanisms to maintain stable operation:
Overload Protection: Prevents damage to the amplifier by limiting current during high load situations.
Thermal Protection: Protects the amplifier from overheating by shutting it down when temperatures exceed safe levels.
DC Fault Protection: Safeguards the amplifier from DC voltage, which can damage speakers and other components.
Automatic Recovery: After a fault condition, the amplifier will automatically recover once normal conditions are restored.
These features contribute to the amplifier’s overall stability, especially in demanding professional applications.
Class H amplifiers are designed to minimize noise generation. Their dynamic power supply tracking ensures that the amplifier only uses the necessary voltage, which helps maintain sound clarity and minimize distortion. As a result, Class H amplifiers offer both high power output and clean, stable audio performance, even during intense usage.
Class H amplifiers continuously adjust the power supply voltage to match the input signal’s requirements, ensuring optimal power delivery and stable operation. This dynamic adjustment ensures that the amplifier remains efficient, cool, and stable across various signal levels, even during peak performance.
Class H amplifiers are widely used in KTVs, nightclubs, and other entertainment venues. These amplifiers provide the power needed for large audio setups while ensuring efficient operation and low heat generation. This makes them ideal for environments where sound clarity and power efficiency are paramount.
For conferences, seminars, and live events, Class H amplifiers deliver clear sound across large venues. Their ability to deliver high power output in stereo, bridge, and parallel modes makes them versatile for various setup configurations, ensuring that the audio reaches every corner of the venue with minimal distortion.
Class H amplifiers excel in high-power applications, including concerts, large audio installations, and theatrical performances, where sound fidelity and consistency are crucial. The ability to manage high-power outputs with reduced energy consumption ensures that the audio system performs optimally even during long performances.
Class H transformer-based power amplifiers provide an advanced solution for audio professionals who demand high efficiency, powerful output, and exceptional stability. With their cutting-edge design principles, adaptable power modes, and robust protection features, these amplifiers are well-suited for a wide range of high-performance audio applications, from live events to professional sound systems. As the audio industry evolves, Class H amplifiers will continue to play a pivotal role in delivering clear, dynamic sound with unmatched reliability.
At Enping Auway Audio Equipment Co., Ltd., we are committed to providing top-tier audio solutions, including Class H power amplifiers, to meet the growing demands of modern audio systems. Our products are designed to offer superior performance and durability, ensuring that every sound system we support delivers the best possible audio experience. To explore our products and learn more about how we can elevate your audio setups, feel free to get in touch with us. We are ready to assist you in finding the ideal solution for your needs.
Class H amplifiers offer higher efficiency and lower heat generation compared to other amplifier classes such as Class A and Class AB. They dynamically adjust the power supply voltage to match the input signal, providing better performance with lower energy consumption.
Class H amplifiers provide variable power output depending on the signal requirements, whereas Class AB amplifiers use a fixed power supply voltage. This allows Class H amplifiers to offer greater efficiency and lower energy waste, especially during low signal levels.
Yes, Class H amplifiers are ideal for high-power applications such as concerts, KTV, and live events, where high power output and efficiency are essential. They can deliver significant power while maintaining stable operation and clean sound.
Class H amplifiers include protection features like overload protection, thermal protection, DC fault protection, and automatic recovery. These mechanisms ensure stable operation and protect the amplifier from damage in demanding environments.
Class H amplifiers maintain stability through dynamic voltage adjustment, which ensures that the power supply matches the input signal’s requirements. This guarantees consistent power delivery, reduced heat generation, and optimal performance under high-demand conditions.
