Getting the sound right for a live performance is both an art and a science. Whether it's a concert, a corporate event, or a house of worship service, the quality of your audio can make or break the experience. At the heart of any powerful sound system is the live sound amplifier, a crucial component that often works behind the scenes to deliver clean, powerful audio to your audience.
Understanding amplifiers is key to achieving professional-grade sound. This guide will walk you through everything you need to know about live sound amplifiers. We’ll explore what they are, how they function, the different types available, and the key factors to consider when choosing the right one for your specific needs. By the end, you'll have the knowledge to select an amplifier that ensures your live events sound crystal clear and impactful.

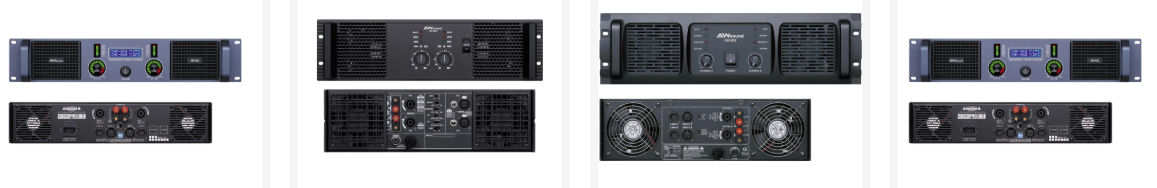

A live sound amplifier, often called a power amplifier, is an electronic device designed to increase the power of a low-level audio signal. In a typical live sound setup, the signal from a microphone or instrument is first processed by a mixing console. This "line-level" signal is too weak to drive large passive speakers on its own.
This is where the amplifier comes in. It takes the line-level signal from the mixer and boosts it significantly, providing enough electrical power to move the drivers inside the speakers and produce sound at the volume required for a live audience. Essentially, it's the engine that powers your passive sound system, transforming a quiet signal into a room-filling performance.
The primary function of a power amplifier is to create a much larger, more powerful replica of the original audio signal. It does this by using an external power source—usually AC power from a wall outlet—to amplify the incoming signal from the mixer.
The process involves several stages:
Input Stage: The amplifier receives the weak line-level signal from the mixer. This stage prepares the signal for amplification, ensuring it's clean and free from interference.
Gain Stage: Here, the signal's amplitude is increased. Transistors or other electronic components use the power from the electrical outlet to boost the signal's voltage and current.
Output Stage: This final stage delivers the high-power signal to the speaker terminals. It's designed to handle the heavy electrical load required to drive the speakers efficiently and without distortion.
An amplifier's ability to perform this task cleanly and efficiently is what separates a high-quality model from a lesser one. The goal is to add power without adding noise or altering the original character of the sound.
Power amplifiers are categorized based on their circuit design, often referred to as "classes." Each class has different characteristics regarding efficiency, heat generation, and audio fidelity. Here are the most common classes you'll encounter for live sound.
Amplifier Class | Key Characteristics | Best For |
|---|---|---|
Class A | High audio fidelity, very low distortion. Inefficient, generates significant heat. | High-end studio monitoring and audiophile systems where sound quality is paramount and power needs are low. |
Class B | More efficient than Class A but suffers from "crossover distortion" at low signal levels. | Rarely used on its own in modern professional audio due to distortion issues. |
Class AB | A hybrid of A and B, offering a good balance between the sound quality of Class A and the efficiency of Class B. | The most common type for live sound, studio, and home audio due to its reliable performance and good value. |
Class D | Highly efficient (often >90%), lightweight, and generates very little heat. | Modern live sound reinforcement, portable PA systems, and subwoofers where high power and low weight are crucial. |
Class H | A variation of Class AB that uses a variable power supply rail to improve efficiency, especially with dynamic musical content. | High-power live sound applications, such as large concerts and festivals, where efficiency at high output is needed. |
For most live sound applications today, Class AB and Class D amplifiers are the most practical choices. Class AB has long been the industry standard for its reliability and sound quality, while Class D is rapidly gaining popularity for its efficiency, portability, and high power-to-weight ratio.
Selecting the right live sound amplifier requires matching its specifications to your speakers and venue. Here are the critical factors to consider.
Power is the most important specification. It's measured in watts and indicates how much power the amplifier can deliver to the speakers.
Continuous Power (RMS): This is the most reliable measure, representing the power an amplifier can consistently deliver over time.
Peak Power: This indicates the maximum power the amplifier can produce in brief bursts.
As a general rule, your amplifier should be able to provide about 1.5 to 2 times the continuous power rating (RMS) of your speakers. For example, if your speakers are rated at 300 watts RMS, an amplifier that can deliver 450-600 watts per channel into the same impedance is a good match. This "headroom" prevents the amplifier from clipping (distorting) and potentially damaging your speakers.
Impedance, measured in ohms (Ω), is the electrical resistance of your speakers. Amplifiers are rated to deliver different amounts of power into different impedances (typically 8, 4, or 2 ohms).
Most professional speakers have an impedance of 8 ohms.
When you connect two 8-ohm speakers in parallel to a single amplifier channel, the total impedance drops to 4 ohms.
Ensure your amplifier is stable at the impedance load you plan to use. Most modern amplifiers are stable down to 4 ohms, and many professional models can handle 2-ohm loads, though this generates more heat.
Stereo (2-Channel): The most common configuration, perfect for running a main left/right PA system.
Multi-Channel (4, 6, 8 channels): Useful for powering monitor wedges, bi-amped systems, or multi-zone installations.
Mono: A single-channel amplifier, often used to power subwoofers.
Damping factor measures an amplifier's ability to control the speaker cone's movement after the signal has stopped. A higher damping factor (generally >200) results in tighter, more defined bass and better overall transient response. This is particularly important for subwoofers.
Check the amplifier's input and output connectors to ensure they match your other equipment.
Inputs: Common inputs include XLR, 1/4" TRS (balanced), and RCA (unbalanced). XLR is the standard for professional live sound.
Outputs: Speaker outputs are typically Speakon or binding posts. Speakon connectors are the modern standard for their secure, locking design.
Many modern amplifiers include built-in DSP, which can be a huge advantage. DSP features often include:
Crossovers: To split frequencies between main speakers and subwoofers.
Equalizers (EQ): To tune the sound to the room.
Limiters: To protect speakers from damaging power spikes.
Delay: To align speakers in larger venues.
An amplifier with integrated DSP can simplify your setup by eliminating the need for separate outboard processing gear.
A live sound amplifier is more than just a power source; it is the heart of your sound system. Choosing the right one ensures your audio is clean, powerful, and reliable, allowing your performance to connect with the audience exactly as intended. By carefully considering your power needs, speaker impedance, and the unique demands of your venue, you can select an amplifier that will serve you well for years to come.
