For decades, sound engineers and venue managers faced a difficult trade-off. You could choose the pristine, warm sonic character of Class AB amplification, but you had to accept massive heat generation and heavy, back-breaking equipment racks. Alternatively, you could opt for Class D technology, which offered incredible efficiency and lightweight portability, though purists often argued it lacked the dynamic depth of its analog counterparts.
But what if you didn't have to choose? The Class TD POWER Amplifier represents the next evolution in professional audio, effectively bridging the gap between these two worlds. It is designed for those who refuse to compromise—delivering the power density required for modern touring rigs while maintaining the audiophile-grade fidelity that critical listening environments demand. By optimizing power conversion to minimize heat without sacrificing signal integrity, this technology is redefining what is possible in large-scale sound reinforcement.
To understand why this architecture is superior for professional applications, we must first look under the hood. Class TD (Tracking Class D) is essentially a hybrid topology. It uses a Class AB amplifier for the final output stage—ensuring the high-quality audio signal path—but pairs it with a tracking Class D power supply.
This tracking power supply modulates the voltage rails to track the output signal. In simpler terms, the power supply provides just enough voltage to the amplifier to produce the required output, with a small headroom. This drastically reduces the power dissipation (heat) that typically plagues standard Class AB amps. The result is an amplifier that sounds like a traditional analog unit but operates with the cool efficiency of a modern digital system.
Efficiency isn't just a buzzword; in a touring environment, it translates to logistics, reliability, and cost savings. When we talk about a High-Efficiency Touring Amplifier, we are referring to a unit that converts more energy into sound and less into waste heat.
Heat is the enemy of electronics. Traditional amplifiers running at full tilt generate immense heat, requiring aggressive cooling systems and ample rack spacing. Class TD amplifiers, like those from Auway Audio, run significantly cooler. This increases the lifespan of the internal components, from capacitors to transistors, reducing the risk of thermal shutdown during a mid-summer festival set.
Venues have limited power availability. An amplifier that draws less current from the wall to produce the same acoustic output allows you to run more subs and tops on the same circuit breakers. This efficiency is crucial for mobile production teams working in diverse venues with varying power infrastructures.
Because the core amplification is still linear (Class AB), you retain the low Total Harmonic Distortion (THD) and high Signal-to-Noise Ratio (SNR) associated with premium audio. You get the punchy bass and crystal-clear highs required for live concerts without the "digital haze" sometimes associated with early Class D iterations.
When powering large-scale line arrays or demanding subwoofer stacks, headroom is king. A 2x2100W @8Ω Touring Amplifier provides the massive wattage necessary to move air without clipping the signal.

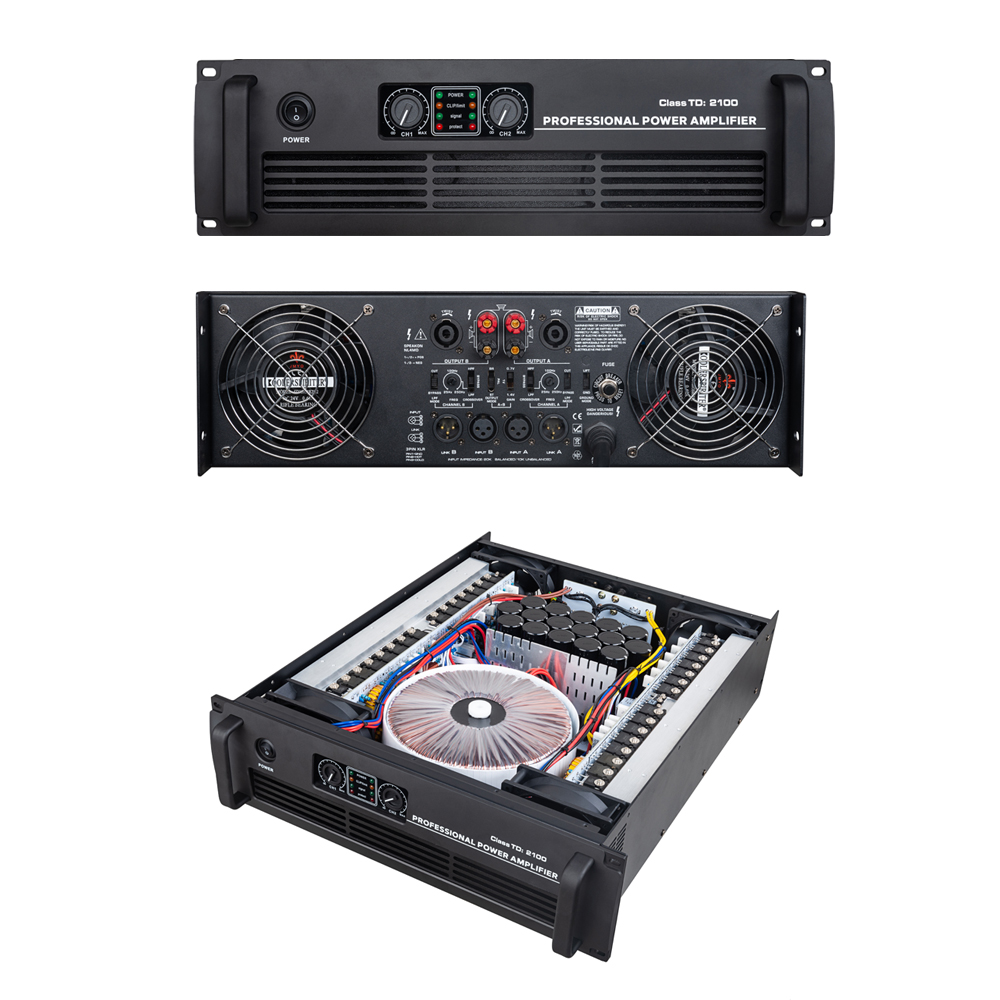

A prime example of this capability is the TD2100 Professional TD-Class Power Amplifier. This unit is engineered to withstand the rigors of the road while delivering consistent clarity. It features a rugged, tour-ready chassis and advanced cooling systems that allow it to perform under high-demand conditions.
Here is a breakdown of the performance specifications you can expect from this tier of amplification:
Feature | Specification | Impact on Performance |
|---|---|---|
8Ω Stereo Power | 2 x 2100W | Massive headroom for driving main PA speakers. |
2Ω Stereo Power | 2 x 5000W | Ability to drive multiple speakers in parallel. |
Signal-to-Noise Ratio | >110dB | Ultra-quiet operation, essential for dynamic range. |
Damping Coefficient | >400 | Tight, controlled bass response (stops the woofer cone quickly). |
Total Harmonic Distortion | ≤0.5% | Clean audio reproduction, even at high volumes. |
Slew Rate | 105V/μS | Excellent transient response for snappy percussion. |
The TD2100 utilizes a 3U rack-mount form factor to house its massive custom-wound toroidal transformer and military-grade power transistor arrays. This ensures that even when the bass drops, the amplifier has the current reserves to sustain the note without sagging.
In professional audio, equipment failure is not an option. Whether you are powering a church installation or a rock concert, the show must go on. Class TD amplifiers are renowned for their robust protection suites.
Auway Audio integrates comprehensive protection circuits against common hazards:
Overload Protection: Prevents the amp from drawing more current than is safe.
Short Circuit Protection: Instantly cuts output if speaker wires cross, preventing catastrophic failure.
Thermal Protection: Sensors monitor internal temperatures and adjust fan speeds or mute the amp if it exceeds safe operating limits.
Clip Limiting: Prevents square-wave distortion that can blow high-frequency drivers.
These safeguards ensure that a Class TD POWER Amplifier remains operational even when pushed to its limits, protecting both the investment in the amplifier and the speakers attached to it.
If you are a sound engineer, venue manager, or part of a touring production team, the transition to Class TD technology offers a clear competitive advantage. It solves the physical and electrical constraints of high-power amplification.
By choosing a model like the TD2100, you are investing in a system that offers the versatility of input/output configurations and compatibility with diverse speaker systems. It represents a unified standard of performance, ensuring that whether you are in a recording studio or a sports arena, your audio remains transparent, powerful, and reliable.
The debate between power and efficiency is effectively over. With Class TD technology, professional audio setups can achieve the high-fidelity sound of analog systems with the reliability and energy savings of modern engineering. For those looking to upgrade their touring rigs or fixed installations, the TD2100 serves as a benchmark for what modern amplification should be.
