To rack-mount a Class TD power amplifier, plan for weight and airflow, secure it with proper rack rails and rear support, leave clearance for ventilation, connect signal and speaker cables correctly, then power up and verify protection indicators. A high-power unit like the AUWAY TD2500 weighs 46 kg, so support and cooling are critical.
Setting up a Class TD amplifier the right way protects your gear, keeps your signal clean, and prevents costly downtime during a show. A Class TD power amplifier blends the warm sound of Class AB with the efficiency of Class D, which makes it a favorite for large live events and fixed installations. But that performance means nothing if the unit overheats or shakes loose in transit.
This guide walks you through every step—from prepping your rack to firing up the amp for the first time. Whether you're building a touring rig or a permanent install, you'll learn how to mount your audio power amplifier safely and get the best sound out of it.

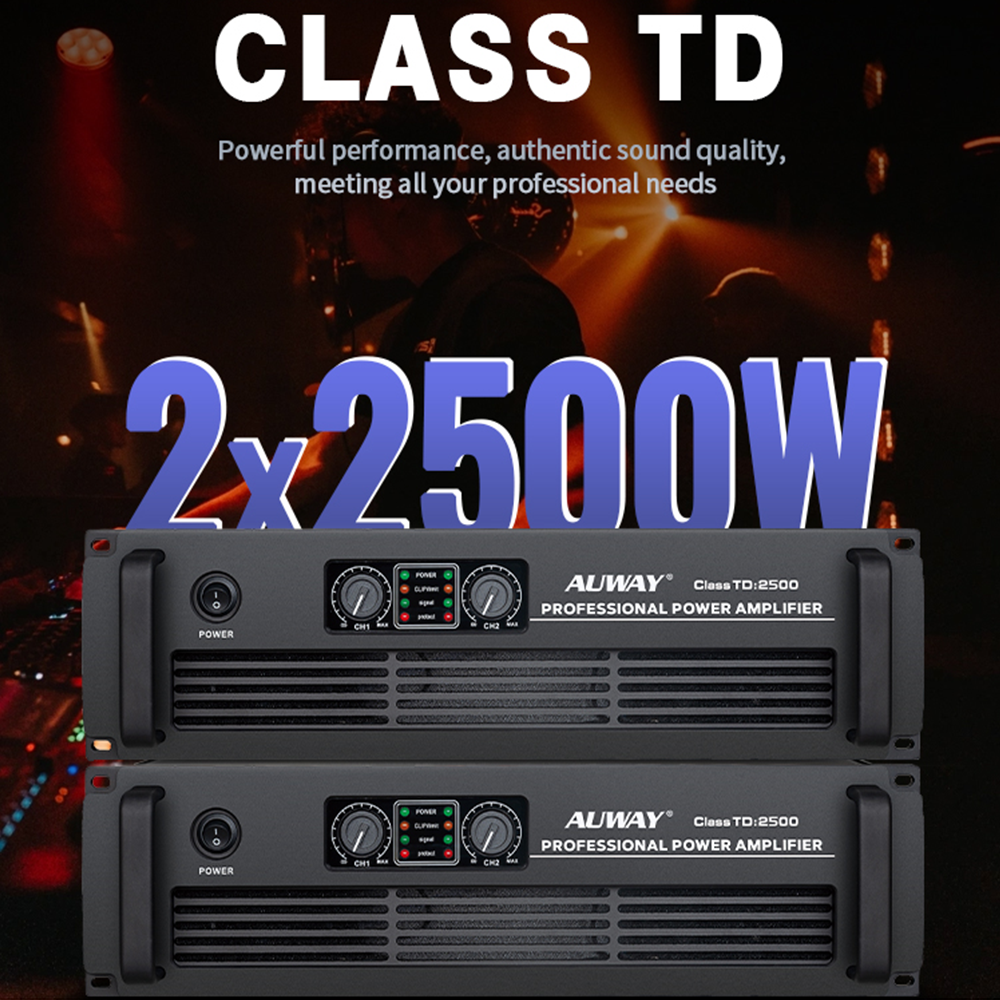

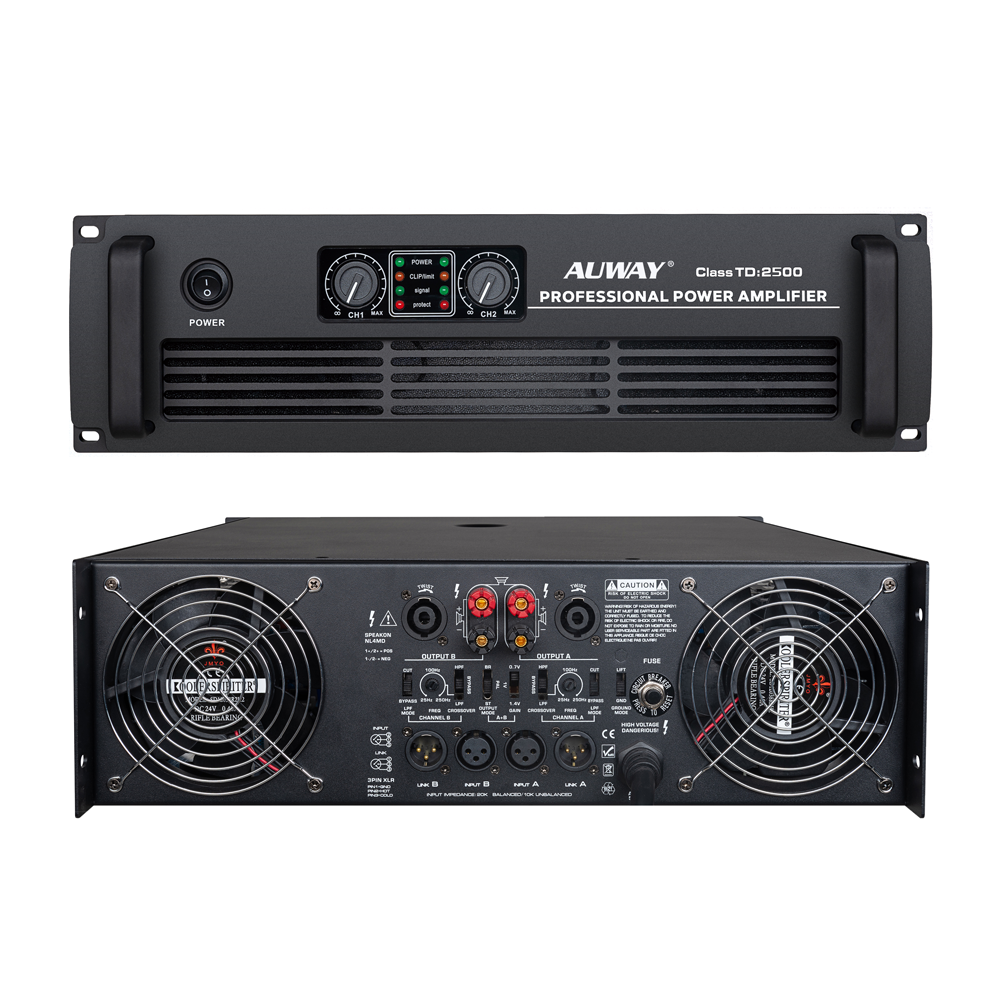

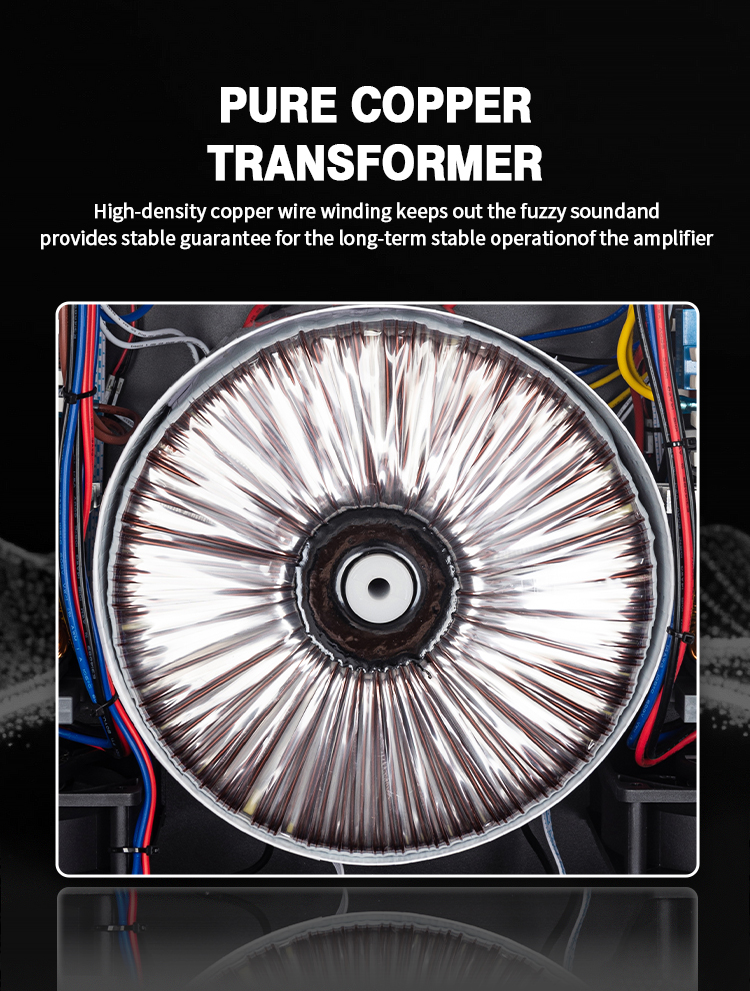

A Class TD amplifier is a professional sound amplifier that uses a hybrid circuit design. It captures the smooth, detailed tone of Class AB amplifiers while delivering the high efficiency of Class D. The AUWAY TD2500, for example, reaches 85%+ efficiency with a 105V/μS slew rate, less than 0.5% THD, and a signal-to-noise ratio above 110dB.
That kind of power comes in a heavy, 3U chassis. The TD2500 measures 483 × 565 × 130 mm and tips the scales at 46 kg. A poor rack setup can strain the chassis, block airflow, and trigger the amp's protection circuits mid-performance. Getting the mounting right the first time keeps your rig stable and your sound consistent.
Gather these items before you start:
A standard 19-inch equipment rack with enough rack units (3U per TD2500)
Rack rails, cage nuts, and mounting screws rated for heavy amplifiers
A rear rack support tray or shelf for weight-bearing units
Balanced signal cables (XLR) and heavy-gauge speaker cables
A power source rated for 220V AC (50–60Hz)
A second person to help lift—46 kg is not a one-person job
Place heavy amplifiers like the TD2500 in the lower third of the rack. This lowers the center of gravity and keeps the whole rack stable, especially in touring cases. Leave at least 1U of open space above and below each amp for airflow. Class TD amps run cooler than Class AB, but they still need room to breathe.
Line up the amplifier's front rack ears with the rail holes. Insert cage nuts into the rails, then hand-thread the screws before tightening. Never let the front screws carry the full weight of the amp—they're there to hold it in place, not support it.
A high-power audio power amplifier needs rear bracing. Install a support tray or rear rack rails so the back of the chassis rests on something solid. Without it, vibration and road shock can crack the front panel or bend the ears over time.
Use balanced XLR cables for the inputs. The TD2500 offers an input sensitivity of 0.7V / 1V / 1.4V and an input impedance of 10KΩ balanced. Run speaker cables from the outputs to your loudspeakers, matching the impedance to your setup. Keep signal and power cables separated to avoid hum and interference.
Decide whether you're running stereo or bridge mono. The table below shows how output changes with load and mode—use it to match the amp to your speakers safely.
Load & Mode |
TD2500 Output |
|---|---|
8Ω Stereo |
2 × 2500W |
4Ω Stereo |
2 × 3750W |
2Ω Stereo |
2 × 6000W |
8Ω Bridge |
7500W |
4Ω Bridge |
9800W |
Running an amp below its minimum rated impedance can trigger protection or damage your speakers. Always confirm your speaker load before powering on.
Turn the amp on last, after every other component in the signal chain. Watch the status lights: ACTIVE, SIGNAL (-40dB), CLIP (PEAK), and PROTECTION. A steady ACTIVE light with no protection warning means you're good to go. If the PROTECTION light stays on, power down and check your cabling and load.
Reliability comes down to heat management and clean power. Class TD amps like the TD2500 include multi-stage protection—DC offset, over-temperature, short-circuit, infrasonic, and RF interference—but good habits still matter.
Keep rack fans running and filters clean during long events
Avoid stacking amps directly on top of each other without airflow gaps
Check speaker cables regularly for wear, especially on touring rigs
Never block the rear vents with cable bundles or storage
For 24/7 fixed installations, schedule regular inspections. A little maintenance keeps your professional sound amplifier performing at its best for years.
A Class TD amplifier gives you serious power without the heat and energy waste of older designs. But the setup makes or breaks that performance. Support the weight properly, leave room for airflow, match your impedance, and power up in the right order. Do these things, and your rig will deliver clean, reliable sound show after show.
Ready to spec a Class TD power amplifier for your next project? Explore the AUWAY TD2500 and the full TD series to find the right fit for your venue.
The TD2500 delivers 2 × 2500W at 8Ω in stereo, 2 × 3750W at 4Ω, and 2 × 6000W at 2Ω. In bridge mono mode, it produces 7500W at 8Ω and 9800W at 4Ω.
The AUWAY TD2500 uses a 3U rack space, measuring 483 × 565 × 130 mm. Always confirm the rack depth too, since high-power amps often have deep chassis.
Yes. A unit like the TD2500 weighs 46 kg, so front rack ears alone can't carry the load. Rear support rails or a shelf prevent panel damage and keep the amp secure during transport.
The TD2500 runs on 220V AC at 50–60Hz. Make sure your circuit can handle the current draw of a high-power amplifier, especially when running multiple units in one rack.
Class TD amplifiers suit large live events, stadiums, festivals, touring rigs, and permanent installs like arenas, theaters, and megachurches. They're ideal for high-power subwoofer arrays and main PA systems.
