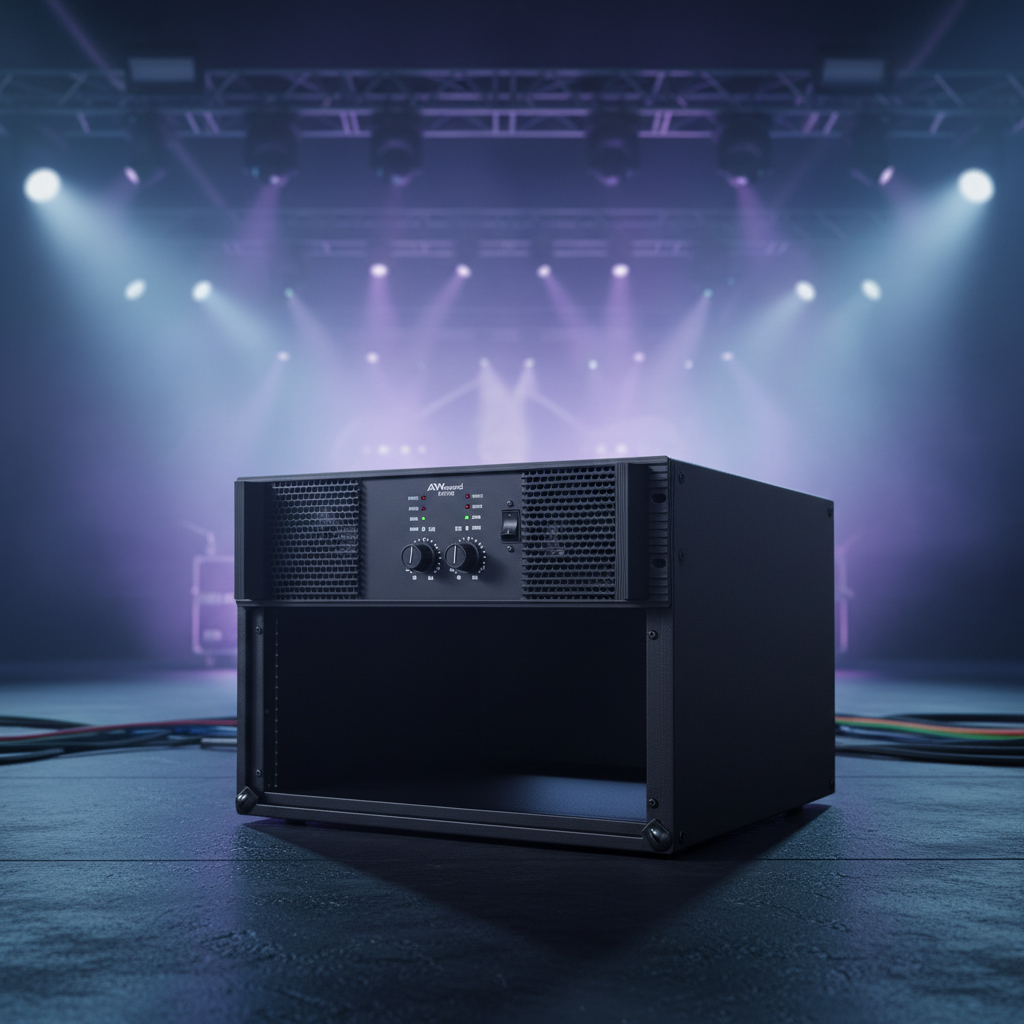

For professional sound engineers and venue managers, rack space is valuable real estate. The challenge has always been balancing massive power requirements with the need for portability and efficiency. Heavy, overheating amps are a nightmare for logistics and reliability. Enter the FP10000Q 4-channel Digital Amplifier.
This amplifier represents a significant leap forward in professional audio technology. It delivers an impressive blend of brute force and sonic clarity, all packed into a compact chassis. Whether you are powering a massive outdoor festival or outfitting a high-end nightclub, understanding the capabilities of the FP10000Q Amplifier is essential for upgrading your sound reinforcement system.
The secret behind the performance of the FP10000Q lies in its Class TD topology. This innovative design combines the sonic purity of Class B amplification with the high efficiency of Class D technology.
While traditional Class D amps are known for efficiency, they can sometimes lack warmth. The 4-channel Digital Amplifier bridges this gap, offering 93% efficiency while maintaining a total harmonic distortion (THD) of less than 0.03% across the full bandwidth. This means the amp runs cooler, consumes less power, and delivers studio-monitor-level transparency even at high volumes.
When evaluating an amplifier for professional use, the numbers speak for themselves. The fp10000q is designed to deliver high power density without compromising on stability.
Below is a breakdown of the key specifications for this unit:
Specification Item | Details |
|---|---|
Model | FP10000Q |
Channels | 4 Channels |
Output Circuit | Class TD |
8Ω Stereo Power (RMS) | 4 x 1350W |
4Ω Stereo Power (RMS) | 4 x 2100W |
8Ω Bridge Power (RMS) | 2 x 4200W |
4Ω Bridge Power (RMS) | 2 x 5000W |
Frequency Response | 20Hz - 34KHz (+0/-0.3dB) |
THD (20Hz-20KHz for 1W) | < 0.1% |
Signal-to-Noise Ratio | > 112 dBA |
Dimensions | 570 x 580 x 158mm (2U Chassis) |
Net Weight | 13 KG |
If you are managing a touring rig or a mobile production unit, reliability and adaptability are non-negotiable. Here are the most common questions professionals ask about why this amplifier is superior for the road.
Q: Can this amplifier handle unstable power grids found in different venues?
A: Yes. One of the standout features of the FP10000Q is its auto-switching universal power supply. It operates smoothly between 90V and 260V. This means you can take your rig globally without worrying about voltage mismatches or power fluctuations damaging your equipment.
Q: Is it safe to run at high volumes for extended periods?
A: Absolutely. The unit features a comprehensive 12-stage protection system. This includes TourClass protection against short circuits, DC voltage, turn-on/off transients, and current inrush. Additionally, the intelligent multi-stage cooling system ensures the amp stays within safe thermal limits, even when driving line arrays at a festival.
Q: How does the weight compare to traditional amps?
A: At just 13kg (approx. 28 lbs), the 4-channel Digital Amplifier is remarkably lightweight for the power it outputs (up to 10,000W total in bridge mode). This reduces shipping costs and makes load-ins significantly easier for stage crews.
The versatility of the fp10000q makes it suitable for a wide range of professional scenarios. Its high channel count allows for flexible system configurations in a single 2U rack space.
Mega Events & Festivals: Capable of powering large line arrays in stadiums and outdoor concerts. The extended frequency response (20Hz-34KHz) ensures thunderous sub-bass and crystal-clear highs.
Nightclubs & Venues: Perfect for permanent installations requiring consistent, high-density amplification for multizone systems.
Monitor Systems: The 4-channel configuration is ideal for running multiple stage monitor mixes from a single unit.
Broadcast Trucks: The silent operation mode (zero-noise fan in low demand) and compact size make it excellent for critical monitoring in OB vans.
Durability is key for gear that spends its life on the road. This amplifier is built with a reinforced steel chassis and shock-absorbing mounting points, ensuring it can withstand the rigors of touring.
Connectivity is equally professional, featuring 3-pin XLR electronically balanced inputs and reliable 2-pole binding post outputs. For system management, it offers Ethernet and USB control, allowing for remote monitoring of impedance and thermal status.
The FP10000Q 4-channel Digital Amplifier offers an unmatched combination of power, efficiency, and audio fidelity. By choosing a Class TD amplifier that packs 10,000 watts into a lightweight 2U chassis, you are investing in a system that saves space, reduces transport costs, and delivers pristine audio quality.
Ready to experience the pinnacle of professional audio amplification? Visit Auway Audio to learn more about the FP10000Q Amplifier and request a quote for your next project.
