Amplifier overheating represents a critical failure point in any audio system. It causes abrupt thermal shutdowns, severe audio clipping, and permanent hardware damage. Repeated thermal cycles serve as an urgent warning. They indicate a fundamental mismatch between the equipment's capability, the electrical environment, or the acoustic load. Many users rely on reactive troubleshooting. They adjust wiring or add basic ventilation fans to patch the immediate symptoms. While wiring and ventilation fixes solve basic issues, persistent overheating often requires upgrading to higher-efficiency architectures. You cannot simply ignore these thermal warnings. Doing so risks catastrophic equipment failure and extensive repair bills. In this comprehensive guide, you will learn the root causes of thermal overload. We will explore how impedance limits, clipped signals, and infrastructure flaws generate excess heat. You will also discover why modern digital solutions offer superior thermal management. Let us examine how to evaluate, upgrade, and protect your audio infrastructure effectively.
Impedance and Clipping are Primary Triggers: Running speakers below the amplifier’s rated impedance or pushing distorted (clipped) signals exponentially increases heat generation.
Efficiency Dictates Thermal Output: Traditional Class AB amplifiers convert a significant portion of energy into heat, whereas modern Digital POWER Amplifiers operate at 80–90%+ efficiency, drastically reducing thermal load.
Infrastructure Matters: Upgrading an amplifier requires verifying that power wire gauge, grounding points, and ventilation clearances meet standard compliance.
Smart Protection is Essential: Enterprise-grade and high-end enthusiast amplifiers utilize active thermal management and protect-mode circuitry to prevent catastrophic failure.
Impedance mismatching is a leading cause of thermal failure. Amplifiers are rated for specific minimum electrical resistance. We measure this resistance in ohms. Running a 1-ohm load on an amplifier stable only down to 2 ohms creates massive stress. It forces the power supply to draw excess current. The circuitry cannot process this extra current efficiently. Consequently, it converts the overage directly into heat.
Voice coil heating further complicates this issue. During extended use, speaker voice coils become physically hot. Their electrical resistance changes dynamically as temperature rises. This phenomenon is known as impedance rise. Impedance rise forces the amplifier to work harder to maintain consistent wattage output. Over time, this dynamic shift overwhelms internal cooling mechanisms. Always check your equipment's minimum stable impedance rating before wiring subwoofers in parallel.
Clipping occurs when you push the input gain too high. Many people mistake the gain control for a volume knob. This is a crucial and destructive error. Pushing the gain beyond the source unit’s unclipped maximum voltage alters the audio signal. It forces the clean, rounded sine wave to flatten at the top and bottom. This flattening creates a square wave.
Square waves are incredibly destructive to audio equipment. They force the amplifier to hold peak power much longer than intended. Imagine driving a car in first gear on the highway. The engine redlines, and heat builds up instantly. Turning the gain up too high does the exact same thing to your audio circuitry. You force the components past their operational limits. A clipped signal holds maximum voltage for extended milliseconds. These milliseconds add up quickly over a five-minute song. The heat sinks simply cannot pull this continuous thermal energy away from the transistors fast enough. The unit struggles to dissipate the continuous thermal energy, eventually entering protect mode or suffering permanent board-level damage.
Even the highest quality amplifiers fail in poor environments. Your installation infrastructure dictates thermal stability. Three primary environmental failures commonly cause overheating:
Voltage Drops: Inadequate wire gauge starves the equipment. A weak alternator or a failing power supply causes the voltage to dip heavily during bass notes. As voltage drops, the circuitry pulls more current to maintain the required wattage output. Higher current draw generates massive heat.
Chassis Grounding: Poor grounding acts like a kinked water hose. High-resistance ground points create electrical bottlenecks. A bad ground is the most common installation error. Many people screw the ground wire directly over painted metal. Paint is an insulator. It blocks electrical flow. You must sand the metal completely bare. A loose or painted ground creates high resistance, leading to rapid, excess heat accumulation.
Restricted Airflow: Amplifiers rely heavily on convection cooling. Mounting hardware upside down traps heat directly against the internal circuit board. Placing the unit in sealed compartments or underneath tight seating prevents fresh air circulation. Heat sinks require continuous ambient air movement to work efficiently.
Traditional analog architectures face severe thermal realities. Class A and Class AB designs utilize constant voltage rails. Their output transistors remain partially or fully open at all times. Because of this constant active state, they continuously burn off excess power as heat. Typically, Class AB designs only achieve 50% to 60% efficiency.
For every 100 watts drawn from your electrical system, 40 to 50 watts turn into pure heat. They are highly suitable for low-power, high-fidelity applications. However, analog architecture scales poorly in high-demand environments. If you place a high-output Class AB unit in an enclosed space, thermal shutdown becomes an inevitable reality rather than a rare accident.

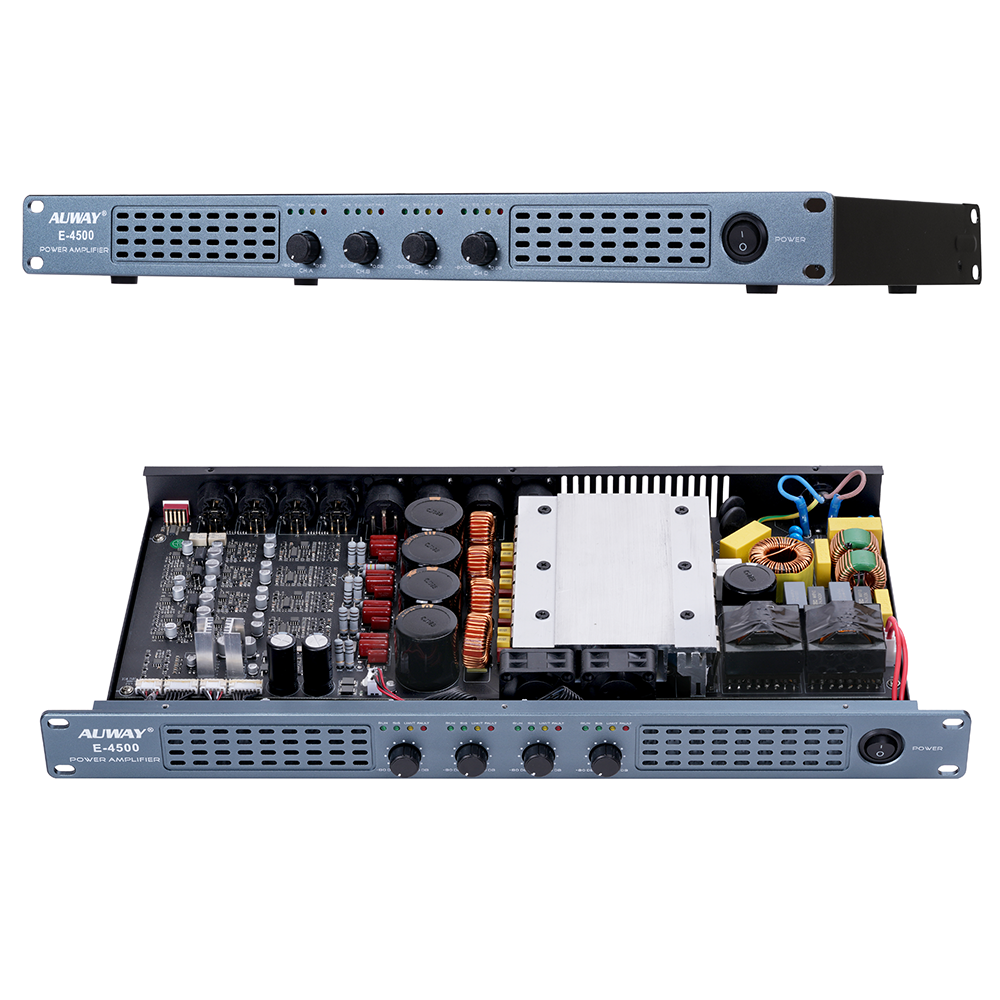

The audio industry has experienced a massive structural shift in recent years. We now rely heavily on Class D architecture for high-demand applications. This switching technology completely changes the thermal equation. Instead of keeping transistors constantly open, the circuitry rapidly pulses them on and off.
This high-speed switching achieves 80% to 90%+ electrical-to-audio efficiency. If you want to eliminate persistent thermal issues, upgrading to a Digital POWER Amplfier is the most logical structural step. The outcome of this digital efficiency is profound. You get a much smaller physical footprint. Heat generation is vastly reduced. Furthermore, they place significantly lower strain on the host electrical system. You gain much more audio output while utilizing less battery reserve.
Amplifier Architecture Comparison Matrix
Feature | Class AB Architecture | Class D (Digital) Architecture |
|---|---|---|
Electrical Efficiency | 50% - 60% | 80% - 90%+ |
Heat Generation | High (Requires large heat sinks) | Very Low (Minimal thermal output) |
Physical Footprint | Large and heavy | Compact and lightweight |
Current Draw | High strain on electrical system | Highly optimized power utilization |
Best Application | Low-power fidelity setups | High-output, enclosed installations |
Upgrading requires a careful evaluation of power ratings. You must actively distinguish between RMS power and peak power. Peak power ratings are largely marketing metrics. Manufacturers use peak ratings to sell inferior products. A 2000-watt peak label might only mean 400 watts of continuous RMS power. If you tune your system expecting 2000 watts, you will max out the gain control. You will send heavily clipped signals to your speakers, causing rapid overheating.
Instead, evaluate only continuous RMS ratings. You must align these continuous ratings with your speaker handling capacities. Underpowering speakers is dangerous because users instinctively push the gain too high to compensate. Additionally, evaluate the physical thermal management systems. Not all heat sinks perform equally. Look for heavy-mass extruded aluminum heat sinks. They absorb and dissipate heat far better than stamped metal. Premium units also feature active cooling fans and intelligent thermal rollback. Thermal rollback automatically reduces output wattage as internal temperatures rise. It keeps the music playing seamlessly while preventing a hard thermal shutdown.
Modern equipment offers advanced onboard diagnostic tools. You should prioritize models equipped with visual clipping indicators. These clip lights typically sit on the remote bass knob or the main chassis. They flash amber or red when the signal distorts. This visual feedback ensures clean signal tuning. It prevents you from unknowingly sending square waves to your speakers.
You must also ensure multi-stage protection is present on the circuit board. Basic fuses are not enough. You need strict short circuit protection to prevent fires if speaker wires accidentally touch. Thermal overload protection acts as the final mandatory safeguard against melting internal components. Finally, DC offset protection prevents direct current from traveling to the speakers and instantly destroying delicate voice coils.
We must address a critical assumption warning. A highly efficient digital model will not fix underlying electrical deficits. It utilizes power much better, but it still requires stable voltage to function correctly. You must verify your host electrical system before deployment.
Check your alternator output first. A factory alternator may not support high-wattage aftermarket additions. Test your battery health under a simulated load. Finally, implement the standard "Big 3" wiring upgrade. Factory wires are thin and only support standard vehicle electronics. Adding high-draw equipment overwhelms them. The Big 3 upgrade involves replacing three critical factory wires with heavy-duty cable:
The alternator positive output to the battery positive terminal.
The battery negative terminal to the vehicle chassis.
The engine block ground to the vehicle chassis.
These electrical prerequisites ensure your new equipment receives unhindered current flow, keeping voltage high and operating temperatures low.
Installation compliance directly dictates thermal survival. You must mandate proper wire specifications based on actual amperage draw and total cable length. Oxygen-Free Copper (OFC) is vastly superior to Copper-Clad Aluminum (CCA). CCA wire creates higher electrical resistance, which leads directly to severe voltage drops. Always use 100% OFC cabling for main power and ground runs.
Enforce strict physical mounting best practices. You must maintain a minimum 2-inch clearance on all sides of the heat sink. Avoid direct physical contact with sound dampening materials. Never mount an amplifier directly on thick carpeting. Carpeting acts as heavy thermal insulation. It traps heat against the bottom plate and completely defeats the internal cooling design.
Assess your current failure point carefully before buying new gear. If the current unit overheats due to user error, you must fix the infrastructure first. Repair bad grounds using a multimeter to ensure resistance is below 0.5 ohms. Correct wrong wiring configurations. Ensure your total impedance load matches the manual specifications exactly.
Next, calculate the replacement load accurately. Sum the total RMS requirement of your entire speaker array. Target the final impedance carefully. If your subwoofers wire down to a 1-ohm final load, you absolutely need a 1-ohm stable unit. Do not compromise on this rating.
Select the architecture based on your physical environment and power demands. For high-output, space-constrained, or thermally sensitive installations, restrict your shortlist strictly to digital models. Deploying a Digital POWER Amplfier provides the best performance-to-heat ratio currently available on the market.
Your actionable next step is an immediate physical system audit. Check your current main wiring gauge. Verify your exact speaker impedance with a digital multimeter. Then, carefully compare your total requirements against certified Class D specification sheets to find the perfect hardware match.
Amplifier overheating is a clear symptom of systemic inefficiency. It stems from the installation environment, user operation errors like clipping, or the analog hardware architecture itself. Ignoring thermal shutdowns guarantees permanent equipment damage eventually. You must address electrical bottlenecks, poor grounding, and impedance mismatches head-on.
Transitioning to a highly efficient digital model fundamentally mitigates baseline thermal risks. However, this transition is only successful provided the supporting electrical infrastructure is completely sound. Clean power, proper wire gauge, and adequate airflow remain non-negotiable elements of system design. Audit your current system using the specific criteria outlined above. We strongly recommend consulting a detailed product specification guide or using a dedicated selection tool. This approach ensures you match a modern, high-efficiency amplifier precisely to your specific acoustic load requirements.
A: Thermal protection circuitry is a deliberate safeguard that severs output to prevent the internal components from melting. It shuts the system down to avoid permanent board-level damage. It usually resets once the internal temperature drops back to a safe threshold.
A: Yes. High resistance at the ground terminal creates an electrical bottleneck, causing voltage to drop significantly at the amplifier. The unit then pulls much higher current to compensate for the lost voltage, which drastically increases internal heat generation.
A: Yes. While highly efficient, no amplifier is 100% efficient. Operating temperatures of 100°F to 140°F (38°C - 60°C) under heavy load are standard. However, the chassis should never become too hot to touch comfortably with your bare hand.
A: External fans treat the symptom, not the root cause. If the overheating is caused by a severe impedance mismatch, clipped signals, or poor voltage, a fan only delays the inevitable failure. You must fix the underlying electrical or tuning issue first.
