Building a custom audio system gives you total control over the sound quality in your room or vehicle. One of the most rewarding projects is converting a standard speaker cabinet into an active powerhouse. To do this, you need the right components, a solid plan, and a little bit of technical know-how.
A passive subwoofer requires an external receiver to produce sound. By installing a plate amplifier directly into the enclosure, you eliminate the need for bulky external equipment. This all-in-one solution keeps your wiring clean, saves floor space, and maximizes the efficiency of your bass delivery. The amplifier sits flush against the wood, creating a seamless and professional look.
The installation process might seem intimidating if you have never cut into wood or connected speaker wires. However, anyone with basic hand tools can complete this upgrade over a single weekend. We will walk you through every phase of the project, from selecting the perfect subwoofer amplifier board to making the final connections. By the end of this guide, you will have a fully functioning active subwoofer ready to rattle your windows.
You cannot start the installation without the right gear. Prepping your workspace saves time and prevents frustration later on. Gathering everything beforehand ensures you will not have to stop halfway through to visit the hardware store.
Here is a breakdown of the tools and materials you need to successfully install an amplifier plate.
Tool or Material | Purpose during Installation |
|---|---|
Measuring Tape & Ruler | To find the exact dimensions for the amplifier cutout. |
Painter's Tape | Placed over the wood before cutting to prevent splinters and chipping. |
Power Drill & Drill Bits | To create a starting hole for the saw and pilot holes for the mounting screws. |
Jigsaw | The primary cutting tool used to remove the rectangular section of the box. |
Sandpaper | To smooth down the rough wooden edges after you finish cutting. |
Weather Stripping (Foam Tape) | To create an airtight seal between the metal plate and the wooden enclosure. |
Wood Screws | To secure the amplifier firmly to the cabinet. |
Wire Strippers | To expose the copper ends of the internal speaker wires for a solid connection. |
Before you make any cuts, you must select the correct hardware. An underpowered amp will leave your bass sounding weak and distorted. Conversely, pushing too much power through a small speaker can cause permanent damage to the voice coil.
You need to match the RMS power rating of the amplifier to your subwoofer. RMS refers to the continuous power the speaker can handle safely. It is also critical to verify the impedance matches up perfectly. Impedance is electrical resistance, usually measured in ohms. If you have an 8-ohm speaker, you need an amplifier rated to push power safely at 8 ohms.
Many modern options include built-in digital signal processing (DSP). This technology gives you incredible control over the audio output. You can adjust the exact frequencies your speaker plays, tune out unwanted room echoes, and protect the speaker from dangerous power spikes.

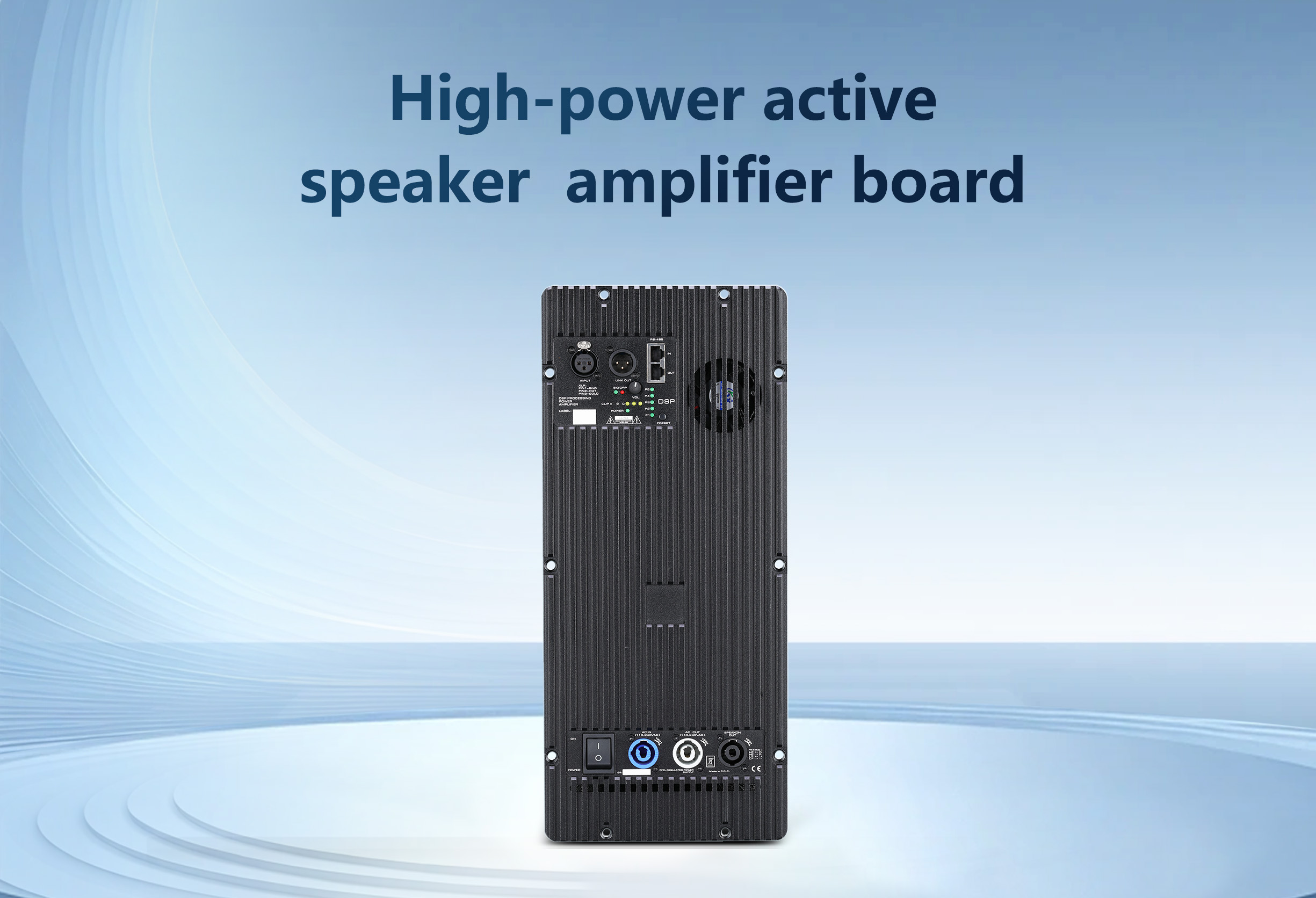

If you want high-quality, professional-grade components for your project, check out this comprehensive collection of active speaker power amplifier boards. They offer integrated designs with thermal protection and short-circuit safeguards, making them highly reliable for custom audio builds.
Working with power tools and electrical components requires basic safety measures. Always wear safety glasses when using the jigsaw to protect your eyes from flying sawdust. Keep your hands clear of the blade path.
Additionally, make sure the amplifier is completely unplugged from the wall outlet before you begin handling the wires. Touching exposed wires on a plugged-in amplifier can result in a dangerous electrical shock.
Once you have your gear ready and your safety glasses on, it is time to start the physical installation. Take your time during these steps. Precision is the key to getting the best possible sound out of your cabinet.
The back of your amplifier plate will sit inside the subwoofer box. You must create a hole that fits the internal components while leaving enough solid wood for the mounting screws to grab onto. Measure the internal dimensions of the amp casing carefully.
Use painter's tape to outline the exact area on the back of your wooden enclosure. Drawing your lines directly on the tape makes them easy to see. The tape also holds the wood fibers together, preventing the cabinet from splintering when you use your saw.
Grab your power drill and attach a drill bit that is slightly wider than your jigsaw blade. Drill a pilot hole inside the taped outline, close to one of the corners. This hole provides a starting point for your saw.
Insert the jigsaw blade into the hole and carefully follow your marked lines. Keep your hand steady and let the tool do the work without pushing too hard. Once the rectangular piece of wood falls away, use your sandpaper to smooth the rough edges. Test the fit by sliding the amp into the hole. It should slide in snugly. If it gets stuck, sand down the tight spots until it fits easily.
Subwoofers rely on internal air pressure to produce deep, accurate bass. Any air leaking out around the amplifier will ruin the sound quality and cause annoying rattling noises. You must keep the box completely airtight.
Apply a continuous strip of weather stripping foam tape around the inner lip of the metal plate. Some premium models come with a rubber gasket pre-installed. If yours does not, do not skip the foam tape. Make sure the ends of the tape meet tightly so air cannot escape through a gap.
Take the speaker wires extending from the back of the amplifier and connect them to your subwoofer terminals. Match the positive (red) wire to the positive terminal and the negative (black) wire to the negative terminal.
A loose electrical connection will cause the sound to cut out randomly. Make sure these wires are attached firmly. If you are using slide-on crimp connectors, give them a gentle tug to verify they are secure.
Push the plate amplifier fully into the cutout. Ensure the exterior flange sits flat against the wood. You need to pre-drill small pilot holes for the mounting screws. Driving screws directly into wood without pilot holes can cause the material to split and crack.
Drive the wood screws in using a star pattern. This means you tighten one screw, then tighten the screw directly opposite from it. This technique ensures the gasket compresses uniformly around the edges, locking the air inside the box.
Your hardware is officially installed, but the job is not quite finished. Now, you have to configure the settings to get the best audio performance. Turn the gain dial all the way down to zero before you plug the power cable into the wall.
Connect your audio source using an RCA cable and play a song with a heavy, consistent bass track. Slowly turn the gain up until the bass is loud but remains clear. If you hear distortion or crackling, back the dial down immediately. Adjust the crossover frequency knob so the subwoofer only plays the lowest notes. This helps the bass blend seamlessly with your smaller main speakers.
Here is a quick troubleshooting guide if you run into common issues during your initial test:
Problem | Possible Cause | Solution |
|---|---|---|
No Sound at All | Amplifier is not receiving power or signal. | Check the power cord, verify the wall outlet works, and ensure the RCA cables are firmly plugged in. |
Whistling Noise | Air is leaking from the box. | Tighten the mounting screws. If it persists, remove the amp and add more weather stripping tape. |
Muddy or Distorted Bass | Gain is too high or crossover is wrong. | Turn the gain down. Lower the crossover frequency so the sub stops trying to play high vocal notes. |
Weak Bass Output | Subwoofer is wired out of phase. | Flip the "Phase" switch on the amplifier plate from 0 to 180 degrees. |
No, a plate amplifier is designed specifically to be mounted directly into the same enclosure as the speaker. The external metal plate acts as a heatsink to dissipate heat while simultaneously sealing the hole in the cabinet.
You can install one in most wooden boxes, but you must ensure the cabinet has enough internal volume. The amp takes up physical space inside the box. You need to account for this displacement so the subwoofer still has enough internal air space to function correctly.

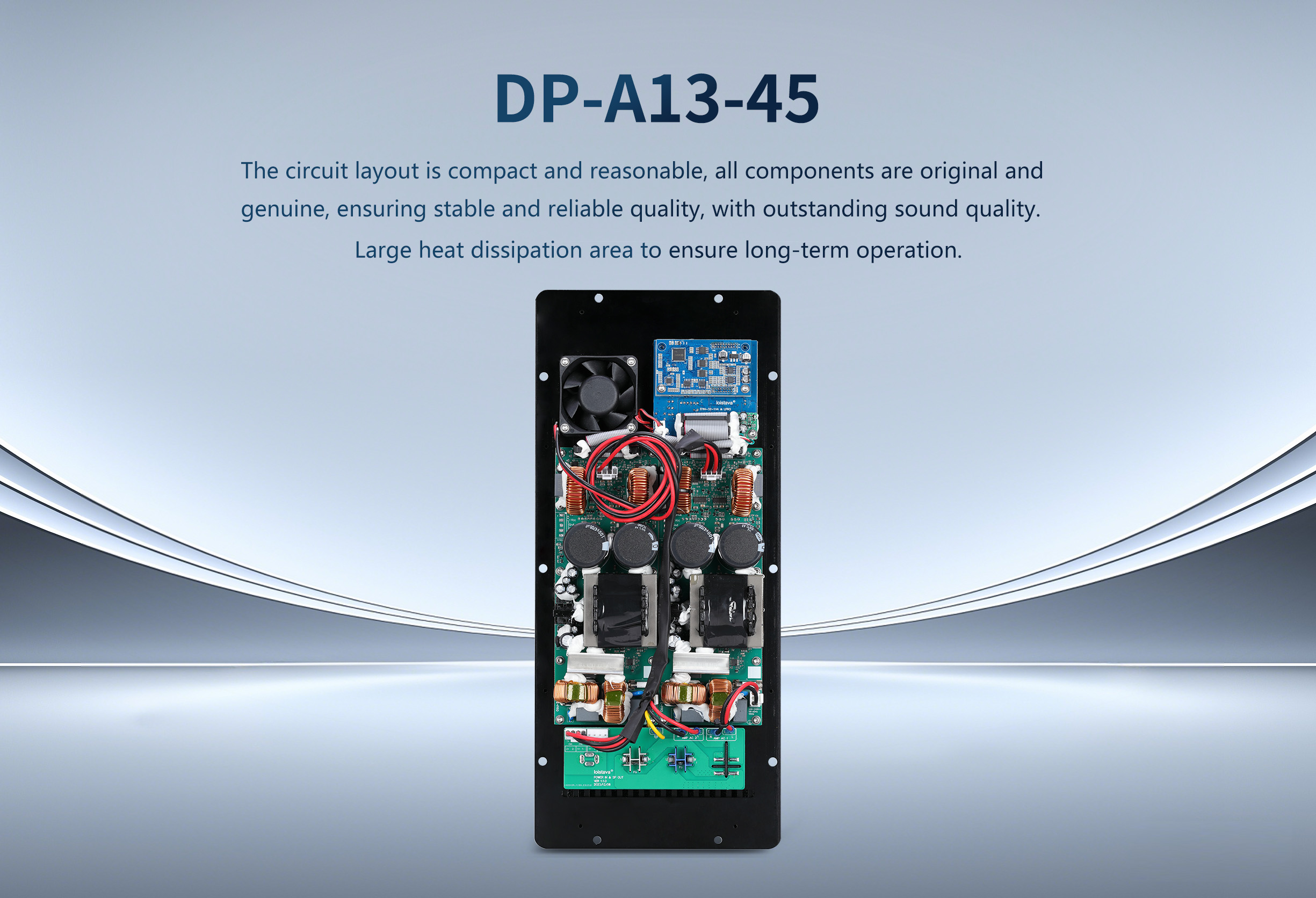

The external metal plate handles most of the cooling by pulling heat away from the internal circuit board. However, you should never push the back of the subwoofer box directly against a solid wall. Leave a few inches of clearance so room air can flow freely over the external heat fins.
Converting a passive cabinet into an active powerhouse is a straightforward weekend project that yields massive results. By taking the time to measure accurately, seal the wooden box properly, and tune the digital settings, you can achieve professional-level audio in your own home. You no longer have to rely on complicated external receivers to get the low-end rumble you crave. Gather your tools, select the right amplifier components, and start building the audio system you have always wanted.
