A crowded school hallway. A busy shopping mall. A transportation hub buzzing with commuters. What do these places have in common? They all depend on a reliable public address amplifier to deliver clear, audible sound to large numbers of people—consistently and without fail.
Whether you're a facility manager planning a new PA system, an audio professional scoping out a commercial installation, or simply someone trying to understand how public address systems work, choosing the right amplifier is one of the most critical decisions you'll make. Get it right, and your sound system runs smoothly for years. Get it wrong, and you're dealing with distorted audio, coverage gaps, and costly replacements.
This guide breaks down everything you need to know about public address amplifiers—what they are, how they work, what to look for, and which applications they're best suited for.
A public address amplifier (also called a public amplifier or PA amplifier) is an electronic device that boosts audio signals to a level strong enough to drive loudspeakers across large areas. It sits at the core of any PA system, receiving input from microphones, media players, or mixing consoles, and then outputting amplified audio to connected speakers.
Unlike consumer-grade amplifiers built for home use, a public address power amplifier is engineered for continuous, high-demand operation. These units are designed to run 24/7 in environments like schools, offices, hospitals, stadiums, and transport hubs—places where reliable sound delivery isn't optional.
The key distinction between a PA amplifier and other amplifier types lies in its intended role: clear speech reproduction, wide-area coverage, and system integration. Power output, channel configuration, and protection features all matter significantly more in commercial PA deployments than in typical music playback scenarios.
At its core, a public amplifier takes a low-level audio signal and increases its voltage and current to a level capable of driving passive speakers. Here's the basic signal chain:
Input source (microphone, mixer, media player) sends a line-level or mic-level signal
The amplifier's preamplifier stage conditions and boosts the signal
The power amplifier stage drives the output to match the impedance and wattage requirements of connected speakers
Audio reaches the speakers, producing sound audible across the coverage area
Modern PA amplifiers also incorporate protection circuits—handling short circuits, DC offset, thermal overload, and EMI interference—to ensure uninterrupted operation even under demanding conditions.
Choosing the right public address amplifier means matching its specifications to your specific installation requirements. Here are the most important features to evaluate:
Output power, measured in watts, determines how loud your system can get and how many speakers it can drive. Equally important is impedance matching—most PA speakers operate at 4Ω or 8Ω, and your amplifier must be rated to handle the load.
For example, the Auway Audio PA-300.8 delivers 8 x 300W at 8Ω (or 8 x 400W at 4Ω), making it a strong candidate for multi-zone commercial installations requiring consistent power across eight independent channels.
Single-channel amplifiers suit simple, single-zone setups. Multi-zone environments—like a hotel with separate audio zones for lobbies, restaurants, and corridors—require multi-channel public amplifiers that can run independent outputs simultaneously without crosstalk or power degradation.
Two specifications stand out when evaluating audio fidelity:
THD+N (Total Harmonic Distortion + Noise): Lower is better. A figure like 0.005% indicates broadcast-grade clarity, suitable for both speech intelligibility and music reproduction.
Signal-to-Noise Ratio (SNR): A higher SNR (e.g., 89dB) means less background noise relative to the audio signal—essential for clean announcements in quiet environments like libraries or offices.
A professional PA amplifier should support flexible input and output connectivity. Phoenix (screw-terminal) connectors are preferred for fixed installations due to their vibration resistance and reliability over time. RCA inputs offer compatibility with consumer-grade source equipment.
Continuous operation demands robust protection. Look for amplifiers with short circuit protection, DC offset protection, soft start, EMI filtering, and sub-audio protection. These safeguards prevent equipment damage and maintain uptime in critical environments.
Heat is the enemy of longevity in any amplifier. Temperature-controlled fan cooling adjusts airflow based on operating temperature, reducing noise during low-load periods while ensuring thermal stability under sustained heavy use.
A public address power amplifier serves a wide range of commercial and institutional environments. The table below maps common use cases to key amplifier requirements:
Application | Key Requirement | Typical Setup |
|---|---|---|
Schools & Universities | Clear speech, multi-zone control | 4–8 channel PA amplifier |
Shopping Malls | Background music + announcements | Multi-zone, high-output amplifier |
Transportation Hubs | Reliability, 24/7 operation | Robust protection circuits |
Corporate Offices | Low noise, clean audio | High SNR, low THD |
Hotels & Hospitality | Zoned audio distribution | Multi-channel public amplifier |
Worship Facilities | Dynamic range, speech clarity | High damping factor, low distortion |
Factories | Durability, loudness | High output power, rugged design |
Broadcast Studios | Reference-grade audio | Exceptional THD and SNR performance |

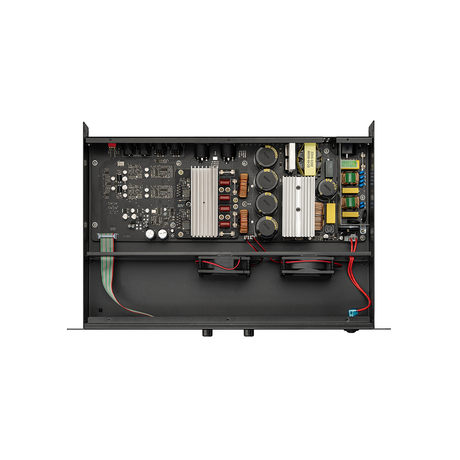

The Auway Audio PA-300.8 is a purpose-built public address power amplifier designed for professional multi-zone audio distribution. Housed in a compact 2U chassis, it manages eight fully independent channels—each delivering 300W at 8Ω—without the need for multiple separate amplifiers.
Its specifications reflect broadcast-grade engineering:
Specification | PA-300.8 |
|---|---|
Output Power (8Ω) | 8 x 300W |
Output Power (4Ω) | 8 x 400W |
Channels | 8 |
Frequency Response | 20Hz–20kHz, ±0.5dB |
S/N Ratio | 89dB |
THD+N | 0.005% Typically |
Damping Factor | >450 |
Gain | 33.0dB |
Input Connectors | RCA, Phoenix socket |
Output Connectors | Phoenix socket |
Protection | Short circuit, DC, soft start, EMI, sub-audio |
Cooling | Temperature-controlled fan |
Rack Space | 2U |
Net Weight | 6.1kg |
Phoenix connector outputs make it particularly well-suited to fixed installations, where secure, long-term connections are a priority. The temperature-controlled fan keeps operating noise low during quieter periods, while full protection circuitry ensures continuous, worry-free operation.
For facility managers looking to support PA systems across schools, corporate campuses, shopping centers, or transportation facilities, the PA-300.8 consolidates eight zones into a single, manageable unit—reducing rack space, wiring complexity, and ongoing maintenance overhead.
Explore the full Auway Audio public address amplifier range to find the right solution for your installation.
Before committing to a purchase, run through this checklist to confirm the amplifier matches your system design:
Total speaker load: Calculate the combined impedance across all speakers in each zone
Coverage area size: Larger spaces demand higher output power or more distribution zones
Installation environment: Continuous-duty environments require stronger protection circuits and reliable cooling
Input sources: Confirm the amplifier supports your microphone, mixer, or media player connections
Rack space availability: 2U amplifiers like the PA-300.8 pack significant multi-zone capability into minimal rack space
Long-term reliability needs: Prioritize units with full protection suites and established manufacturer support
The right public address amplifier keeps sound clear, consistent, and dependable—across every zone, every announcement, every day. For commercial and institutional installations, the PA-300.8 from Auway Audio delivers eight channels of broadcast-grade performance in a single, compact unit, backed by professional connectivity and a comprehensive protection system.
For detailed specifications, product comparisons, and direct purchasing inquiries, visit Auway Audio's public address amplifier page or contact the team at Cony@cn-auway.com.
