A great sound system is the backbone of any memorable live event, concert, or club night. At the core of that system is the power amplifier, a device responsible for taking a low-power audio signal and boosting it to a level that can drive speakers and fill a space with sound. But not all amplifiers are created equal. For large-scale applications, you need a high power audio amplifier that delivers both volume and clarity without compromise.
This guide will explore the essential aspects of high-power audio amplifiers. We will cover how they work, the different classes available, and what key specifications to look for when choosing one. Whether you are a professional sound engineer, a venue owner, or an audio enthusiast looking to upgrade your setup, this article will provide the knowledge you need to make an informed decision and achieve outstanding sound quality.
A high power audio amplifier is an electronic device designed to significantly increase the magnitude of a low-level audio signal to drive large or multiple speakers at high volumes. These amplifiers are essential in professional audio settings like concert venues, theaters, and outdoor festivals where sound needs to travel over long distances and reach large audiences without distortion.
Unlike consumer-grade amplifiers found in home stereos, high-power models are built to handle demanding loads and operate reliably for extended periods. They are characterized by their high wattage output, robust construction, and advanced features for protection and performance optimization. These features ensure they can deliver clean, powerful, and consistent sound even under the most strenuous conditions.
Amplifiers are categorized into different classes based on their circuit design and method of operation. Each class offers a unique balance of efficiency, linearity, and power output. Understanding these differences is crucial for selecting the right amplifier for your needs.
Amplifier Class | Key Characteristics | Best For |
|---|---|---|
Class A | High linearity and sound quality, but very low efficiency (around 20-25%). Generates a lot of heat. | High-fidelity home audio systems and studio recording where sound quality is paramount and power efficiency is less of a concern. |
Class B | More efficient than Class A (around 50-70%), but prone to "crossover distortion" where the signal switches between transistors. | Rarely used in modern high-power professional audio due to distortion issues. |
Class AB | A hybrid of Class A and B, offering a good compromise between sound quality and efficiency. It eliminates most crossover distortion. | Versatile applications, including professional live sound, touring systems, and high-quality consumer audio. |
Class D | Highly efficient (often >90%) due to its switching design. It is lightweight, compact, and generates minimal heat. | Live sound reinforcement, portable PA systems, and subwoofers where high power output and efficiency are critical. Modern designs have greatly improved sound quality. |
Class TD | A proprietary design that combines the efficiency of Class D with the sound quality of Class AB. It tracks the audio signal to provide the optimal supply voltage. | High-end professional touring and large-scale installations that demand both exceptional audio fidelity and high efficiency. |
When evaluating a high power audio amplifier, several key technical specifications determine its performance and suitability for your application. Here are the most important ones to review:
This is arguably the most cited specification. It indicates how much power the amplifier can deliver to a speaker at a given impedance (measured in ohms). Ensure the amplifier's power rating matches the power handling capabilities of your speakers to prevent damage and achieve optimal performance. An underpowered amplifier can lead to clipping and distortion, while an overpowered one can damage the speakers.
Frequency response measures the range of frequencies an amplifier can reproduce accurately, typically expressed in Hertz (Hz). A good amplifier should have a wide and flat frequency response, such as 20Hz to 20,000Hz, ensuring it can reproduce all the audible frequencies—from deep bass to crisp highs—without coloration.
THD measures the amount of unwanted distortion or "color" an amplifier adds to the original audio signal. It is expressed as a percentage. A lower THD percentage means a cleaner, more accurate sound. For professional applications, look for a THD of less than 0.1%.
SNR compares the level of the desired audio signal to the level of background noise produced by the amplifier's circuitry. It is measured in decibels (dB). A higher SNR value indicates a cleaner, quieter amplifier, as there is less audible hiss or hum during quiet passages. An SNR of 100 dB or higher is considered excellent for professional audio.
The damping factor is a measure of an amplifier's ability to control the movement of a speaker cone, particularly at low frequencies. A higher damping factor results in tighter, more precise bass reproduction. This is especially important for subwoofers and large woofers.
A switching power amplifier, often synonymous with a Class D amplifier, uses high-frequency switching technology to achieve high efficiency. Unlike traditional linear amplifiers that dissipate a significant amount of power as heat, switching amplifiers minimize energy waste by rapidly turning their output transistors on and off.

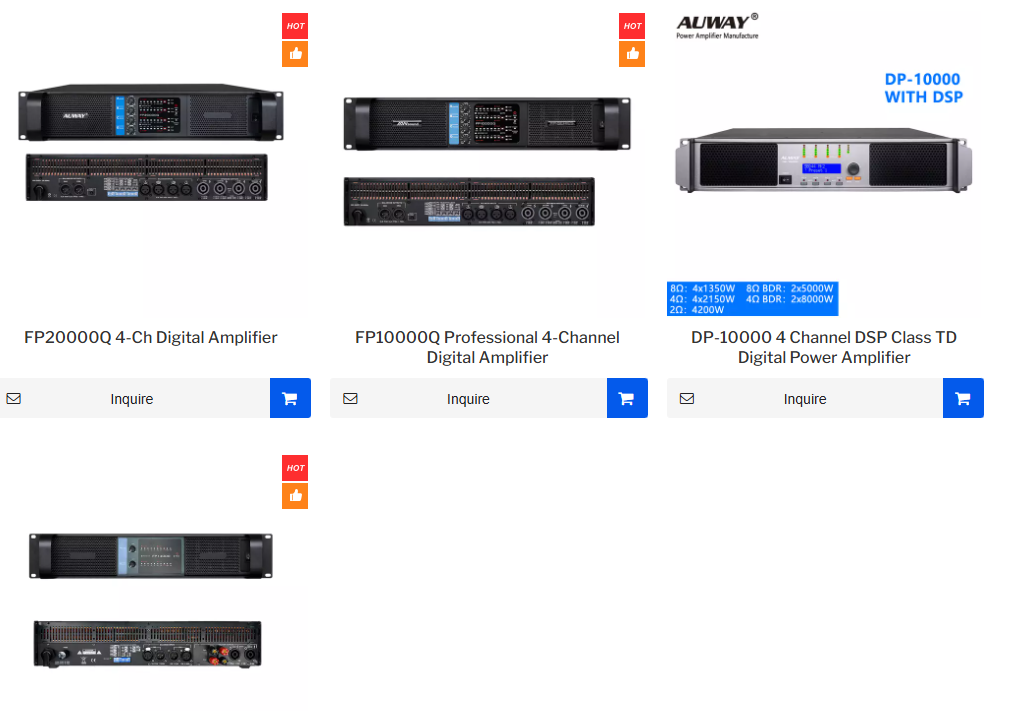

Based on information from Auway Audio's Switching Power Amplifier page, these models are designed for audio professionals who require both immense power and energy savings. They are built with rugged materials and advanced cooling systems to withstand heavy use in harsh environments. Key features often include:
High Efficiency: Minimizes power consumption and heat generation.
Low Distortion: Ensures crisp and accurate sound reproduction.
High Signal-to-Noise Ratio (SNR): Delivers a clean signal with minimal background noise.
Versatile Integration: Compatible with a wide range of speakers and audio equipment.
These characteristics make switching amplifiers an excellent choice for powering everything from a small club to a large concert hall.
Selecting the right high power audio amplifier is a critical step in building a professional-grade sound system. By understanding the different amplifier classes and evaluating key technical specifications like power output, THD, and SNR, you can find a model that meets the demands of your specific application.
Whether you prioritize the pristine audio of a Class AB design or the lightweight efficiency of a modern Class D switching amplifier, the goal remains the same: to deliver powerful, clear, and reliable sound. Invest time in research, match the amplifier to your speakers, and you'll be well on your way to creating an immersive audio experience for your audience.
