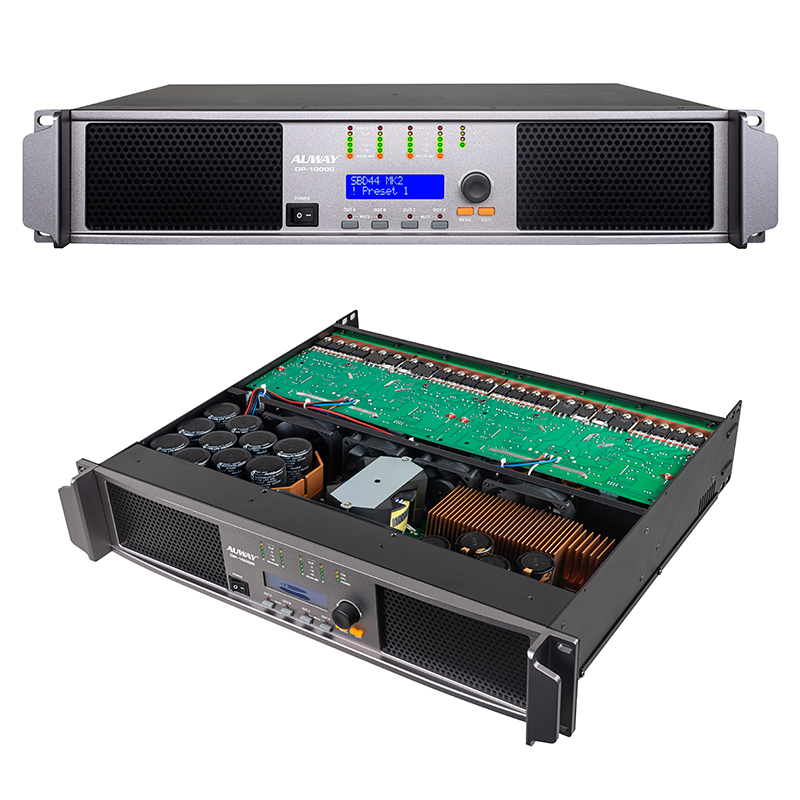

Finding the right balance between raw power, audio fidelity, and portability is often the hardest challenge for audio engineers and venue managers. You need equipment that can drive massive sound systems without taking up an entire van or requiring a team of weightlifters to install. Enter the DP-10000 Digital Power Amplifier.
This 4-channel powerhouse is generating significant buzz in the professional audio community. It combines the trusted architecture of Class TD amplification with modern Digital Signal Processing (DSP) capabilities. But beyond the fancy acronyms and sleek new front panel design, the most critical question remains: does it have the muscle to handle your specific audio needs?
If you are looking to upgrade your touring rig or install a permanent solution in a large venue, understanding the specific power capabilities of this unit is essential. This article breaks down the exact specifications, the advantages of its built-in DSP, and why the DP-10000 might be the versatile solution your sound system has been waiting for.
The primary selling point of any amplifier is its output capabilities. The DP-10000 is engineered to leverage the technical specifications of the renowned FP10000Q, but with enhanced versatility. It operates as a 4-channel amplifier, allowing for complex setups involving multiple speakers or monitors from a single 2U rack-mountable unit.
Below is the detailed breakdown of the power output across different impedance loads and modes. These figures represent the amplifier's ability to handle everything from standard PA speakers to power-hungry subwoofers.
Output Configuration | Impedance | Power Rating |
|---|---|---|
Stereo Output | 8Ω | 4 x 1350W |
Stereo Output | 4Ω | 4 x 2150W |
Stereo Output | 2Ω | 4200W |
Bridged Mono Output | 8Ω | 2 x 5000W |
Bridged Mono Output | 4Ω | 2 x 8000W |
The flexibility of the DP-10000 lies in these numbers. With 4 x 1350W at 8Ω, a single unit can comfortably power a complete monitor rig for a live band or a four-corner speaker distribution in a club.
However, the real potential unlocks when you look at the Bridged Mono capabilities. By bridging channels, the amplifier combines the voltage of two channels into one, delivering a massive 2 x 8000W at 4Ω. This makes the DP-10000 an exceptional choice for driving large dual-18" subwoofers, providing the headroom necessary for deep, distortion-free bass.

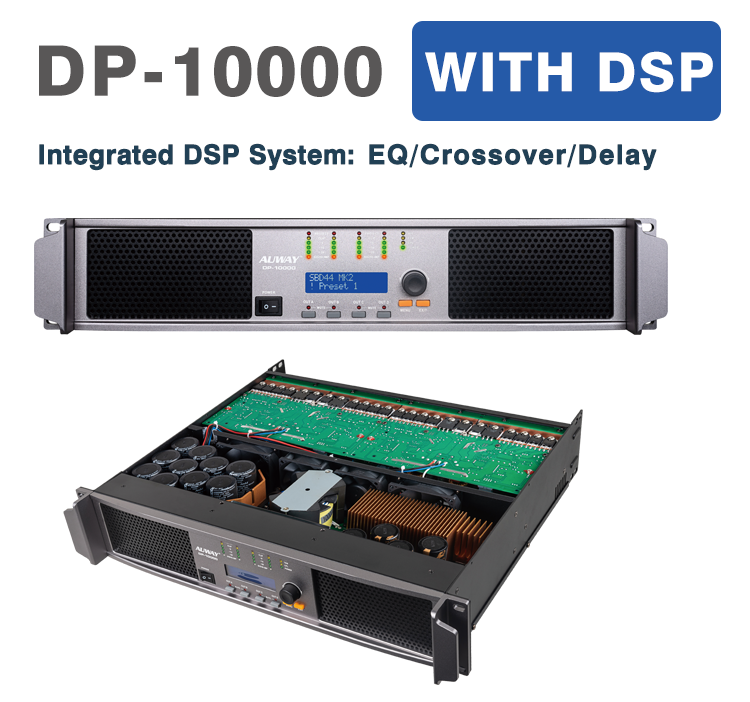

Raw power is useless without control. This is where the "Digital" in the DP-10000 Digital Power Amplifier name becomes a game-changer. Unlike traditional analog amplifiers that require racks of external gear (like equalizers, crossovers, and limiters), the DP-10000 features a built-in Digital Signal Processor (DSP).
This integration simplifies your signal chain significantly. You can plug your mixer directly into the amplifier and handle all the fine-tuning right from the unit's front panel.
Precise EQ Adjustment: Tailor the frequency response to match your specific speakers and the acoustics of the room.
Crossover Points: Accurately split frequencies between your subwoofers and top cabinets, ensuring each speaker only reproduces the sounds it was designed for.
Delay Settings: Essential for large venues or outdoor festivals, allowing you to time-align delay towers so the sound reaches the audience coherently.
Gain Control: Manage input levels to prevent clipping and ensure a clean signal path.
The newly redesigned front panel features a clear, high-visibility display. This allows engineers to monitor signal levels, system status, and DSP settings in real-time, even in the low-light environments typical of nightclubs or concert wings.
Power amplifiers in touring environments take a beating. They are bounced in trucks, pushed to their limits during shows, and often operate in less-than-ideal electrical conditions. The DP-10000 is built on a Class TD topology, which offers the sonic purity of Class B designs with the efficiency of Class D.
Form Factor: 2U Rack-mount
Dimensions: 483mm x 395mm x 88mm
Net Weight: 16 KG
At just 16kg, it offers a remarkable power-to-weight ratio. This portability makes it a favorite for rental companies and touring acts where logistics and transport costs are a concern.
Reliability is paramount during a live performance. The DP-10000 includes a suite of protection circuits designed to keep the show running even when problems arise.
Current Peak Limiter (CPL): Prevents damage to the amplifier and speakers during dynamic peaks.
Thermal Protection: Monitors internal temperature to prevent overheating during extended use.
VHF (Very High Frequency) Protection: Guards against non-musical high-frequency signals that can blow tweeters.
Short Circuit protection: Safely shuts down the channel if a speaker cable is damaged.
Because of its high channel count and DSP flexibility, the DP-10000 is not limited to a single type of venue. It adapts easily to various professional audio scenarios.
For bands and rental houses, the ability to switch between powering monitors (4 channels) or main PA systems (Bridged mode) offers immense value. The reduced weight also simplifies load-in and load-out procedures.
Permanent installations benefit from the DSP features. Once the system is tuned to the room's acoustics using the built-in EQ and crossover, the settings can be locked in. The sleek front panel also blends well with modern venue aesthetics.
Churches often require clear intelligibility for spoken word and dynamic power for worship bands. The DP-10000 provides the clean headroom needed for speech while retaining the power reserves for musical performances.
The DP-10000 Digital Power Amplifier represents a smart evolution in professional audio gear. By integrating massive power output—up to 8000W in bridged mode—with sophisticated DSP control, it eliminates the need for bulky external processing gear while delivering pristine sound.
Whether you are running a main stage at a festival, outfitting a new superclub, or upgrading a church sound system, the DP-10000 offers the reliability and versatility required for modern audio production. If you are ready to experience professional audio performance redefined, exploring the capabilities of the DP-10000 is your next logical step.
