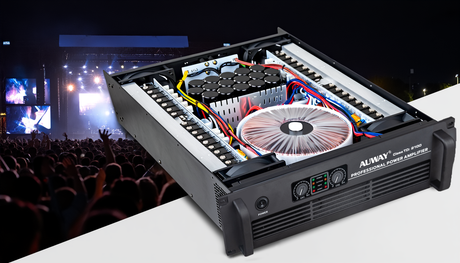

Building a custom speaker cabinet or upgrading an existing audio setup requires careful planning. Achieving the perfect bass response relies heavily on the power source driving your low-frequency drivers. While traditional external rack amplifiers have their place, many audio professionals and hobbyists prefer integrated solutions for their builds.
A subwoofer plate amplifier provides a neat, self-contained method for powering passive speaker cabinets. By mounting the amplification module directly onto the back of the enclosure, you eliminate the need for bulky external gear and long, messy cable runs. This creates a streamlined active speaker system capable of delivering massive power and precise audio control.
This comprehensive guide covers everything you need to know about these integrated power modules. We will explain how a subwoofer plate amp works, highlight the key features you should look for, and show you how to match the right board to your specific audio drivers. We will also highlight some professional-grade hardware options to help you complete your next audio project.
At its core, a plate amplifier is an electronic circuit board that takes an incoming line-level audio signal and boosts it to a level capable of moving a speaker cone. The term "plate" refers to the metal chassis that houses the components. This metal backing often serves a dual purpose, acting as both a mounting surface and a heat sink to dissipate the thermal energy generated by the internal circuitry.
A standard subwoofer plate amp usually includes inputs for your audio cables, volume controls, crossover dials, and power connectors on the outside face. On the inside face, bare wires connect directly to the internal speaker terminals. This direct connection minimizes signal loss and ensures efficient power transfer from the amplifier to the driver.
Moving amplification from an external rack directly into the speaker enclosure offers several practical advantages for sound engineers and home audio enthusiasts alike.
Space efficiency is a primary driver for choosing an integrated board. Active speakers take up less room and require less setup time during live events. You only need to provide power and an audio signal to each cabinet, drastically simplifying your cable management.
Cost savings also play a significant role. Purchasing a dedicated board for a specific speaker is often more affordable than buying a multi-channel external amplifier, especially if you only need to power a single subwoofer. Furthermore, manufacturers often tune these modules specifically for the acoustic properties of low-frequency drivers, resulting in tighter, more controlled bass reproduction.
When shopping for a module, you will frequently see references to different amplifier classes. The most common types found in modern speaker builds are Class AB and Class D. The table below highlights the differences between these two technologies.
Feature | Class AB Amplifiers | Class D Amplifiers |
|---|---|---|
Power Efficiency | Typically 50% to 70% | Highly efficient, often exceeding 90% |
Heat Generation | High (requires large heat sinks) | Low (can operate in tight spaces) |
Weight | Heavy due to large power transformers | Very lightweight |
Best Application | Vintage audio repairs, audiophile setups | Modern active speakers, high-power subwoofers |
Due to their low heat output and lightweight nature, Class D modules have become the industry standard for modern plate amplifiers.
Not all amplifier modules deliver the same level of performance. Evaluating the internal components and built-in features will help you select a board capable of surviving demanding audio environments.
Advanced modules now include built-in DSP chips. Digital Signal Processing allows you to adjust the audio signal before it reaches the speaker cone. You can set precise crossover points to ensure your subwoofer only plays the low frequencies it was designed to handle. DSP also provides equalization options to flatten out problematic room acoustics and limiters to protect your drivers from accidental volume spikes.
Even highly efficient Class D amplifiers generate some heat during prolonged use at high volumes. Reliable boards feature intelligent cooling systems, such as temperature-responsive DC fans and aluminum heat sinks. Built-in protection circuits are also essential. Look for models that include safeguards against short circuits, thermal overload, and signal clipping.
The physical connections on your amplifier board dictate how easily it integrates into your wider sound system. Professional-grade modules should feature XLR inputs for noise-free, balanced signal transmission. If the board is designed to power additional passive cabinets, it should include robust output connectors like NL4 SpeakON jacks to ensure secure cable locks.
Sourcing hardware from a reputable manufacturer ensures your audio project will perform reliably for years to come. Auway Audio produces an extensive range of professional audio equipment tailored for commercial venues, studios, and high-end consumer setups.
Their Active Speaker Power Amplifier Board lineup offers a variety of specialized integration solutions. These modules cater to speaker manufacturers and DIY builders who require compact, high-performance amplification. The boards feature streamlined designs that fit easily into custom enclosures, utilizing advanced circuitry to deliver consistent power with exceptionally low distortion.
For those seeking a versatile and powerful board, the A24 Active Speaker Amplifier Board presents an excellent option. This 2-channel Class D module features a German-engineered DSP processor, allowing users to apply real-time audio analysis and automatic adjustments.
The A24 provides intelligent power management and memory presets for different application scenarios. Its compact footprint maximizes design flexibility for studio monitors, portable PA systems, and background music installations.
The table below outlines the core specifications for the A24 module alongside its higher-powered sibling, the A26.
Specification | A24 Module | A26 Module |
|---|---|---|
8 Ohm Stereo Power | 2 x 400W | 2 x 600W |
4 Ohm Stereo Power | 2 x 750W | 2 x 1100W |
8 Ohm Bridge Power | 1500W | 2100W |
Frequency Response | 20Hz to 20KHz (-0.5dB) | 20Hz to 20KHz (-0.5dB) |
Circuit Type | Class D | Class D |
Cooling System | DC Fan | DC Fan |
Selecting the correct board requires basic knowledge of your speaker's power handling and electrical resistance. Failing to match these specifications can result in poor audio quality or catastrophic hardware failure.
First, check the nominal impedance of your speaker driver, which is measured in ohms. Most subwoofer drivers operate at 4 ohms or 8 ohms. You must ensure your chosen amplifier board is stable at that specific impedance level.
Next, look at the continuous RMS (Root Mean Square) power rating of your speaker. The RMS rating indicates how much continuous power the speaker can handle safely. As a general rule, your amplifier should be capable of delivering 1.5 to 2 times the RMS rating of your speaker. This extra power provides dynamic headroom, allowing the amplifier to reproduce sudden, loud bass transients without distorting or clipping the audio signal.
Yes, you can often use a multi-channel board to power a single driver by "bridging" the channels. Bridging combines the power output of two separate amplifier channels into one highly powerful mono channel. You must check the manufacturer's manual to ensure the board supports bridged operation at your speaker's impedance load.
No, a board with integrated DSP handles the crossover duties internally. You can use the DSP software interface to set precise high-pass and low-pass filters, directing only the appropriate low frequencies to your subwoofer driver.
While Class D amplifiers are highly efficient, they still require adequate airflow. The metal faceplate usually acts as the primary heat sink. Ensure the back of your speaker cabinet has enough clearance from walls or heavy drapery to allow ambient air to cool the exposed metal panel.
Upgrading a passive cabinet or building a custom active speaker from scratch is a rewarding process that yields incredible audio results. A subwoofer plate amplifier gives you the power and precision required to reproduce deep, impactful bass frequencies without cluttering your room with external racks.
Take the time to evaluate your speaker driver's impedance and RMS power ratings before purchasing a new module. Look for modern Class D boards featuring digital signal processing to give you ultimate control over your room acoustics. By utilizing professional-grade hardware from trusted suppliers like Auway Audio, you can ensure your custom sound system delivers flawless audio performance for every listening session.
