Live sound and KTV systems often share the same goal—clear, powerful audio—but their problems are rarely the same. A live venue may struggle with feedback, uneven coverage, and sudden performance peaks, while a KTV room may suffer from harsh vocals, weak bass, or users pushing the system too hard. A properly configured dsp amplifier helps bring these issues under control by combining power, routing, EQ, crossover, delay, limiting, and presets into one practical setup process. Here is how to build a safer, cleaner, and more reliable system from the signal path onward.
Every effective audio setup begins with a clear understanding of the signal chain. The audio signal typically flows from microphones or music sources into a mixer or karaoke processor, then into the dsp amplifier, and finally to main speakers, subwoofers, and fill speakers. Understanding this chain is critical, as improper routing can introduce several problems, including missing signals, phase cancellation, duplicated bass, or uncontrolled microphone levels.
In live sound systems, flexibility is key. Musicians, vocalists, and stage performers require multiple microphones, monitor mixes, and sometimes separate zones for different audience areas. Without proper mapping, the dsp amplifier cannot process each channel correctly, resulting in feedback, uneven coverage, or distorted sound. Conversely, KTV systems focus more on stability. Vocals should remain clear and consistent, music playback balanced, and room resonance minimized. Misrouting in these setups often produces harsh highs, muddy low frequencies, or an inconsistent listening experience across the room.
Analyzing the physical layout of the venue or room before routing helps anticipate challenges. For example, a subwoofer placed near a reflective wall may interact differently with mains than one positioned centrally. DSP amplifiers provide tools like crossover, delay, and EQ to compensate, but only when the signal flow is properly planned. Early attention to these details reduces time spent troubleshooting and ensures that all speakers receive the correct signals.
Clear channel labeling is essential to efficient setup and reliable operation. Channels should be named according to their function—Main L/R, Subwoofer, Vocal speakers, Ceiling or wall speakers, and Monitor or fill speakers. The labeling should match the physical speaker layout, making it easier to identify issues during tuning or live operation.
Choosing stereo, mono, or matrix-style routing depends on both system complexity and room characteristics. In small KTV rooms, minimal routing is sufficient, allowing a simple stereo configuration with subwoofer support. Larger live venues may benefit from matrix routing, enabling separate control of different zones, such as front-of-house, rear-fill, or balcony speakers.
Proper channel assignment simplifies the DSP configuration process. For example, when applying EQ or delay adjustments, knowing which speakers are which allows precise targeting, avoiding unnecessary adjustments on unaffected channels. It also ensures that limiter thresholds and crossover settings apply to the correct outputs, protecting both equipment and audience hearing.
Before adjusting any DSP parameters, ensure the amplifier's output matches the connected speakers. Key factors include speaker impedance, power rating, and wiring configuration. For instance, connecting multiple speakers in parallel can reduce total impedance, increasing the current drawn from the amplifier. Exceeding the amp’s rated capacity risks clipping, overheating, and permanent damage.
RMS power handling is another critical factor. The amplifier must provide sufficient headroom for peaks in music or live performances without introducing distortion. In practice, this often means selecting an amplifier rated at 20–30% higher power than the continuous RMS load of connected speakers. Overloading channels compromises audio quality, increases distortion, and may trigger thermal protection circuits, interrupting performance.
Gain staging ensures every component in the audio chain sends a strong, clean signal without clipping. Begin by lowering the mixer output, then adjust the DSP amplifier input gain conservatively. Gradually increase the system volume while monitoring clip indicators. This process prevents overdriving speakers and preserves dynamic range.
KTV setups, in particular, need headroom for sudden loud vocal performances. Live venues require even greater flexibility, accommodating the dynamic peaks of drums, amplified guitars, and vocalists. A clean gain structure is also essential for precise DSP adjustments; misaligned gain can make EQ or delay changes ineffective and produce unbalanced output across different zones.
Crossovers divide audio frequencies between subwoofers and main speakers to ensure efficient use of each speaker type. Subwoofers typically handle low frequencies, while mains reproduce mids and highs. Start with subwoofer low-pass filters around 80–100 Hz and main speaker high-pass filters in the same range. Adjustments may be needed based on speaker size, room acoustics, and audience distance.
Small wall or ceiling speakers often require higher high-pass settings to prevent distortion from low frequencies. Proper crossover settings prevent low-frequency overloads, protect speakers, and provide a balanced listening experience. Misconfigured crossovers can lead to muddiness, lack of clarity, or destructive phase interactions.
EQ should address room and speaker issues without trying to compensate for poor-quality hardware. Begin by cutting problematic frequencies rather than boosting others excessively. In live sound, focus on enhancing vocal clarity, reducing harshness, and eliminating low-mid muddiness. For KTV environments, prioritize vocal warmth, balanced music reproduction, and reduction of boxy room resonances.
Adjusting EQ carefully ensures the dsp amplifier produces intelligible, balanced audio without introducing new issues. Proper EQ preserves the natural character of both vocals and music, improving overall listening comfort.
Timing and phase alignment ensure audio from all speakers arrives coherently at listening areas. Misaligned subwoofers can cause bass cancellation, while distant speakers may introduce delays or echoes. Measure distances from speakers to the main listening area and apply delay settings accordingly. Wall and ceiling speakers in long KTV rooms should also be adjusted for timing differences to maintain clarity.
This approach avoids complex formulas while improving spatial coherence. Proper alignment reduces comb-filtering effects, maintains tonal balance, and ensures consistent coverage across the room.
Limiters protect speakers from excessive levels by controlling peaks. Configure threshold, attack, and release settings to prevent amplifier clipping and accidental overdrive by performers or casual users. KTV rooms especially benefit from limiters, as users often push microphones and music to high volumes. Using limiters ensures system longevity and prevents sudden, damaging spikes in audio output.
Live sound presets focus on vocal intelligibility, feedback control, even coverage, and subwoofer impact without masking vocals. Fast recall of different presets is valuable for venues hosting multiple event types, including speech, live bands, DJ nights, or outdoor events. Prioritizing these parameters allows the dsp amplifier to maintain consistent clarity and prevent listener fatigue during dynamic performances.
KTV setups emphasize smooth vocal sound, balanced music and vocals, echo/reverb compatibility, feedback resistance, and safe maximum volume. Presets should adapt to room size and usage, such as small private rooms, large party rooms, VIP areas, or bar-style stages. KTV presets are designed for forgiving performance, accommodating varying user behavior while preserving audio quality.
Setup Area | Live Sound Priority | KTV Priority |
Main goal | Coverage and clarity | Vocal comfort and control |
Biggest risk | Feedback and uneven coverage | Harsh vocals and speaker overload |
EQ focus | Room correction and vocal presence | Vocal smoothness and low-mid cleanup |
Limiter use | Protect system during peaks | Stop users from overdriving speakers |
Presets | Event-based scenes | Room-size and usage scenes |
Perform a real-world soundcheck to validate system performance. Test every speaker output, play reference music, check microphones, walk the room to assess coverage, and evaluate bass balance. Push vocals close to real performance levels and monitor limiter behavior. Save finalized presets once settings are consistent. This ensures reliable performance and prevents surprises during actual use.
Address common issues such as microphone feedback, muddy vocals, weak bass, distorted sound, uneven speaker volumes, or subwoofer integration challenges. Identify likely causes and apply appropriate DSP adjustments. Limiting advice to directly relevant problems provides actionable guidance without overwhelming users with generic troubleshooting techniques.
Careful planning and configuration of a dsp amplifier are essential for achieving consistent, clear, and controlled audio in both live sound venues and KTV environments. By addressing signal flow, power matching, gain structure, crossovers, EQ, timing, and limiter settings, operators can minimize feedback, balance frequencies, and maintain system reliability.

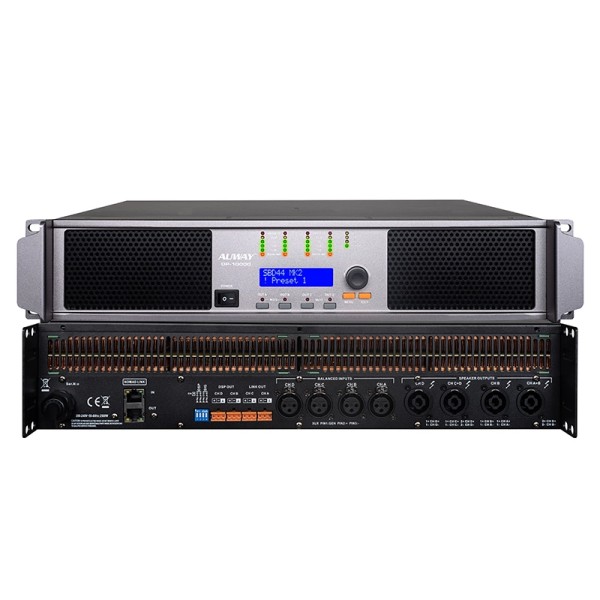

Enping Auway audio equipment Co., Ltd. provides DSP amplifiers designed to simplify these processes, offering intuitive control, flexible presets, and robust performance. Their products support efficient setup, protect speakers, and enhance the overall listening experience, allowing venues and KTV operators to focus on delivering quality sound without constant adjustment.
A: A DSP amplifier combines power amplification with digital processing, allowing precise control of EQ, crossover, delay, and limiting for consistent audio performance.
A: Start with low input levels, gradually raise gain while monitoring meters, and ensure headroom to avoid clipping or distortion for microphones and music sources.
A: Yes, using EQ adjustments, delay alignment, and limiter settings, a DSP amplifier can minimize microphone feedback and maintain clear, balanced sound.
A: Assign subwoofers low-pass filters around 80–100 Hz and main speakers high-pass filters in the same range, adjusting for speaker size and room acoustics.
A: Yes, live sound setups focus on coverage and vocal clarity, while KTV setups prioritize vocal comfort, balanced music, and safe volume limits.
A: Measure distances from speakers to listening areas, then set delays so audio arrives coherently, avoiding phase issues and improving overall sound quality.
