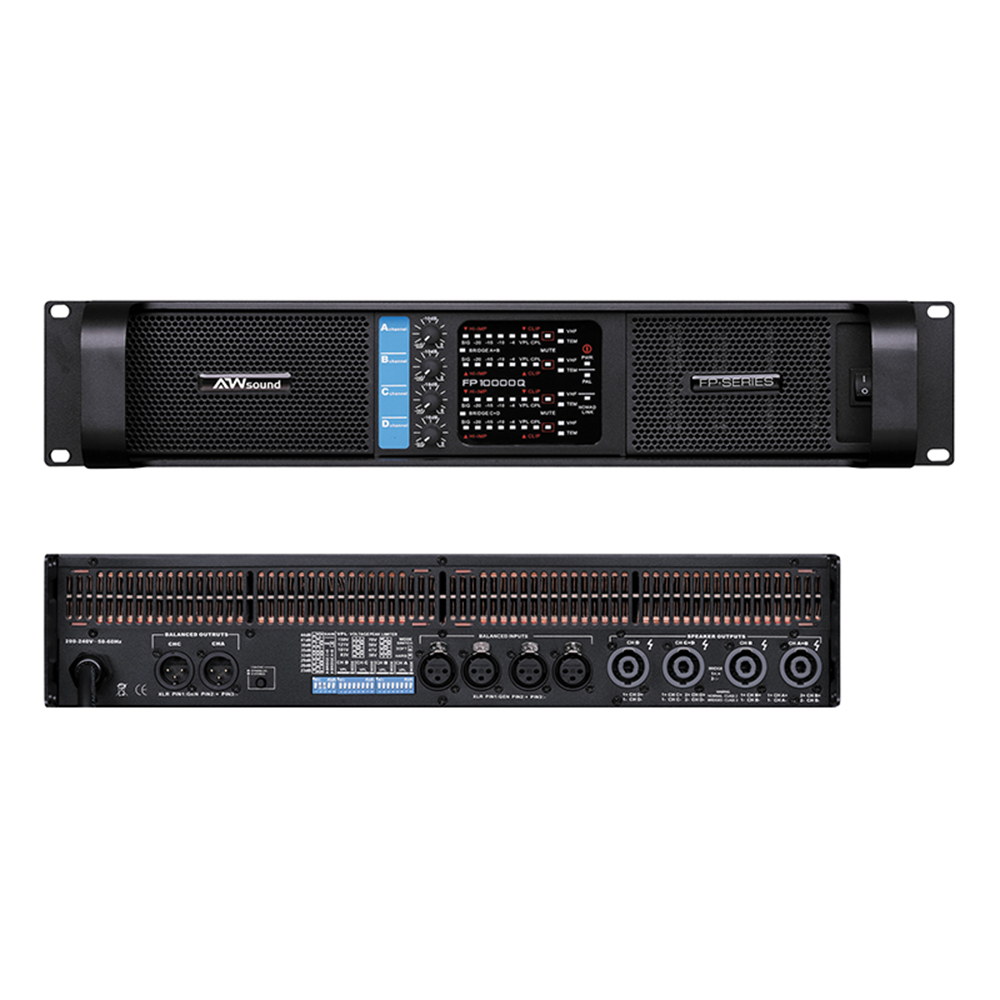

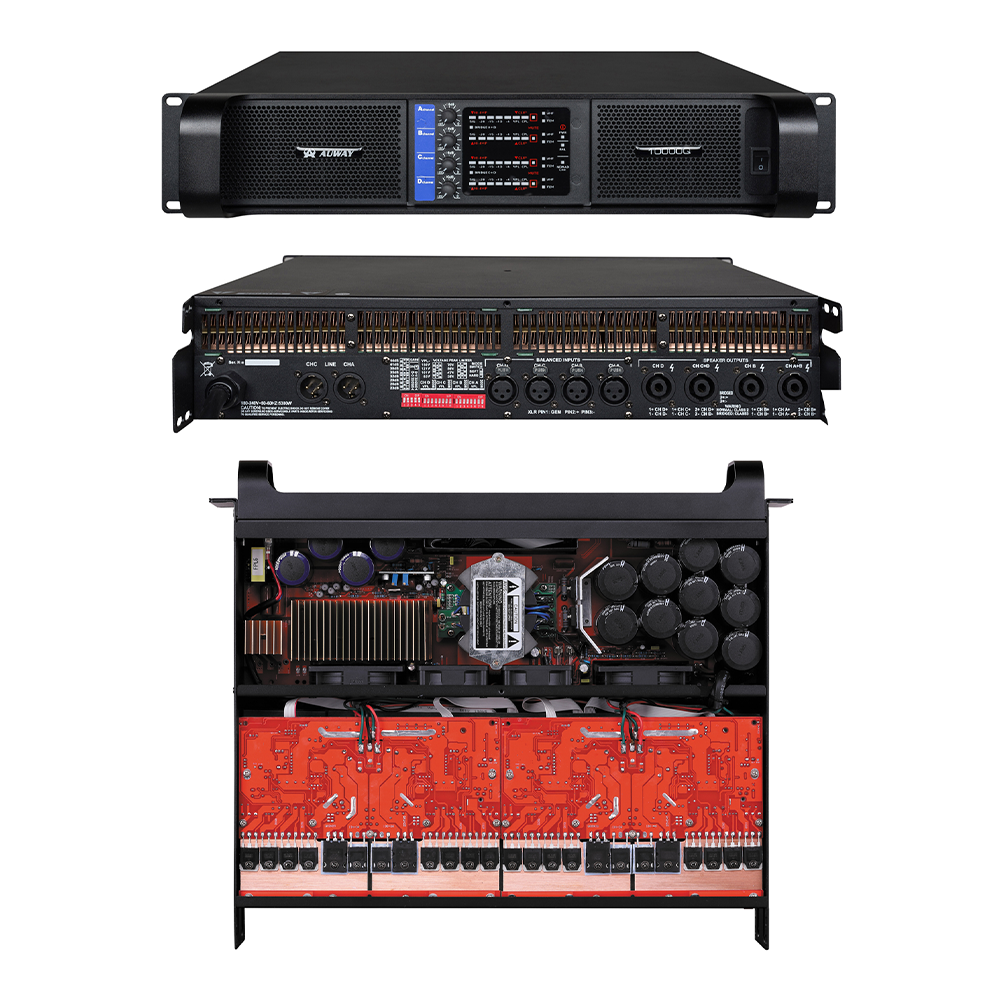

FP10000Q Professional 4-Channel Digital Amplifier

The FP10000Q 4-channel Digital Amplifier amplifier represents the pinnacle of professional audio amplification technology, delivering massive 2500W per channel at 4 ohms in an incredibly compact 2U rack-mount chassis. Designed for touring professionals, large-scale installations, and premium sound reinforcement.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • FP10000Q

  • AUWAY

The FP10000Q 4-channel Digital Amplifier represents the pinnacle of professional audio amplification technology, delivering massive 2500W per channel at 4 ohms in an incredibly compact 2U rack-mount chassis. Designed for touring professionals, large-scale installations, and premium sound reinforcement, this ultra-high-power Class TD amplifier combines brute force with audiophile-grade precision, making it the ultimate choice for demanding live sound, festival systems, and high-end permanent installations.


Key Features

1.Unmatched Power Density

  • 4x2500W @ 4Ω (4x1400W @ 8Ω) with bridging capability for 5000W @ 8Ω mono

  • Next-generation Class TD topology with 93% efficiency for cooler operation and lower power consumption

  • Auto-switching universal power supply (90V-260V) for global touring compatibility

2.Reference-Class Audio Performance

  • <0.03% THD across full bandwidth for studio-monitor-level transparency

  • 20Hz-50kHz (±0.5dB) frequency response for extended sub-bass and ultra-high definition

3.Pro Touring Construction

  • Military-grade components for maximum reliability under extreme conditions

  • Intelligent multi-stage cooling with zero-noise fan mode in low-demand situations

  • Reinforced steel chassis with shock-absorbing mounting points for road-ready durability

4.Smart Connectivity & Protection

  • Dual-redundant power inputs with auto-failover protection

  • Ethernet, USB, and wireless control for remote system management

  • 12-stage protection system including arc detection, impedance monitoring, and predictive thermal management


Application

  • Mega Events & Festival System

  • Powering large line arrays in stadiums, festivals, and outdoor concerts

  • Ideal for distributed amplification in delay towers and front-fill systems


High-End Installation Venues

  • Premium nightclubs, performing arts centers, and worship facilities

  • Multizone convention centers requiring ultra-reliable, high-density amplification

  • Broadcast & Production Trucks

  • Critical monitoring systems for OB vans and mobile production units

  • Silent operation essential for broadcast environments


Why Choose the FP10000Q?

✔ Industry-Leading Power Density - More watts per rack space than any competitor
✔ Audiophile Sound Meets Touring Toughness - Reference quality for critical listening environments
✔ Global Voltage Intelligence - Automatically adapts to any power grid worldwide


Specification

ITEM (Model)

FP10000Q

8Ω Stereo Power(RMS)

4x1350W

4Ω Stereo Power(RMS)

4x2100W

8Ω Bridge Power(RMS)

2x4200W

4Ω Bridge Power(RMS)

2x5000W

Channels

4

Output Circuit

Class TD

Frequency Response(+0/-0.3dB,1W/8Ω)

20Hz-34KHz

THD 20Hz-20KHz  for 1W

<0.1%

Signal-to-Noise Ratio

>112 dBA

Channel separation(Crosstalk)at 1 KHz

>70 dB

Input Connectors (per channel)

3-pin XLR,electronically balanced

Output Connectors (per channel)

Binding Posts 2-pole

TourClass Protection

Short circuit,DC voltage,turn-on/off transient,current inrush

Power AC

220V~240V

Input impedance

20 Kohms

Level adjustment(per ch.)

Front-panel potentiometer,31 position detended from -inf to 0 dB

Packing Size

570x580x158mm, 1pcs/carton

Net Weight(KG)

13

Gross Weight(KG)

15
